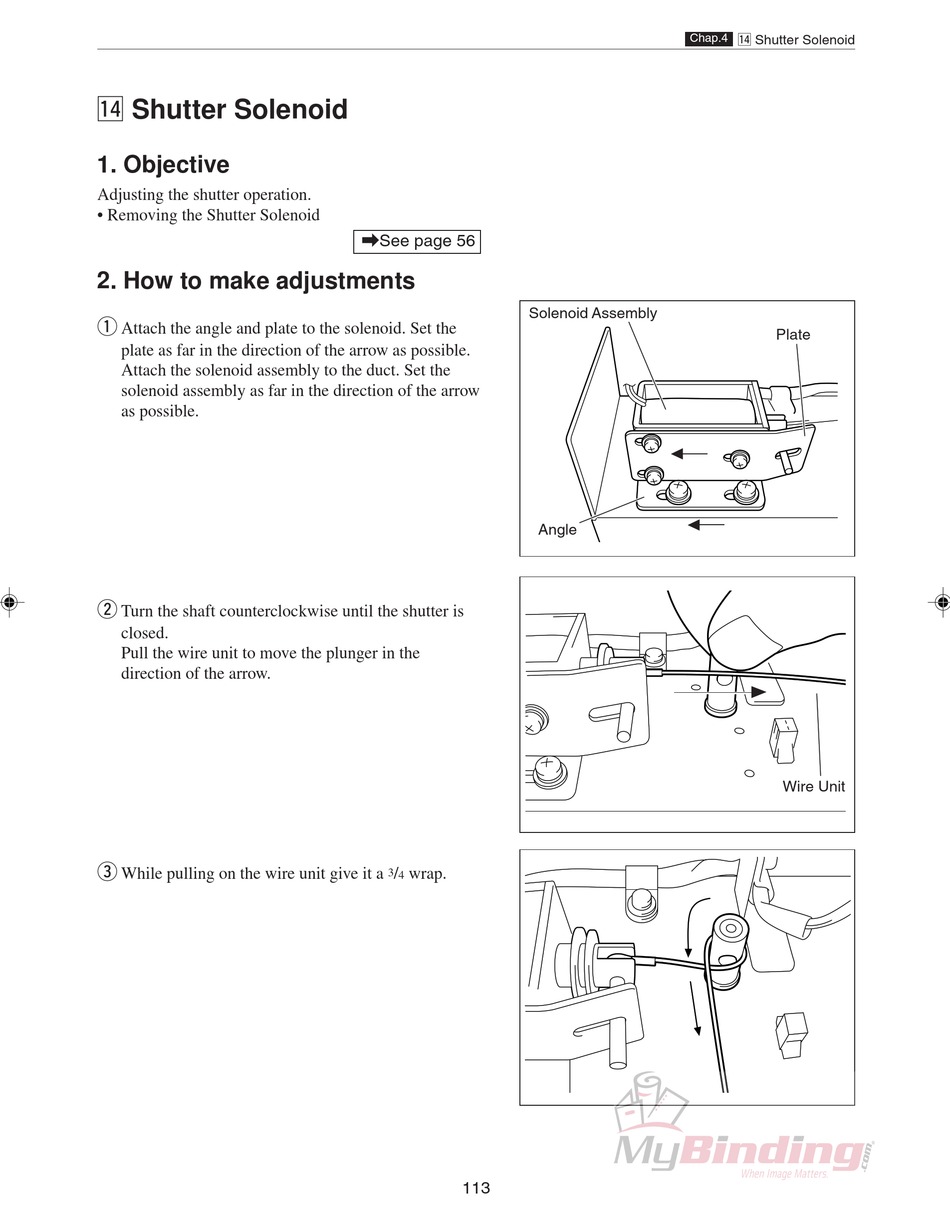

⁄4 Shutter Solenoid

1. Objective

Adjusting the shutter operation.
• Removing the Shutter Solenoid

2. How to make adjustments

q
Attach the angle and plate to the solenoid. Set the
plate as far in the direction of the arrow as possible.
Attach the solenoid assembly to the duct. Set the
solenoid assembly as far in the direction of the arrow
as possible.
w
Turn the shaft counterclockwise until the shutter is
closed.
Pull the wire unit to move the plunger in the
direction of the arrow.
e
While pulling on the wire unit give it a
\See page 56
/ wrap.
3
4
113
Solenoid Assembly
Angle
⁄4 Shutter Solenoid
Chap.4
Plate
Wire Unit
