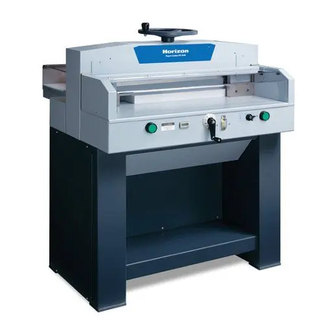

- Page 1 Standard PC-64 II Paper Cutter Instruction Manual Provided By http://www.MyBinding.com http://www.MyBindingBlog.com...
-
Page 3: Paper Cutter
PC-64II PAPER CUTTER Important Information - This manual is designed to help you to install, operate and maintain Paper Cutter, PC- 64II. Read, understand and keep this manual in a safe and convenient place. - Do not operate PC-64II until you read and understand the instructions in this manual. - Horizon International Inc. - Page 7 Knife Lamp Left Small Cover...
-
Page 9: Additional Information
ADDITIONAL INFORMATION IMPORTANT: - If the front cover is opened while the knife - Knife will come to a stop instantly when is moving, the buzzer beeps and the knife one or both buttons are released before knife lamp lights. reaches its lowest point. - Page 11 Cut Button A...
- Page 13 2. Turn on power. - Cycle knife by depressing cut buttons A and B separately with the interval of 0.5 seconds or more to return the knife to the home position. (Fig. 4-5)
- Page 16 Cut Button A...
- Page 19 left...
- Page 20 Table Fix Bolt Back Table Table Fix Bolt Backgauge Screw Hand Wheel Backgauge Position the back Handle Shaft table so that the tip of this screw hits against the casting frame. - Side Guide (C) on front table should be aligned with side guide (B) on back table.
- Page 21 Power 120V 60Hz 14A 220V 50Hz 5.6A 220V 60Hz 6.8A 240V 50Hz 5.9A Power Consumption 1.1kw Max. Machine Dimensions 990 mm (W) (38.9") 1120 mm (D) (44.1") 1280 mm (H) (50.4") Distance from floor up 900 mm (35.4") to table top Machine Weight 290 kg (638 lb) Other Features...
