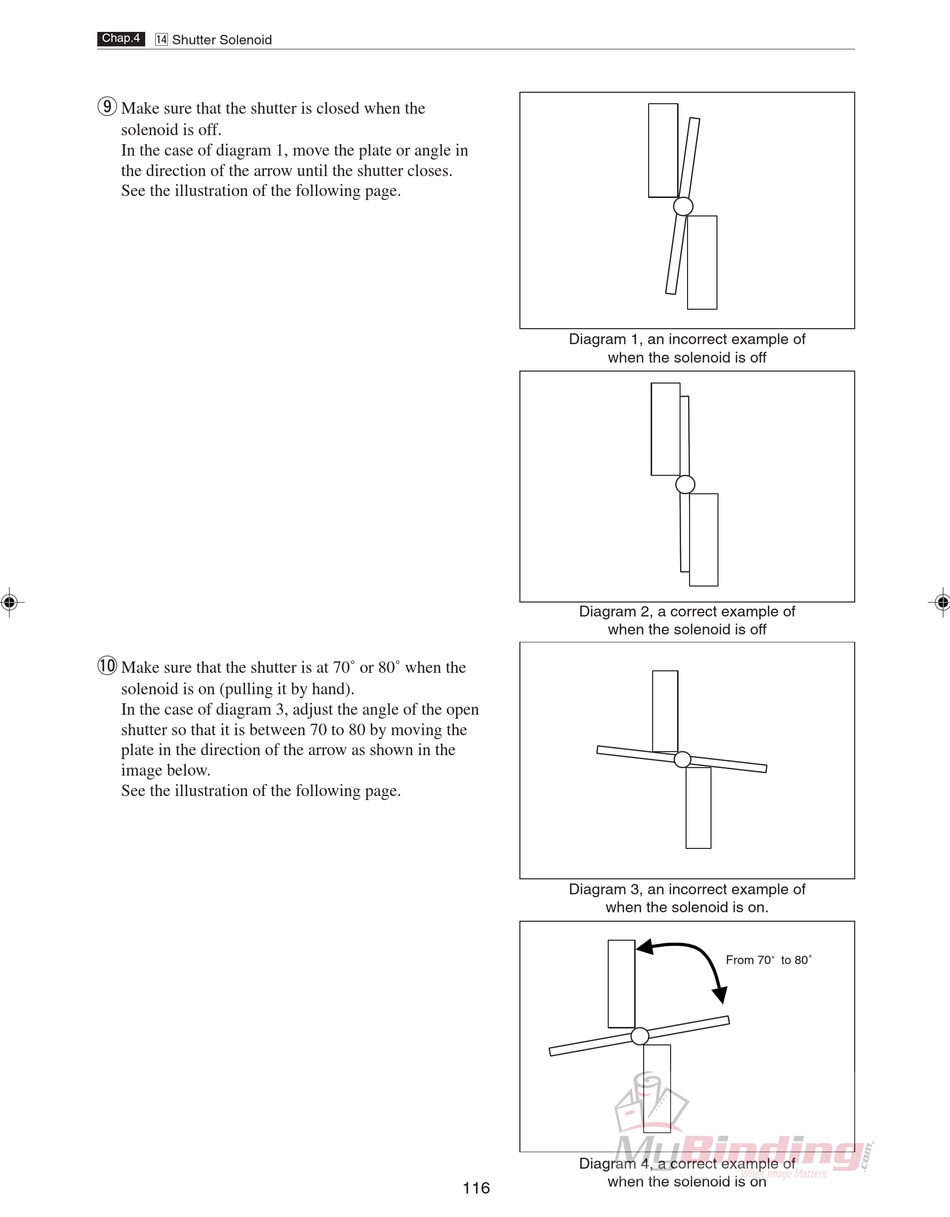

⁄4 Shutter Solenoid
Chap.4
o
Make sure that the shutter is closed when the
solenoid is off.
In the case of diagram 1, move the plate or angle in
the direction of the arrow until the shutter closes.
See the illustration of the following page.
!0
Make sure that the shutter is at 70˚ or 80˚ when the
solenoid is on (pulling it by hand).
In the case of diagram 3, adjust the angle of the open
shutter so that it is between 70 to 80 by moving the
plate in the direction of the arrow as shown in the
image below.
See the illustration of the following page.
Diagram 1, an incorrect example of
when the solenoid is off
Diagram 2, a correct example of
when the solenoid is off
Diagram 3, an incorrect example of
when the solenoid is on.
Diagram 4, a correct example of
when the solenoid is on
116
From 70 ˚ to 80˚
