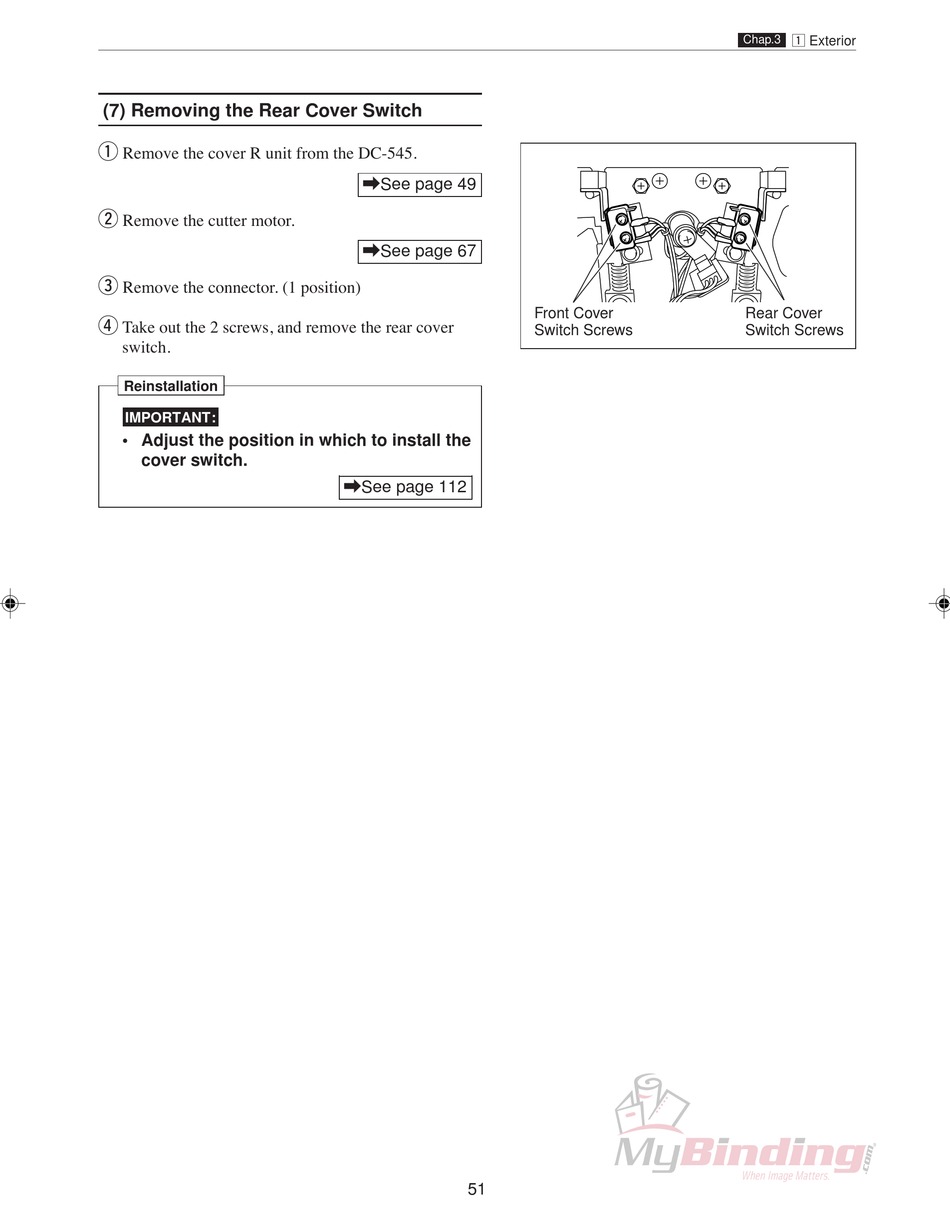

(7) Removing the Rear Cover Switch

q
Remove the cover R unit from the DC-545.
w
Remove the cutter motor.
e
Remove the connector. (1 position)
r
Take out the 2 screws, and remove the rear cover
switch.
Reinstallation
IMPORTANT:
• Adjust the position in which to install the
cover switch.
\See page 49
\See page 67
\See page 112
51
Front Cover
Switch Screws
z Exterior
Chap.3
Rear Cover
Switch Screws
