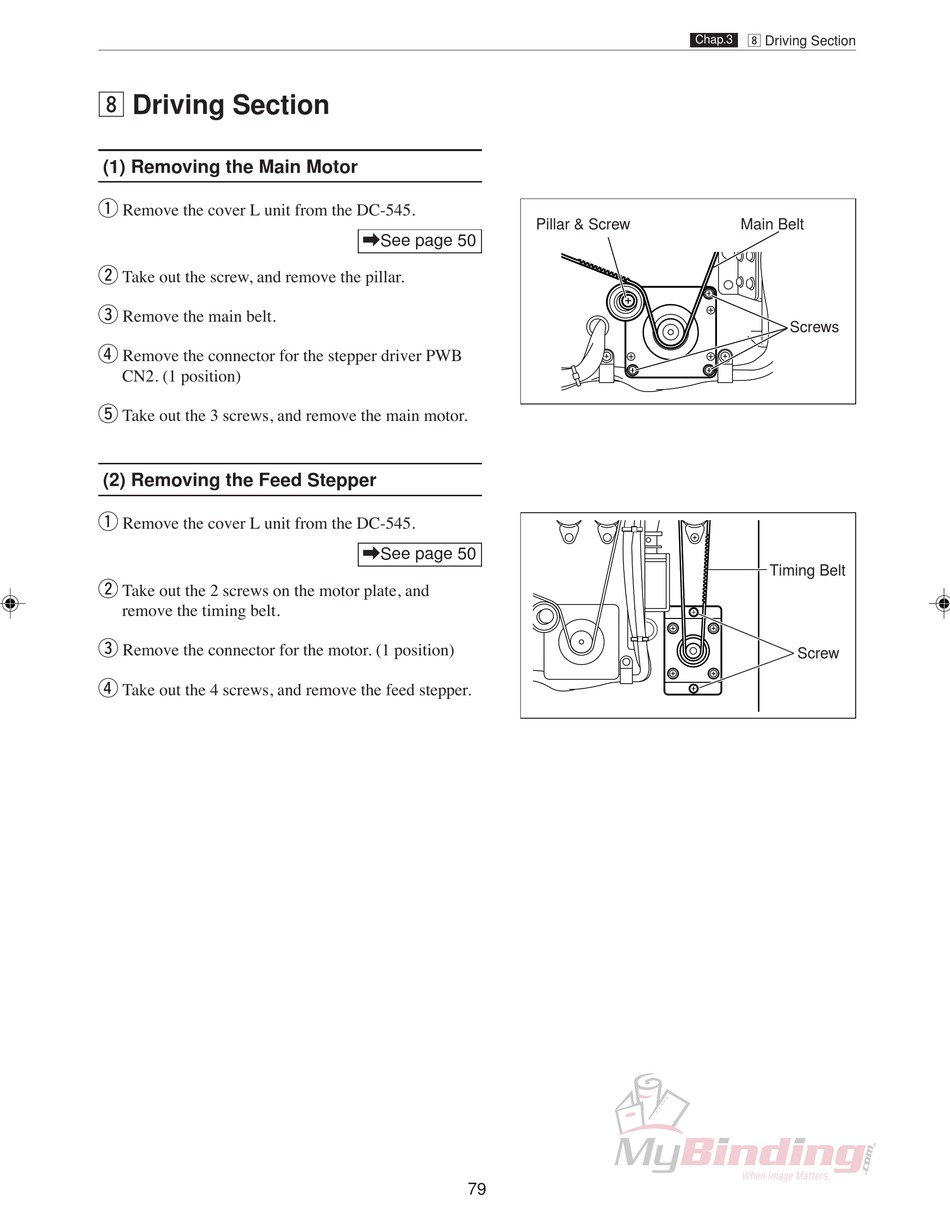

, Driving Section

(1) Removing the Main Motor

q
Remove the cover L unit from the DC-545.
w
Take out the screw, and remove the pillar.
e
Remove the main belt.
r
Remove the connector for the stepper driver PWB
CN2. (1 position)
t
Take out the 3 screws, and remove the main motor.

(2) Removing the Feed Stepper

q
Remove the cover L unit from the DC-545.
w
Take out the 2 screws on the motor plate, and
remove the timing belt.
e
Remove the connector for the motor. (1 position)
r
Take out the 4 screws, and remove the feed stepper.
\See page 50
\See page 50
79
Pillar & Screw

, Driving Section

Chap.3
Main Belt
Screws
Timing Belt
Screw
