. Electric Section
Chap.3

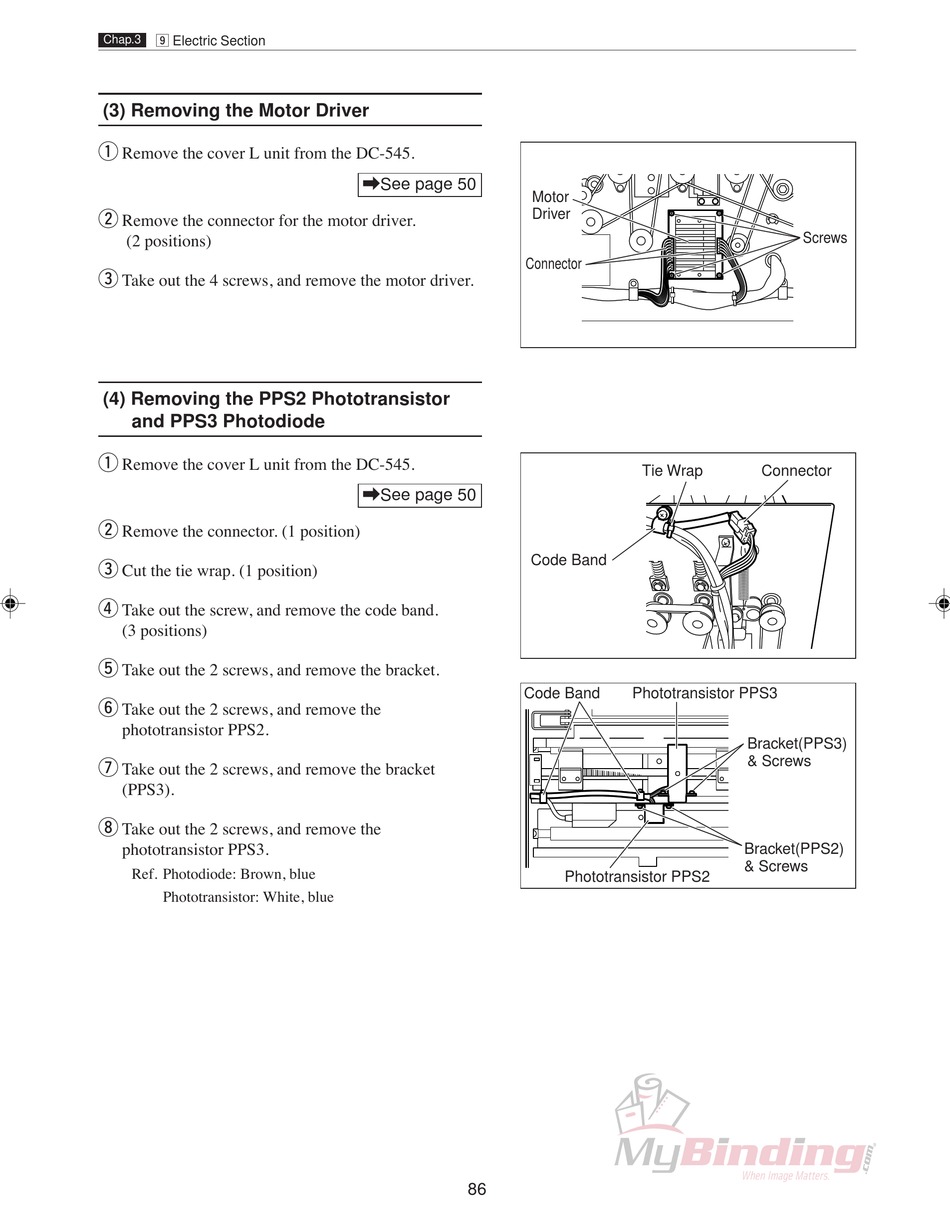

(3) Removing the Motor Driver

q
Remove the cover L unit from the DC-545.
w
Remove the connector for the motor driver.
(2 positions)
e
Take out the 4 screws, and remove the motor driver.
(4) Removing the PPS2 Phototransistor
and PPS3 Photodiode
q
Remove the cover L unit from the DC-545.
w
Remove the connector. (1 position)
e
Cut the tie wrap. (1 position)
r
Take out the screw, and remove the code band.
(3 positions)
t
Take out the 2 screws, and remove the bracket.
y
Take out the 2 screws, and remove the
phototransistor PPS2.
u
Take out the 2 screws, and remove the bracket
(PPS3).
i
Take out the 2 screws, and remove the
phototransistor PPS3.
Ref. Photodiode: Brown, blue
Phototransistor: White, blue
\See page 50
\See page 50
86
Motor
Driver
Connector
Tie Wrap
Code Band
Code Band Phototransistor PPS3
Phototransistor PPS2
Screws
Connector
Bracket(PPS3)
& Screws
Bracket(PPS2)
& Screws
