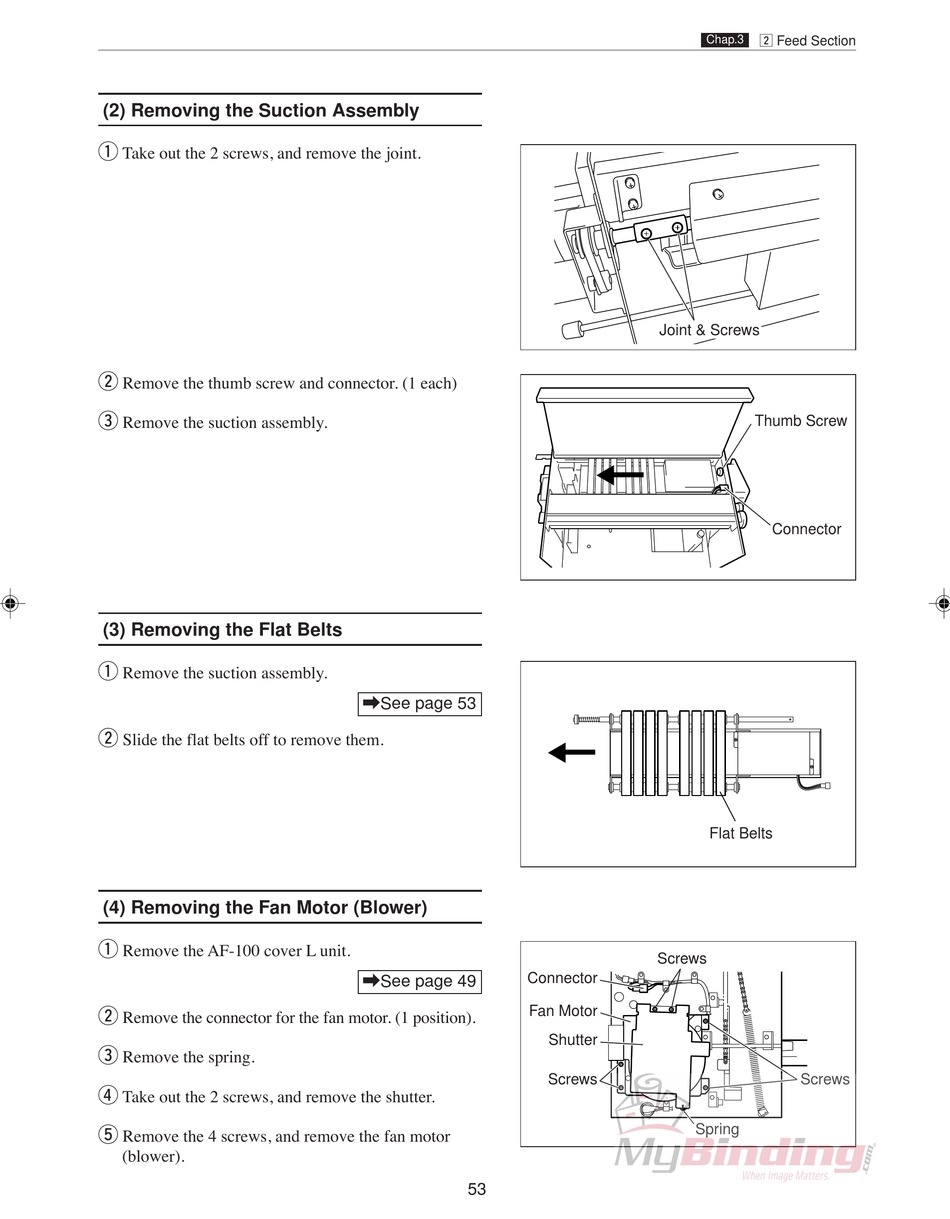

(2) Removing the Suction Assembly

q
Take out the 2 screws, and remove the joint.
w
Remove the thumb screw and connector. (1 each)
e
Remove the suction assembly.

(3) Removing the Flat Belts

q
Remove the suction assembly.
w
Slide the flat belts off to remove them.

(4) Removing the Fan Motor (Blower)

q
Remove the AF-100 cover L unit.
w
Remove the connector for the fan motor. (1 position).
e
Remove the spring.
r
Take out the 2 screws, and remove the shutter.
t
Remove the 4 screws, and remove the fan motor
(blower).
\See page 53
\See page 49
53
Joint & Screws
Screws
Connector
Fan Motor
Shutter
Screws
x Feed Section
Chap.3
Thumb Screw
Connector
Flat Belts
Screws
Spring
