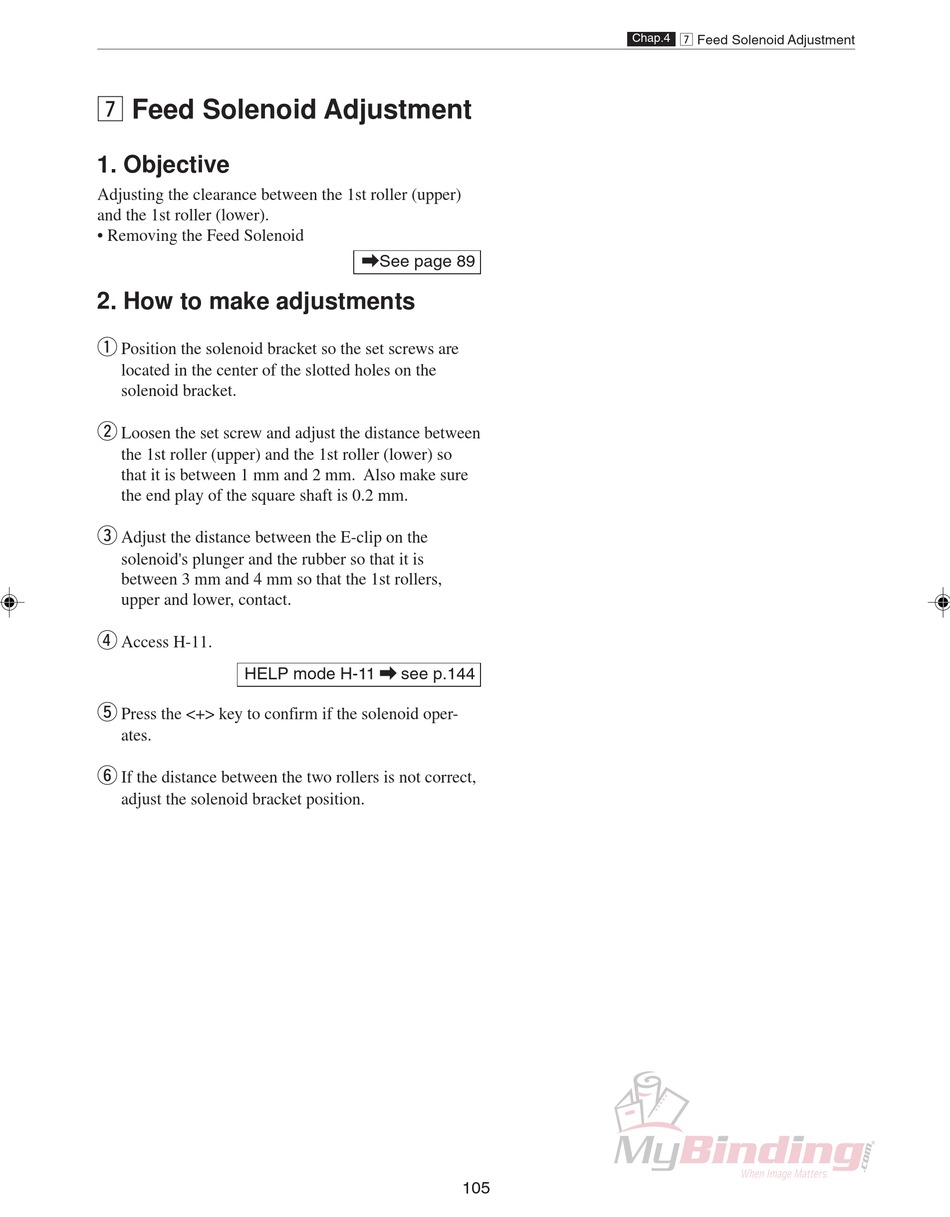

m Feed Solenoid Adjustment

1. Objective

Adjusting the clearance between the 1st roller (upper)
and the 1st roller (lower).
• Removing the Feed Solenoid

2. How to make adjustments

q
Position the solenoid bracket so the set screws are
located in the center of the slotted holes on the
solenoid bracket.
w
Loosen the set screw and adjust the distance between
the 1st roller (upper) and the 1st roller (lower) so
that it is between 1 mm and 2 mm. Also make sure
the end play of the square shaft is 0.2 mm.
e
Adjust the distance between the E-clip on the
solenoid's plunger and the rubber so that it is
between 3 mm and 4 mm so that the 1st rollers,
upper and lower, contact.
r
Access H-11.
HELP mode H-11 \ see p.144
t
Press the <+> key to confirm if the solenoid oper-
ates.
y
If the distance between the two rollers is not correct,
adjust the solenoid bracket position.
\See page 89
