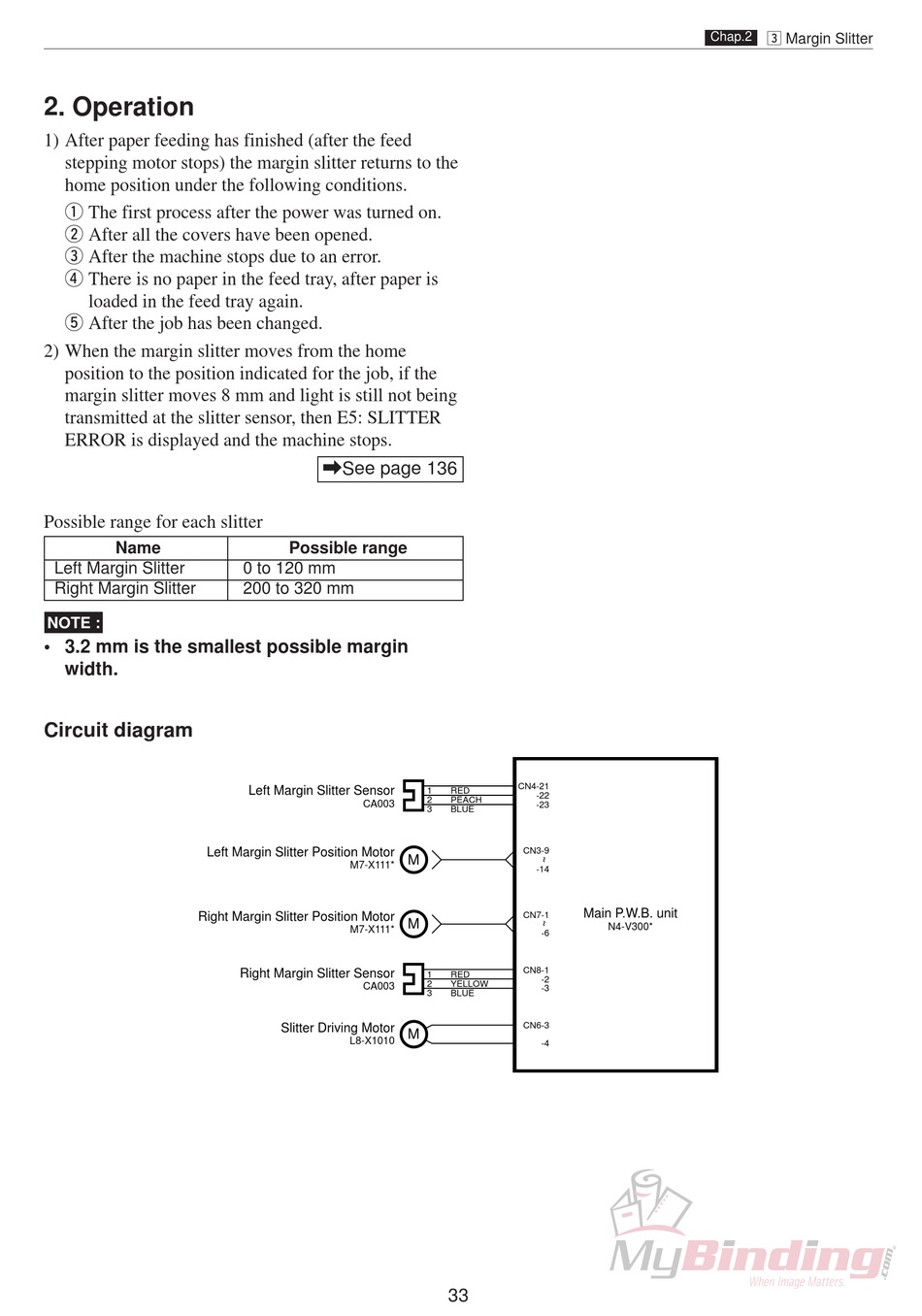

2. Operation

1) After paper feeding has finished (after the feed
stepping motor stops) the margin slitter returns to the
home position under the following conditions.
q The first process after the power was turned on.
w After all the covers have been opened.
e After the machine stops due to an error.
r There is no paper in the feed tray, after paper is
loaded in the feed tray again.
t After the job has been changed.
2) When the margin slitter moves from the home
position to the position indicated for the job, if the
margin slitter moves 8 mm and light is still not being
transmitted at the slitter sensor, then E5: SLITTER
ERROR is displayed and the machine stops.
Possible range for each slitter
Name
Left Margin Slitter
Right Margin Slitter
NOTE :
• 3.2 mm is the smallest possible margin
width.
Circuit diagram
Left Margin Slitter Position Motor
Right Margin Slitter Position Motor
\See page 136
Possible range
0 to 120 mm
200 to 320 mm
Left Margin Slitter Sensor
CA003
M
M7-X111*
M
M7-X111*
Right Margin Slitter Sensor
CA003
Slitter Driving Motor
M
L8-X1010
CN4-21
1 RED
-22
2 PEACH
-23
3 BLUE
CN3-9
-14
Main P.W.B. unit
CN7-1
-6
CN8-1
1
RED
-2
2 YELLOW
-3
3 BLUE
CN6-3
-4
33
c Margin Slitter
Chap.2
N4-V300*
