, Driving Section
Chap.3

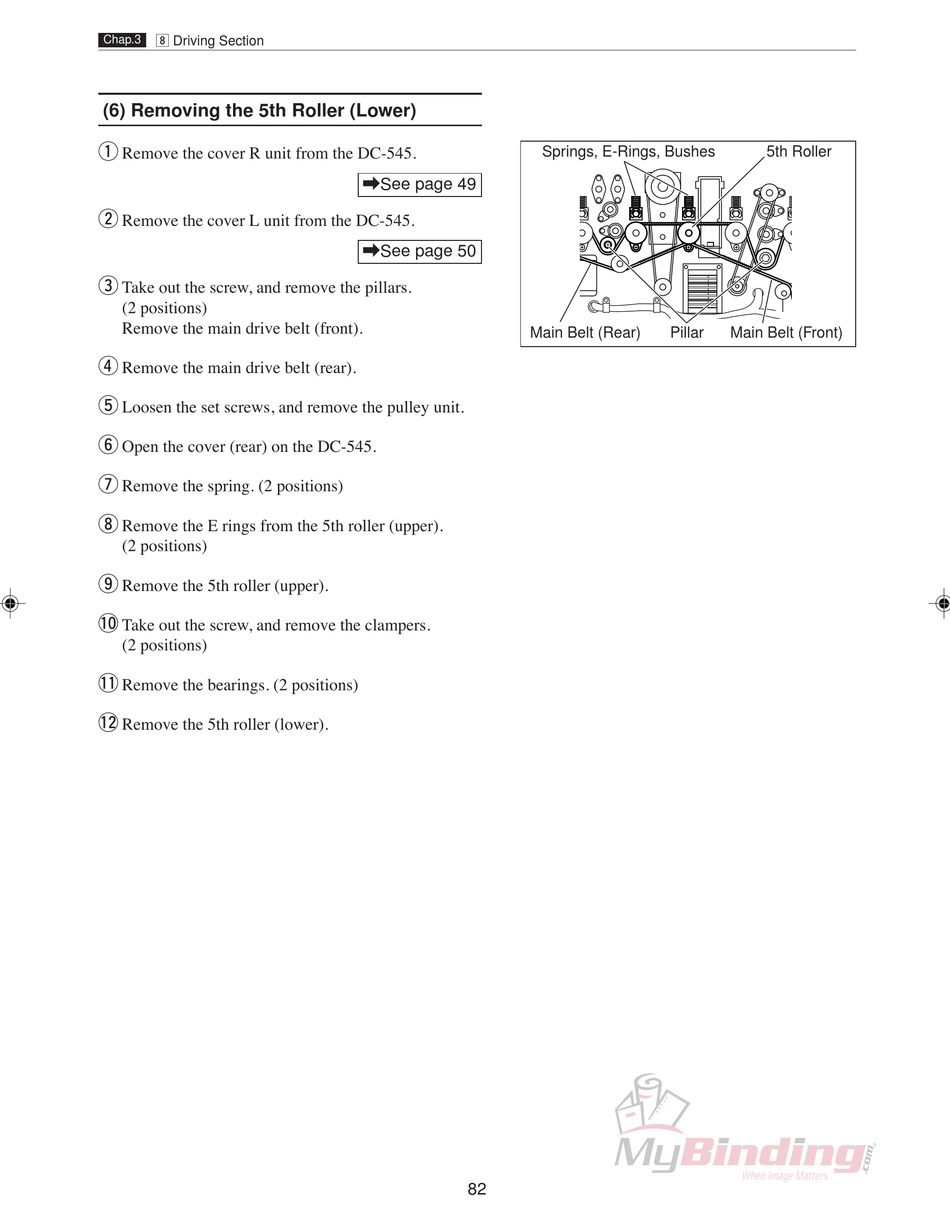

(6) Removing the 5th Roller (Lower)

q
Remove the cover R unit from the DC-545.
w
Remove the cover L unit from the DC-545.
e
Take out the screw, and remove the pillars.
(2 positions)
Remove the main drive belt (front).
r
Remove the main drive belt (rear).
t
Loosen the set screws, and remove the pulley unit.
y
Open the cover (rear) on the DC-545.
u
Remove the spring. (2 positions)
i
Remove the E rings from the 5th roller (upper).
(2 positions)
o
Remove the 5th roller (upper).
!0
Take out the screw, and remove the clampers.
(2 positions)
!1
Remove the bearings. (2 positions)
!2
Remove the 5th roller (lower).
\See page 49
\See page 50
82
Springs, E-Rings, Bushes
Main Belt (Rear) Pillar
5th Roller
Main Belt (Front)
