, Main Drive

Chap.2

, Main Drive

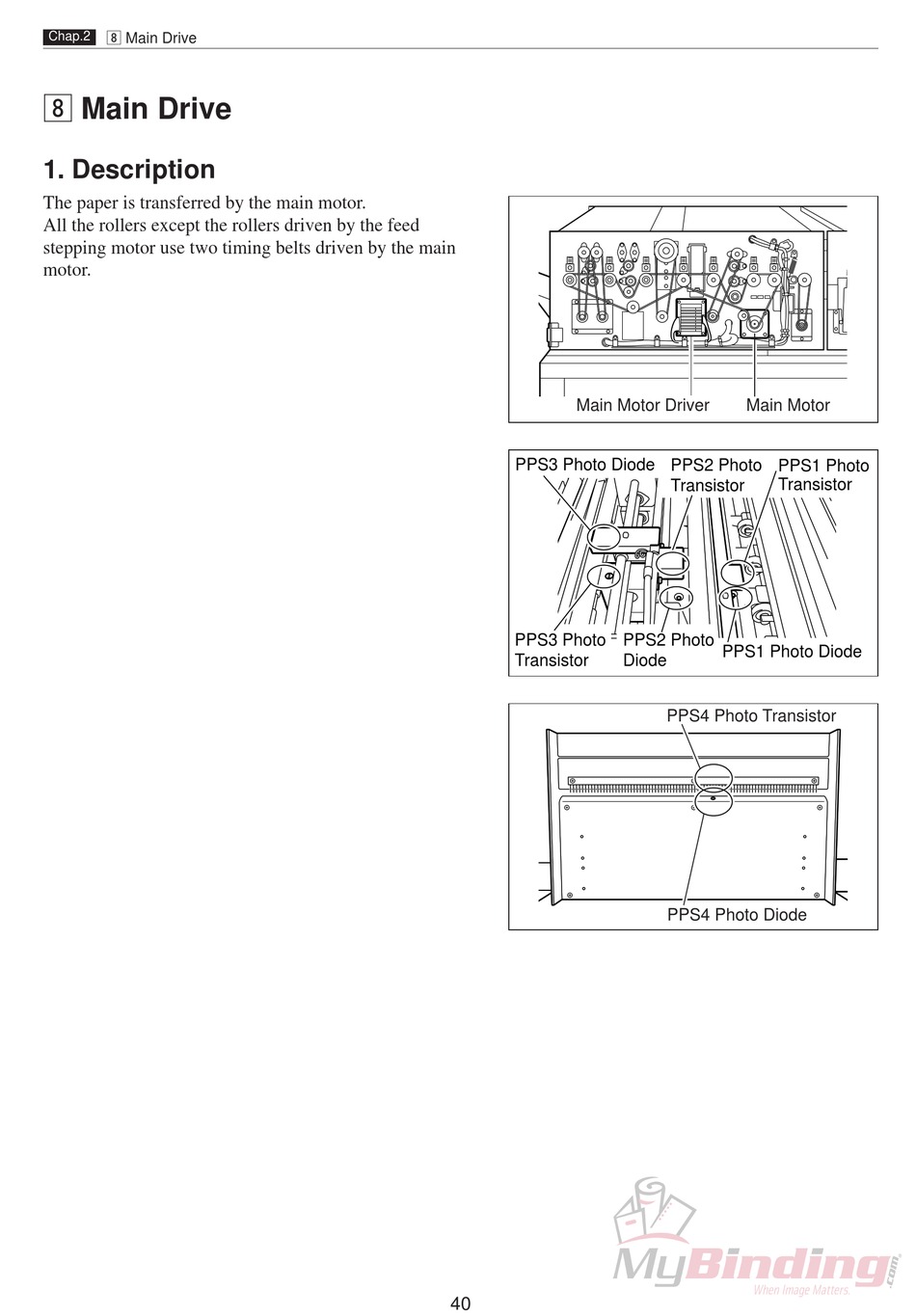

1. Description

The paper is transferred by the main motor.
All the rollers except the rollers driven by the feed
stepping motor use two timing belts driven by the main
motor.
Main Motor Driver
PPS3 Photo Diode PPS2 Photo
PPS3 Photo PPS2 Photo
Transistor Diode
40
Main Motor
PPS1 Photo
Transistor
Transistor
PPS1 Photo Diode
PPS4 Photo Transistor
PPS4 Photo Diode
