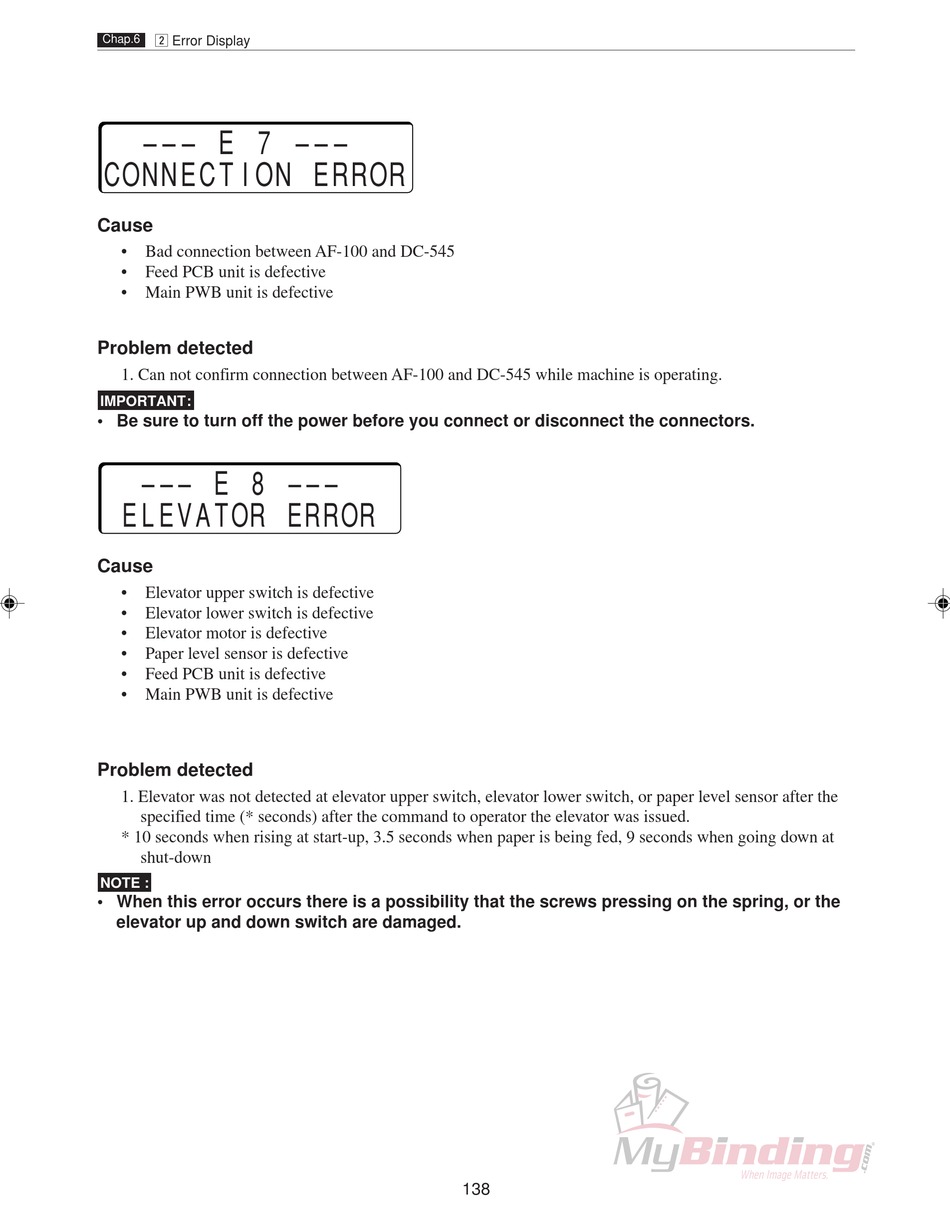

MyBinding DC-545HC Service Manual page 141

x Error Display
Chap.6
––– E 7 –––
CONNECTION ERROR
Cause
• Bad connection between AF-100 and DC-545
• Feed PCB unit is defective
• Main PWB unit is defective
Problem detected
1. Can not confirm connection between AF-100 and DC-545 while machine is operating.
IMPORTANT:
• Be sure to turn off the power before you connect or disconnect the connectors.
––– E 8 –––
ELEVATOR ERROR
Cause
• Elevator upper switch is defective
• Elevator lower switch is defective
• Elevator motor is defective
• Paper level sensor is defective
• Feed PCB unit is defective
• Main PWB unit is defective
Problem detected
1. Elevator was not detected at elevator upper switch, elevator lower switch, or paper level sensor after the
specified time (* seconds) after the command to operator the elevator was issued.
* 10 seconds when rising at start-up, 3.5 seconds when paper is being fed, 9 seconds when going down at
shut-down
NOTE :
• When this error occurs there is a possibility that the screws pressing on the spring, or the
elevator up and down switch are damaged.
138
