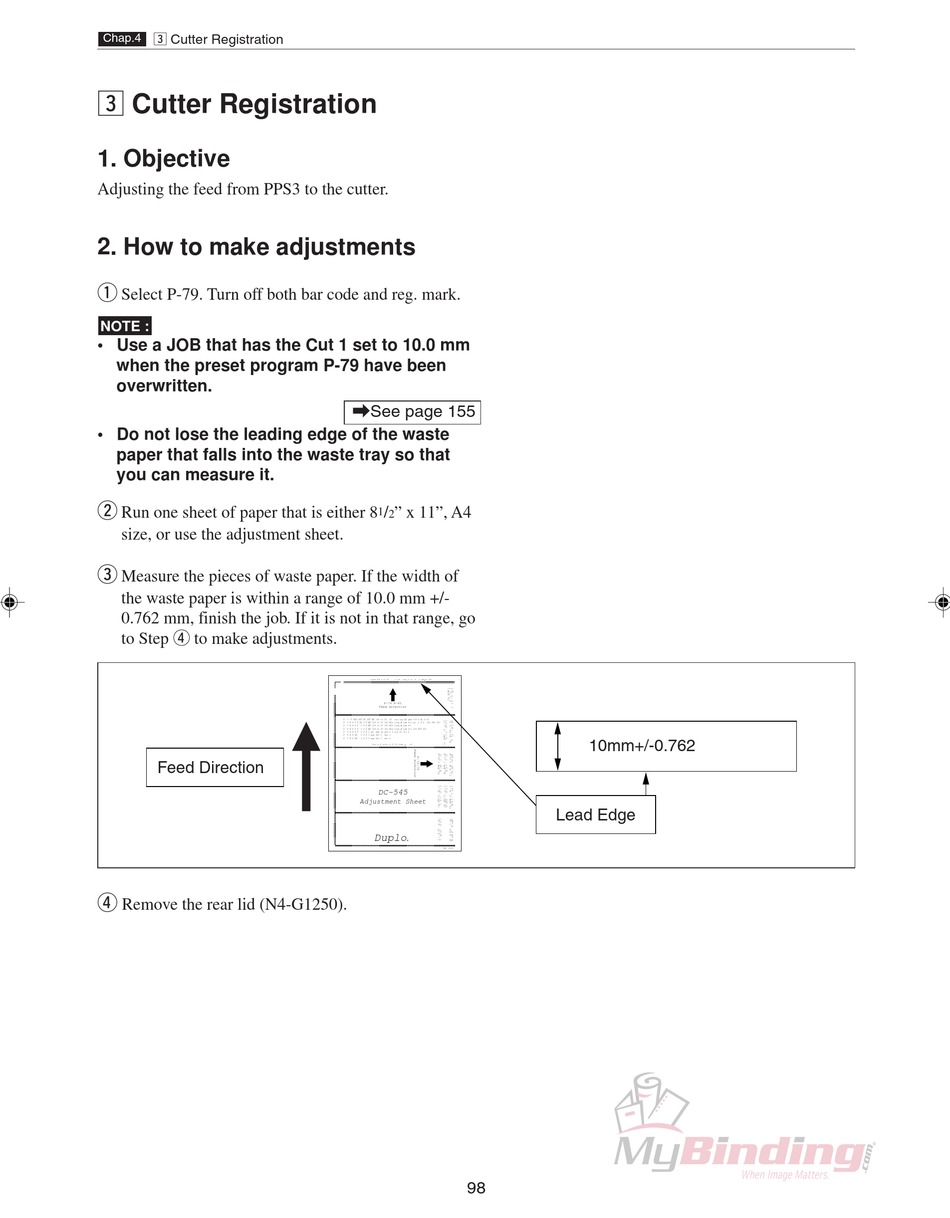

Chap.4 c Cutter Registration
c Cutter Registration

1. Objective

Adjusting the feed from PPS3 to the cutter.

2. How to make adjustments

q
Select P-79. Turn off both bar code and reg. mark.
NOTE :
• Use a JOB that has the Cut 1 set to 10.0 mm
when the preset program P-79 have been
overwritten.
• Do not lose the leading edge of the waste
paper that falls into the waste tray so that
you can measure it.
w
Run one sheet of paper that is either 8
size, or use the adjustment sheet.
e
Measure the pieces of waste paper. If the width of
the waste paper is within a range of 10.0 mm +/-
0.762 mm, finish the job. If it is not in that range, go
to Step r to make adjustments.
Feed Direction
r
Remove the rear lid (N4-G1250).
\See page 155
/ " x 11", A4
1
2
Lead Ed e P 79 L ft arg n P 8 1 mm 0 762
P-79 P-80
Feed direction
P 2 75 REG OFF BC OFF AF 100 to DC 45 oun ing Al gme t(O e By O e)
P 6 R G O F BC O F AF 100 to DC 545 Mou ting A igm nt( ne y O e ith OP2 SL)
P 7 R G O F C O F AF 100 to DC 545 Mou ting A igm nt
P 8 R G O F C O F AF 100 to DC 545 Mou ting A igm nt( ith OP2 SL)
P 9 R G O F C O F L ad dge Le gth & S ore Po iti n
P 9 R G ON C O F I age Shi t hec 1
P 0 R G ON C O F I age Shi t hec 2
Sco e P siti n P 79 104m 62
DC-545
Adjustment Sheet
Duplo
N4 2061
98
10mm+/-0.762
Lead Edge
