m Center Slitter Section
Chap.3

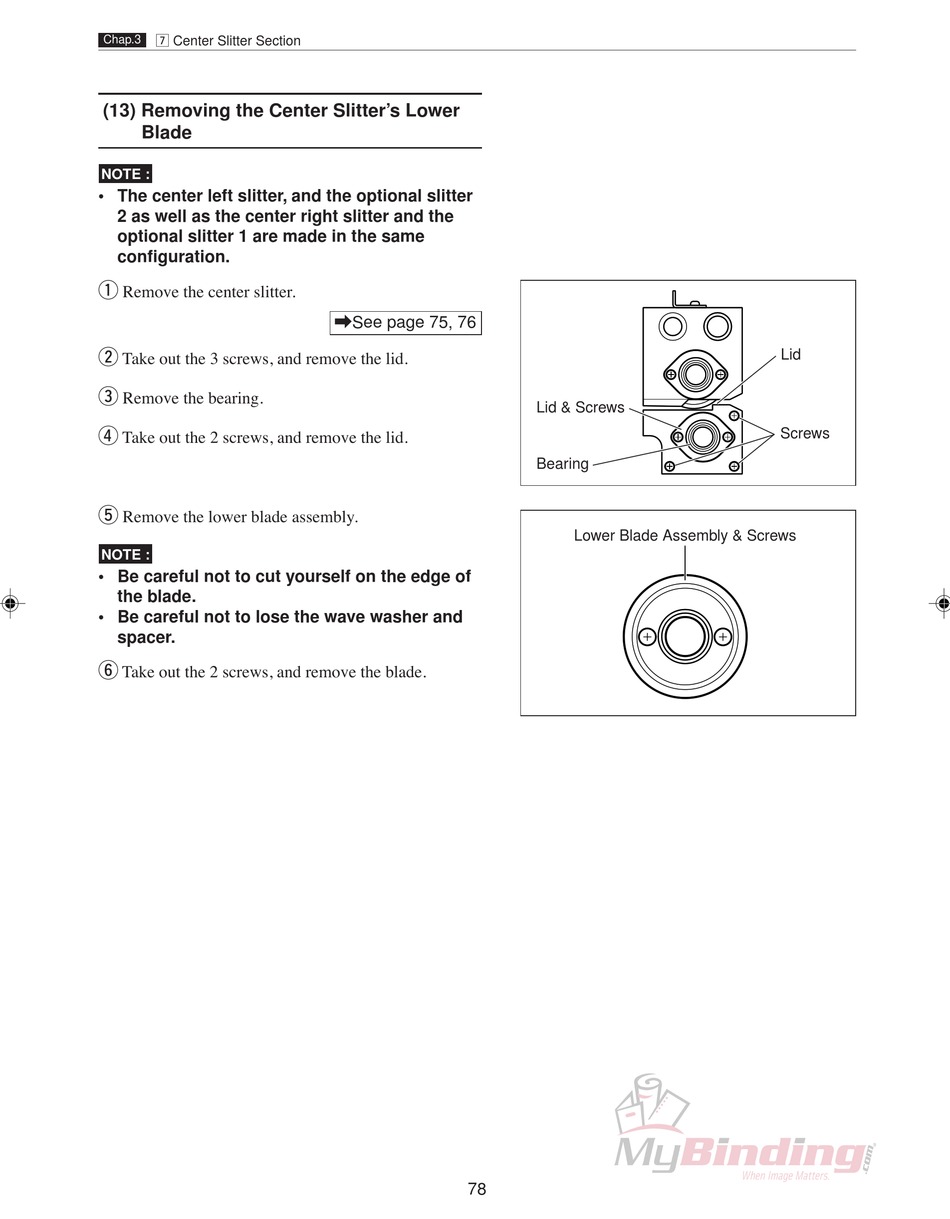

(13) Removing the Center Slitter's Lower
Blade
NOTE :
• The center left slitter, and the optional slitter
2 as well as the center right slitter and the
optional slitter 1 are made in the same
configuration.
q
Remove the center slitter.
w
Take out the 3 screws, and remove the lid.
e
Remove the bearing.
r
Take out the 2 screws, and remove the lid.
t
Remove the lower blade assembly.
NOTE :
• Be careful not to cut yourself on the edge of
the blade.
• Be careful not to lose the wave washer and
spacer.
y
Take out the 2 screws, and remove the blade.
\See page 75, 76
78
Lid & Screws
Bearing
Lower Blade Assembly & Screws
Lid
Screws
