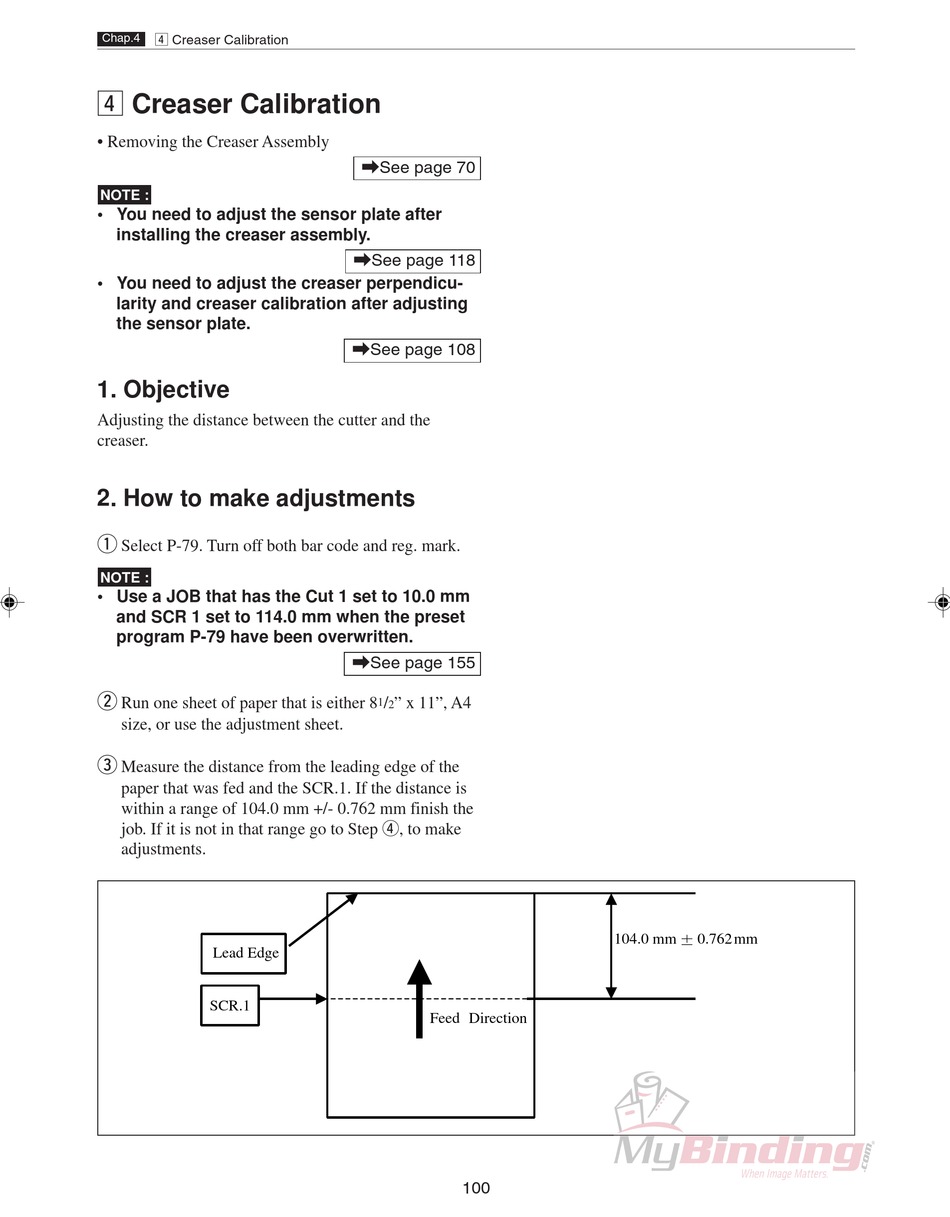

v Creaser Calibration
Chap.4
v Creaser Calibration
• Removing the Creaser Assembly
NOTE :
• You need to adjust the sensor plate after
installing the creaser assembly.
• You need to adjust the creaser perpendicu-
larity and creaser calibration after adjusting
the sensor plate.

1. Objective

Adjusting the distance between the cutter and the
creaser.

2. How to make adjustments

q
Select P-79. Turn off both bar code and reg. mark.
NOTE :
• Use a JOB that has the Cut 1 set to 10.0 mm
and SCR 1 set to 114.0 mm when the preset
program P-79 have been overwritten.
w
Run one sheet of paper that is either 8
size, or use the adjustment sheet.
e
Measure the distance from the leading edge of the
paper that was fed and the SCR.1. If the distance is
within a range of 104.0 mm +/- 0.762 mm finish the
job. If it is not in that range go to Step r, to make
adjustments.
Lead Edge
SCR.1
\See page 70
\See page 118
\See page 108
\See page 155
/ " x 11", A4
1
2
Feed Direction
100
104.0 mm 0.762 mm
