x Feed Section
Chap.3

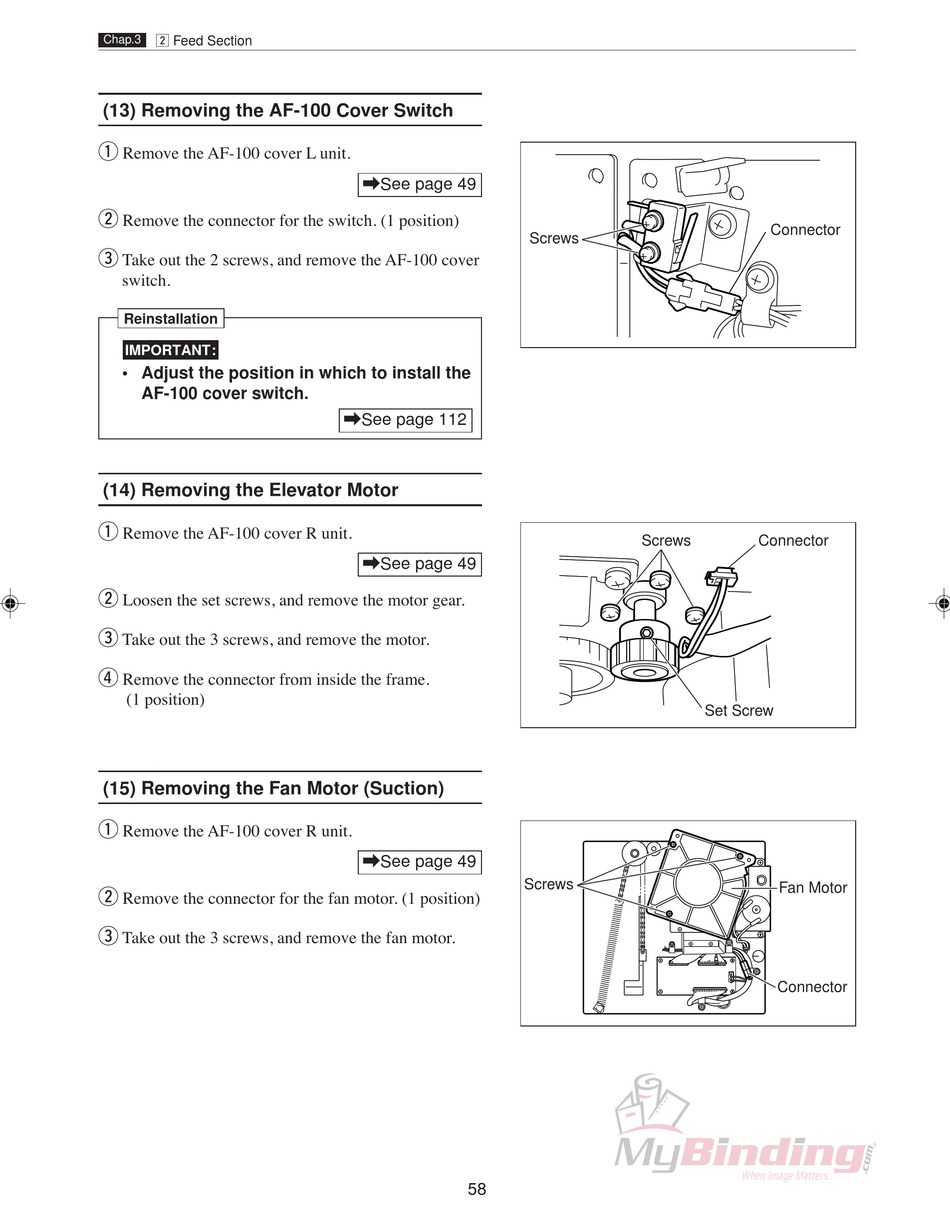

(13) Removing the AF-100 Cover Switch
q
Remove the AF-100 cover L unit.
w
Remove the connector for the switch. (1 position)
e
Take out the 2 screws, and remove the AF-100 cover
switch.
Reinstallation
IMPORTANT:
• Adjust the position in which to install the
AF-100 cover switch.

(14) Removing the Elevator Motor

q
Remove the AF-100 cover R unit.
w
Loosen the set screws, and remove the motor gear.
e
Take out the 3 screws, and remove the motor.
r
Remove the connector from inside the frame.
(1 position)

(15) Removing the Fan Motor (Suction)

q
Remove the AF-100 cover R unit.
w
Remove the connector for the fan motor. (1 position)
e
Take out the 3 screws, and remove the fan motor.
\See page 49
\See page 112
\See page 49
\See page 49
58
Screws
Screws
Screws
Connector
Connector
Set Screw
Fan Motor
Connector
