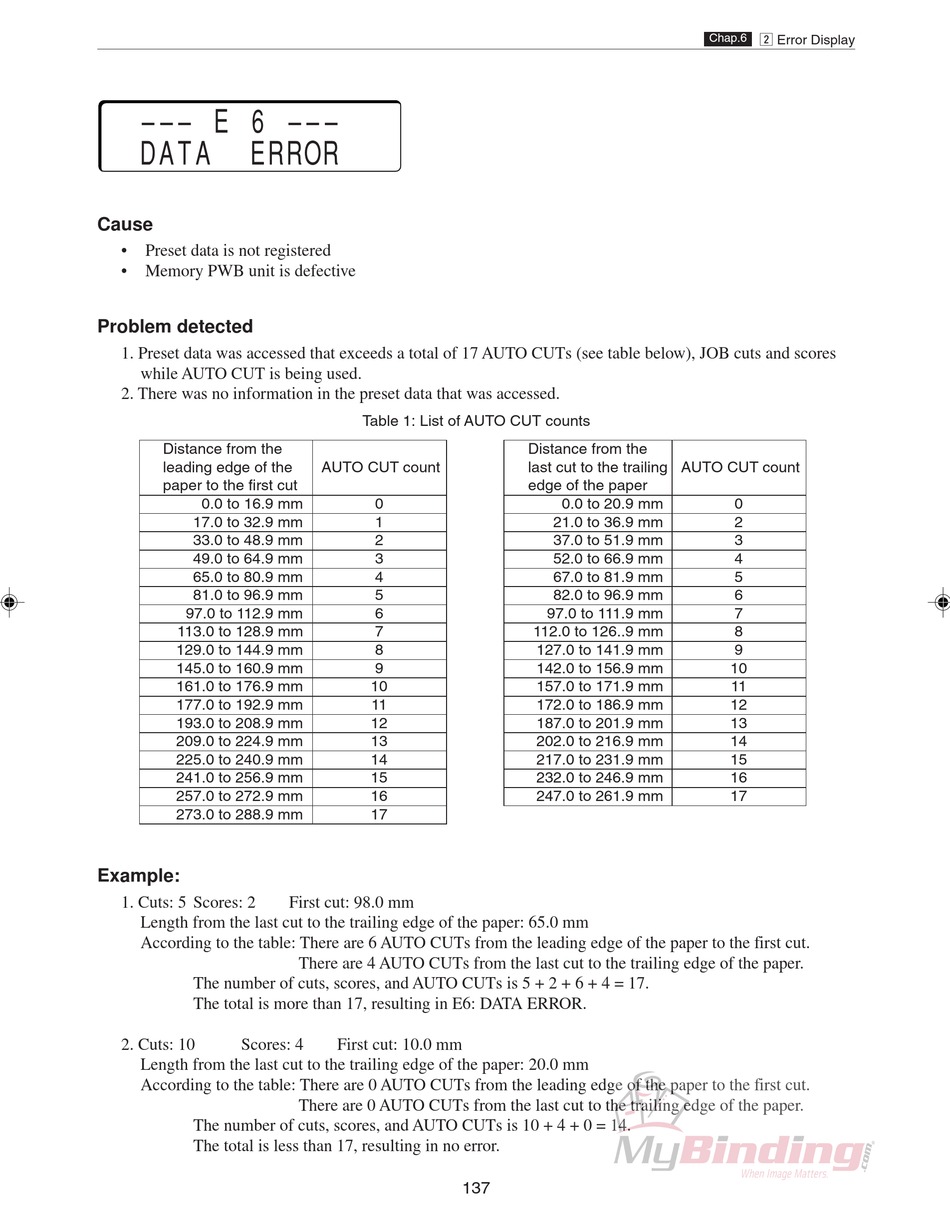

––– E 6 –––
DATA ERROR
Cause
• Preset data is not registered
• Memory PWB unit is defective
Problem detected
1. Preset data was accessed that exceeds a total of 17 AUTO CUTs (see table below), JOB cuts and scores
while AUTO CUT is being used.
2. There was no information in the preset data that was accessed.
Distance from the
leading edge of the
paper to the first cut
0.0 to 16.9 mm
17.0 to 32.9 mm
33.0 to 48.9 mm
49.0 to 64.9 mm
65.0 to 80.9 mm
81.0 to 96.9 mm
97.0 to 112.9 mm
113.0 to 128.9 mm
129.0 to 144.9 mm
145.0 to 160.9 mm
161.0 to 176.9 mm
177.0 to 192.9 mm
193.0 to 208.9 mm
209.0 to 224.9 mm
225.0 to 240.9 mm
241.0 to 256.9 mm
257.0 to 272.9 mm
273.0 to 288.9 mm
Example:
1. Cuts: 5 Scores: 2
Length from the last cut to the trailing edge of the paper: 65.0 mm
According to the table: There are 6 AUTO CUTs from the leading edge of the paper to the first cut.
The number of cuts, scores, and AUTO CUTs is 5 + 2 + 6 + 4 = 17.
The total is more than 17, resulting in E6: DATA ERROR.
2. Cuts: 10 Scores: 4
Length from the last cut to the trailing edge of the paper: 20.0 mm
According to the table: There are 0 AUTO CUTs from the leading edge of the paper to the first cut.
The number of cuts, scores, and AUTO CUTs is 10 + 4 + 0 = 14.
The total is less than 17, resulting in no error.
Table 1: List of AUTO CUT counts
AUTO CUT count
0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
First cut: 98.0 mm
There are 4 AUTO CUTs from the last cut to the trailing edge of the paper.
First cut: 10.0 mm
There are 0 AUTO CUTs from the last cut to the trailing edge of the paper.
Distance from the
last cut to the trailing
edge of the paper
0.0 to 20.9 mm
21.0 to 36.9 mm
37.0 to 51.9 mm
52.0 to 66.9 mm
67.0 to 81.9 mm
82.0 to 96.9 mm
97.0 to 111.9 mm
112.0 to 126..9 mm
127.0 to 141.9 mm
142.0 to 156.9 mm
157.0 to 171.9 mm
172.0 to 186.9 mm
187.0 to 201.9 mm
202.0 to 216.9 mm
217.0 to 231.9 mm
232.0 to 246.9 mm
247.0 to 261.9 mm
137
x Error Display
Chap.6
AUTO CUT count
0
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
