z Paper Feed Unit
Chap.2

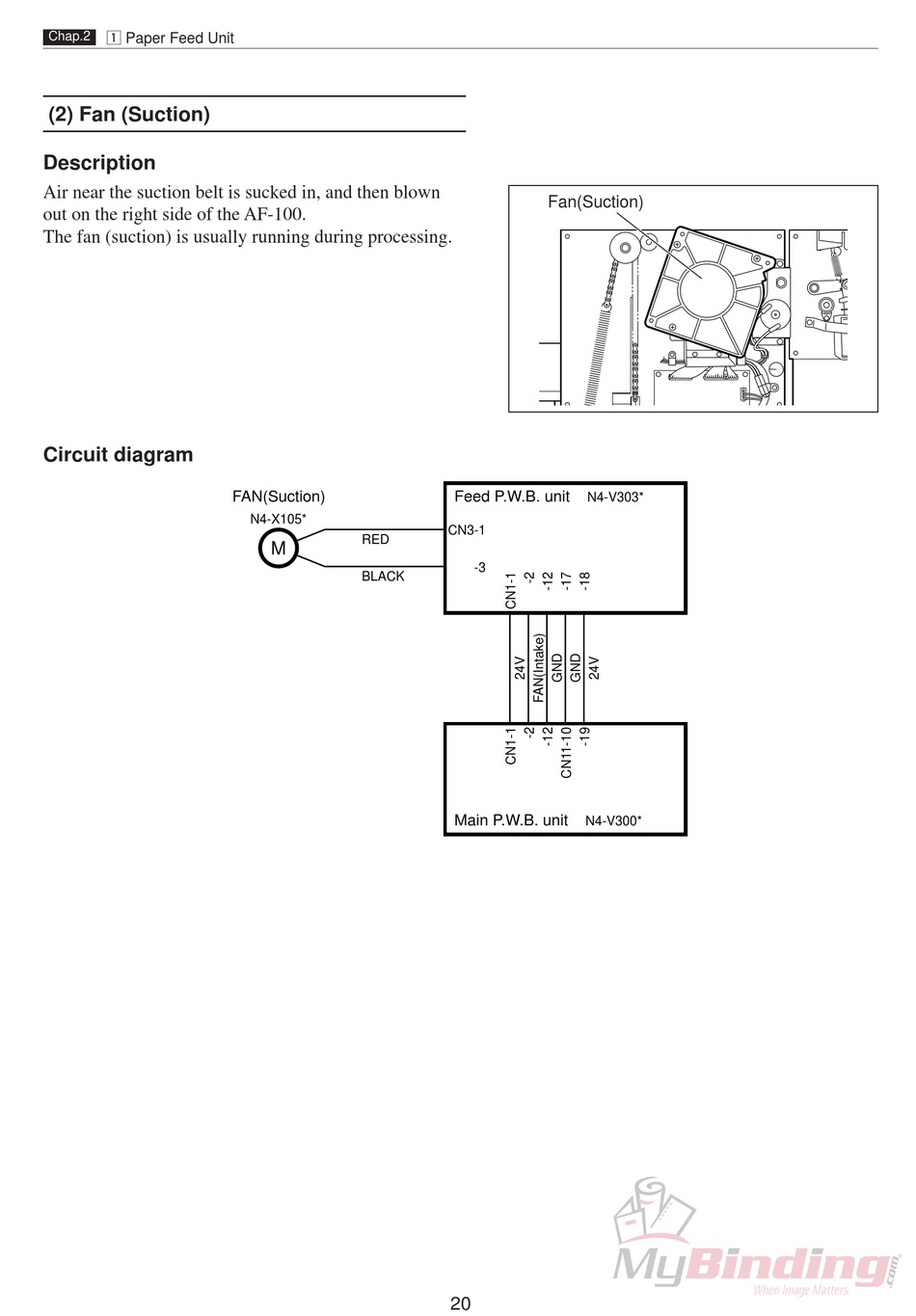

(2) Fan (Suction)

Description
Air near the suction belt is sucked in, and then blown
out on the right side of the AF-100.
The fan (suction) is usually running during processing.
Circuit diagram
FAN(Suction)
N4-X105*
RED
M
BLACK
Fan(Suction)
Feed P.W.B. unit
N4-V303*
CN3-1
-3
Main P.W.B. unit
N4-V300*
20
