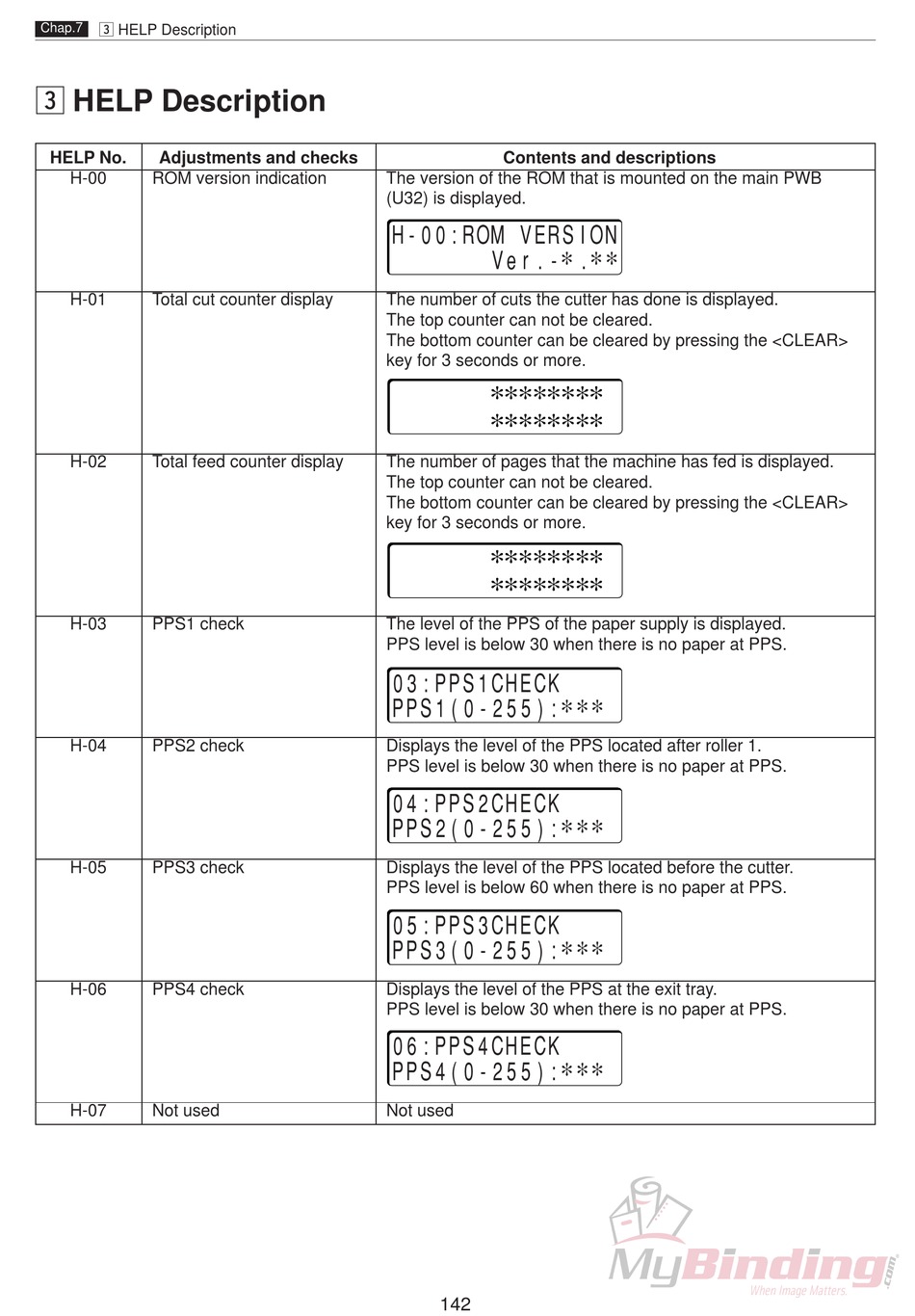

c HELP Description
Chap.7
c HELP Description
HELP No. Adjustments and checks
H-00 ROM version indication
H-01 Total cut counter display
H-02 Total feed counter display
H-03 PPS1 check
H-04 PPS2 check
H-05 PPS3 check
H-06 PPS4 check
H-07 Not used
Contents and descriptions
The version of the ROM that is mounted on the main PWB
(U32) is displayed.
H-00:ROM VERSION
Ver.-
The number of cuts the cutter has done is displayed.
The top counter can not be cleared.
The bottom counter can be cleared by pressing the <CLEAR>
key for 3 seconds or more.
∗∗∗∗∗∗∗∗
∗∗∗∗∗∗∗∗
The number of pages that the machine has fed is displayed.
The top counter can not be cleared.
The bottom counter can be cleared by pressing the <CLEAR>
key for 3 seconds or more.
∗∗∗∗∗∗∗∗
∗∗∗∗∗∗∗∗
The level of the PPS of the paper supply is displayed.
PPS level is below 30 when there is no paper at PPS.
03:PPS1CHECK
PPS1(0-255):
Displays the level of the PPS located after roller 1.
PPS level is below 30 when there is no paper at PPS.
04:PPS2CHECK
PPS2(0-255):
Displays the level of the PPS located before the cutter.
PPS level is below 60 when there is no paper at PPS.
05:PPS3CHECK
PPS3(0-255):
Displays the level of the PPS at the exit tray.
PPS level is below 30 when there is no paper at PPS.
06:PPS4CHECK
PPS4(0-255):
Not used
142
∗ ∗ ∗
.
∗ ∗ ∗
∗ ∗ ∗
∗ ∗ ∗
∗ ∗ ∗
