. Electric Section
Chap.3

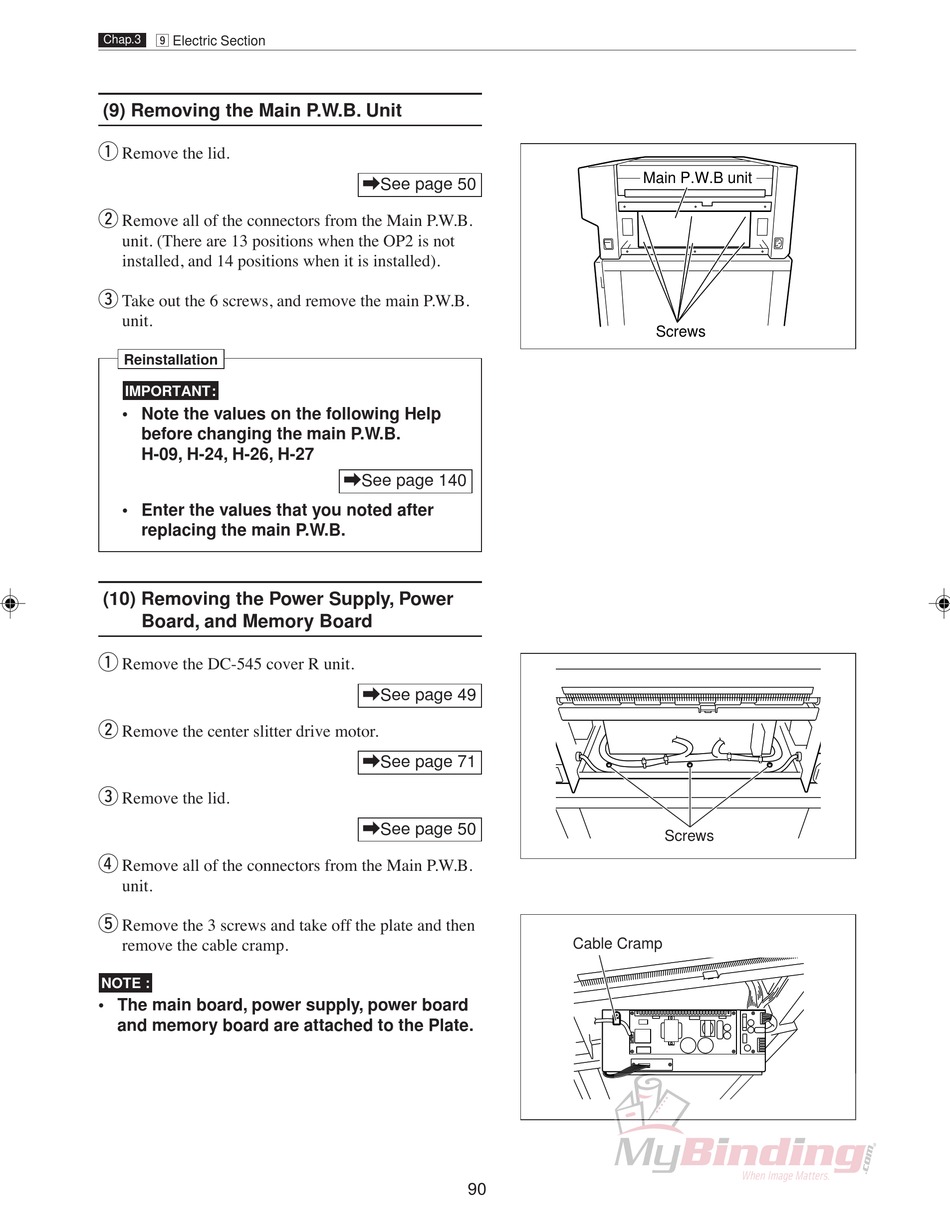

(9) Removing the Main P.W.B. Unit

q
Remove the lid.
w
Remove all of the connectors from the Main P.W.B.
unit. (There are 13 positions when the OP2 is not
installed, and 14 positions when it is installed).
e
Take out the 6 screws, and remove the main P.W.B.
unit.
Reinstallation
IMPORTANT:
• Note the values on the following Help
before changing the main P.W.B.
H-09, H-24, H-26, H-27
• Enter the values that you noted after
replacing the main P.W.B.
(10) Removing the Power Supply, Power
Board, and Memory Board
q
Remove the DC-545 cover R unit.
w
Remove the center slitter drive motor.
e
Remove the lid.
r
Remove all of the connectors from the Main P.W.B.
unit.
t
Remove the 3 screws and take off the plate and then
remove the cable cramp.
NOTE :
• The main board, power supply, power board
and memory board are attached to the Plate.
\See page 50
\See page 140
\See page 49
\See page 71
\See page 50
90
Main P.W.B unit
Screws
Screws
Cable Cramp
