i

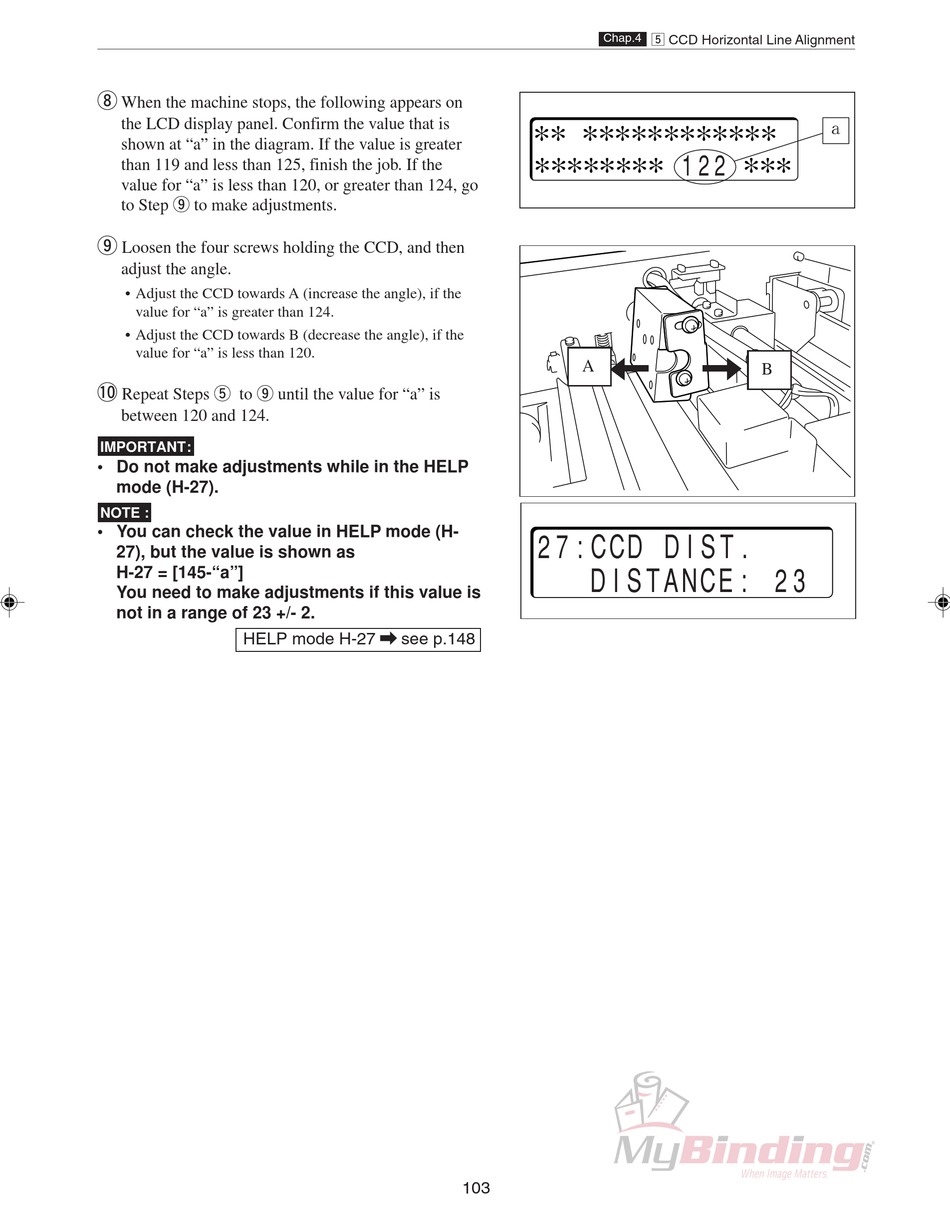

When the machine stops, the following appears on
the LCD display panel. Confirm the value that is
shown at "a" in the diagram. If the value is greater
than 119 and less than 125, finish the job. If the
value for "a" is less than 120, or greater than 124, go
to Step o to make adjustments.
o
Loosen the four screws holding the CCD, and then
adjust the angle.
• Adjust the CCD towards A (increase the angle), if the
value for "a" is greater than 124.
• Adjust the CCD towards B (decrease the angle), if the
value for "a" is less than 120.
!0
Repeat Steps t to o until the value for "a" is
between 120 and 124.
IMPORTANT:
• Do not make adjustments while in the HELP
mode (H-27).
NOTE :
• You can check the value in HELP mode (H-
27), but the value is shown as
H-27 = [145-"a"]
You need to make adjustments if this value is
not in a range of 23 +/- 2.
HELP mode H-27 \ see p.148
Chap.4
∗∗ ∗∗∗∗∗∗∗∗∗∗∗∗
∗∗∗∗∗∗∗∗
A
27:CCD DIST.
DISTANCE: 23
103
b CCD Horizontal Line Alignment
∗∗∗
122
B
a
