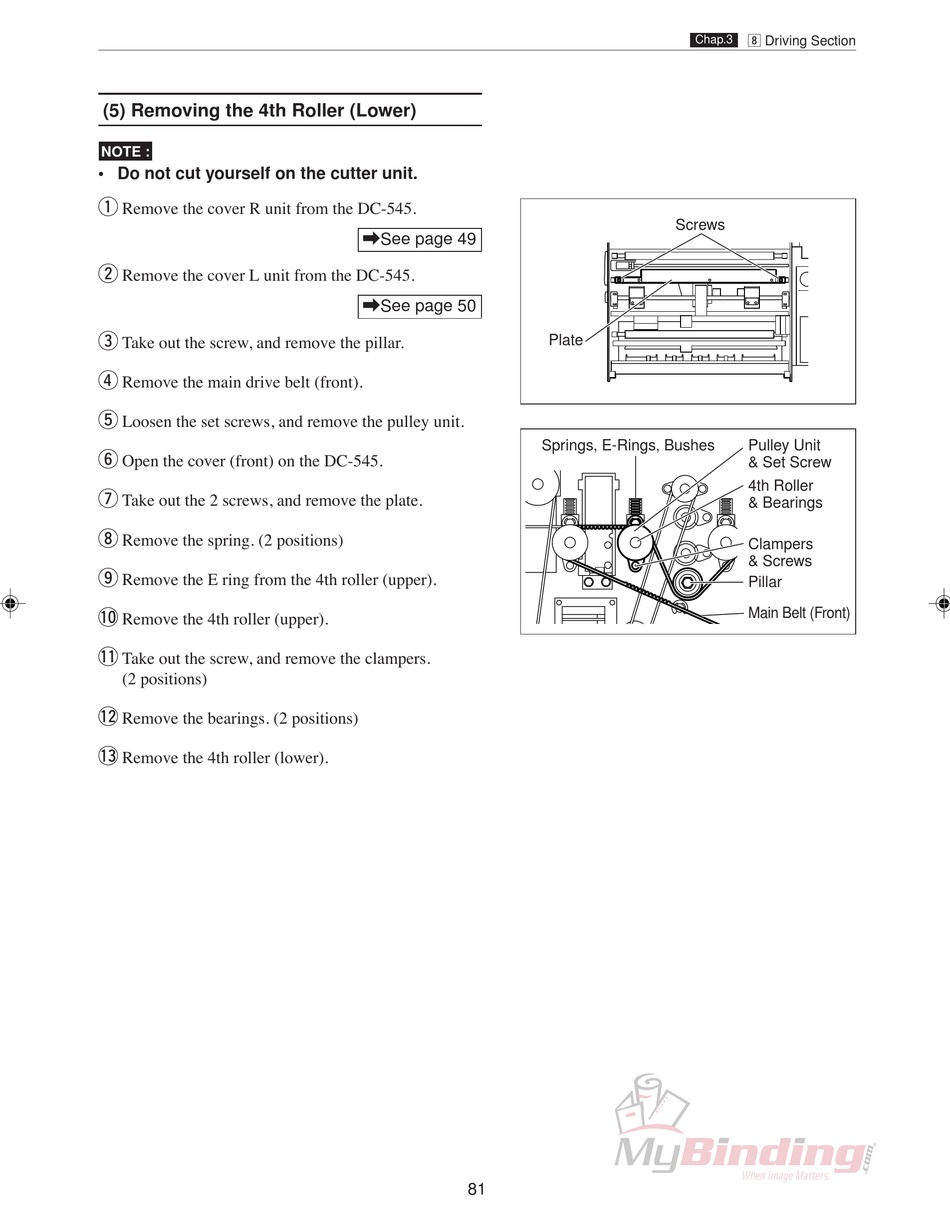

(5) Removing the 4th Roller (Lower)

NOTE :
• Do not cut yourself on the cutter unit.
q
Remove the cover R unit from the DC-545.
w
Remove the cover L unit from the DC-545.
e
Take out the screw, and remove the pillar.
r
Remove the main drive belt (front).
t
Loosen the set screws, and remove the pulley unit.
y
Open the cover (front) on the DC-545.
u
Take out the 2 screws, and remove the plate.
i
Remove the spring. (2 positions)
o
Remove the E ring from the 4th roller (upper).
!0
Remove the 4th roller (upper).
!1
Take out the screw, and remove the clampers.
(2 positions)
!2
Remove the bearings. (2 positions)
!3
Remove the 4th roller (lower).
\See page 49
\See page 50
81
Chap.3
Screws
Plate
Springs, E-Rings, Bushes
, Driving Section
Pulley Unit
& Set Screw
4th Roller
& Bearings
Clampers
& Screws
Pillar
Main Belt (Front)
