76 Chapter 5 Working with Images

Command file example

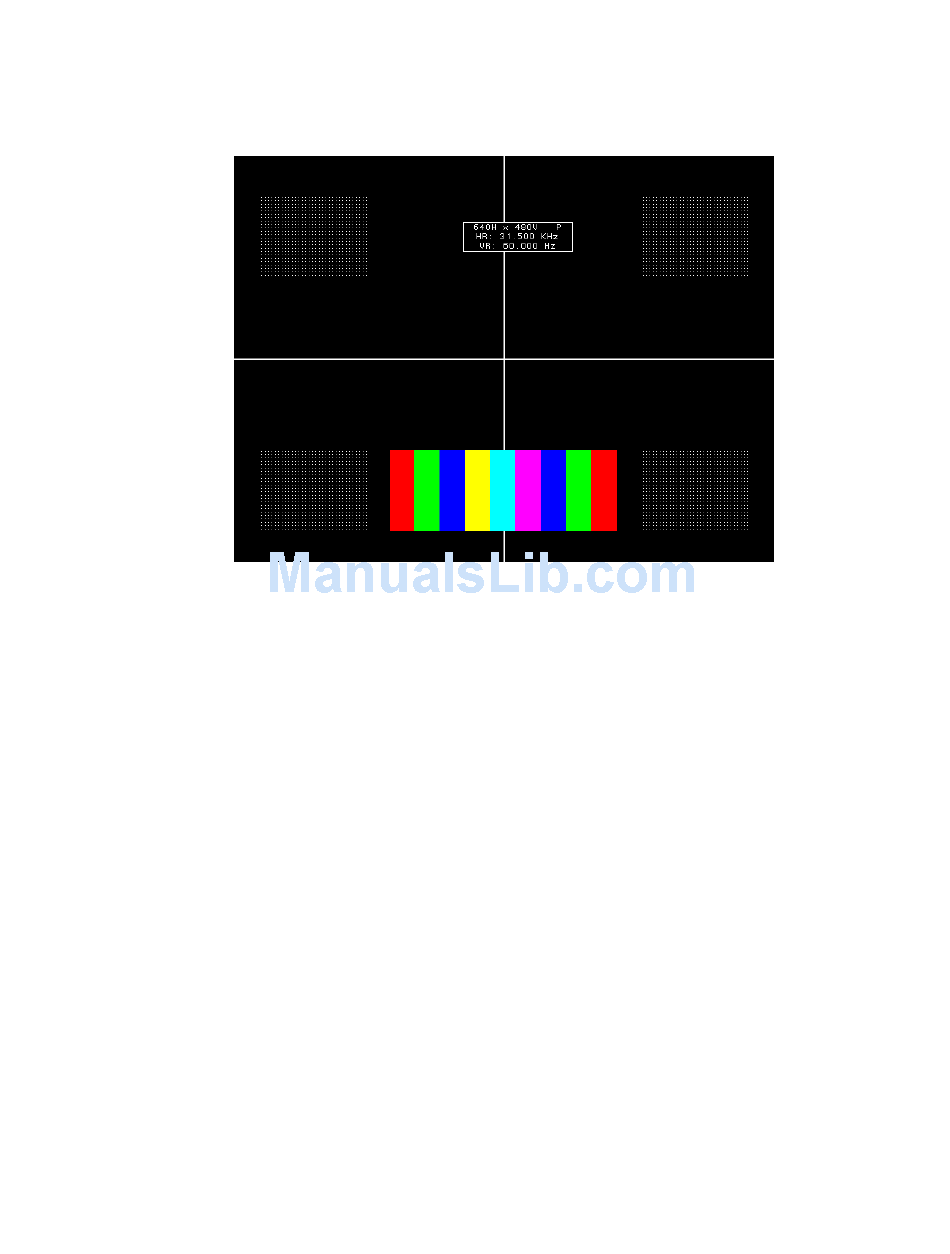

The following sample command file creates the image shown in the graphic below.
Commands used to draw image above:
IMGN
IMGB
XRES 640
YRES 480
HATO Foreground 24 18
OVAL Foreground 479 479
CROS White
RECT White 205 154
RECT Black 128 96
RECT Black 128 96
RECT Black 128 96
RECT Black 128 96
RECT Red 30 96 184 347
RECT Blue 30 96 243 347
RECT Yellow 30 96
RECT Cyan 30 96 303 347
RECT Magenta 30 96
RECT Blue 30 96 363 347
FORM White 271 78
RECT Green 30 96 213 347
RECT Green 30 96 393 347
RECT Red 30 96 423 347
RECT White 128 96
RECT White 128 96
RECT White 128 96
RECT White 128 96
// begin an editing session
// set the horizontal resolution
// set the vertical resolution
80 0 GrayPat0
770 77 GrayPat50
30 45 GrayPat100
482 45 GrayPat100
30 345 GrayPat100
482 345 GrayPat100
GrayPat100
GrayPat100
273 347 GrayPat100
GrayPat100
333 347 GrayPat100
GrayPat100
GrayPat100
GrayPat100
GrayPat100
30 45 GrayPat7
482 45 GrayPat7
30 345 GrayPat7
482 345 GrayPat7
