PRN_5, PRN_9

802BT/802R Video Test Generator User Guide

This image displays pseudo-random noise using 24-bits-per-pixel color depth.

Used with analyer to verify the analyzer's pseudo-random noise analysis capability. The

PRN_5 image introduces 5 pixel errors per color component, while the PRN_9 image

introduces 9 pixel errors per color component. For more information, see

analyzer" on page 120.

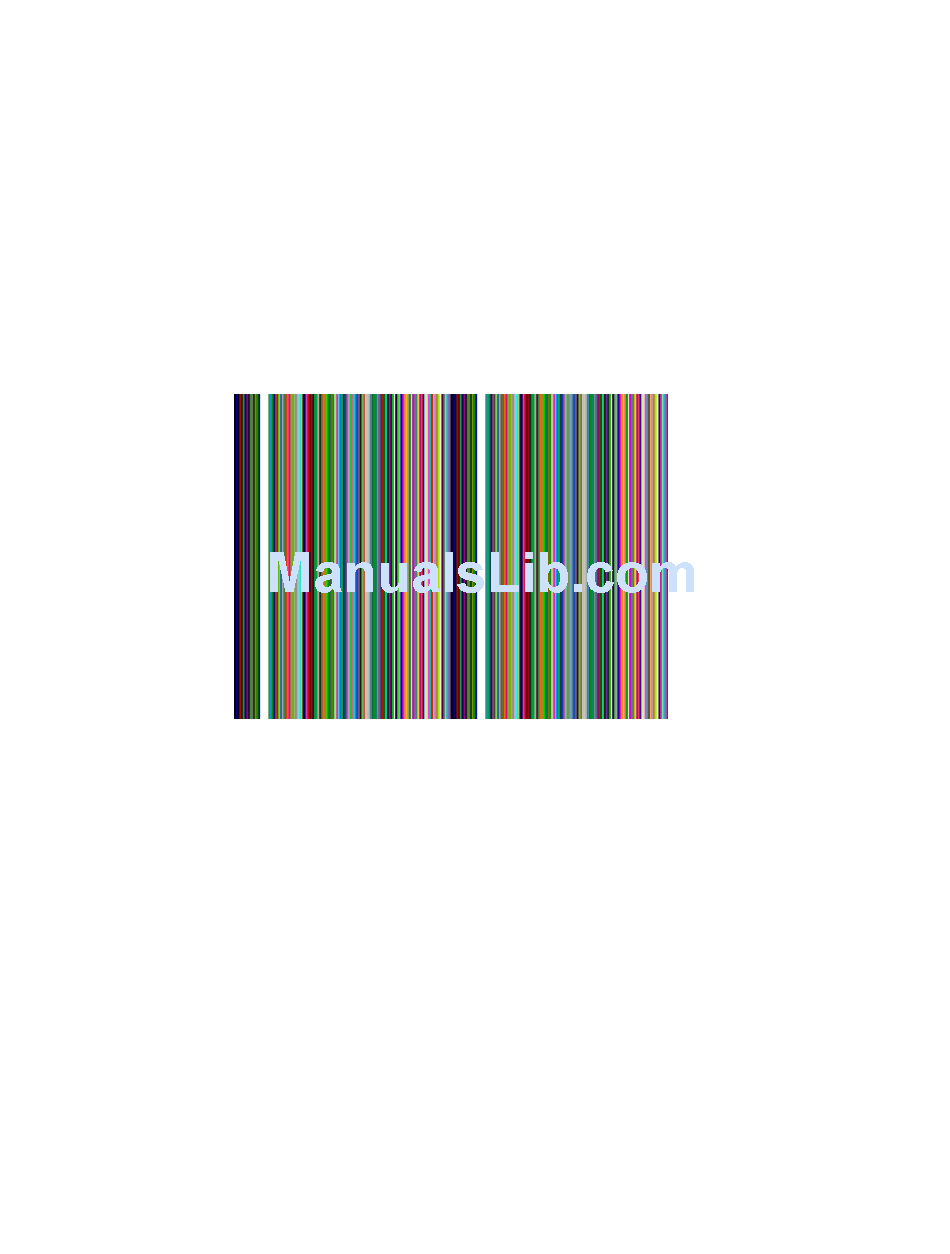

The PRN_5 image is shown below.

This image is intended for TV formats, but can be displayed with any format up to 100

MHz. The image looks like two vertical lines followed by a wide vertical bar on a display's

screen. The first line is a sine-squared modulated pulse that fades from black to red and
