168 Chapter 10 Testing EDID

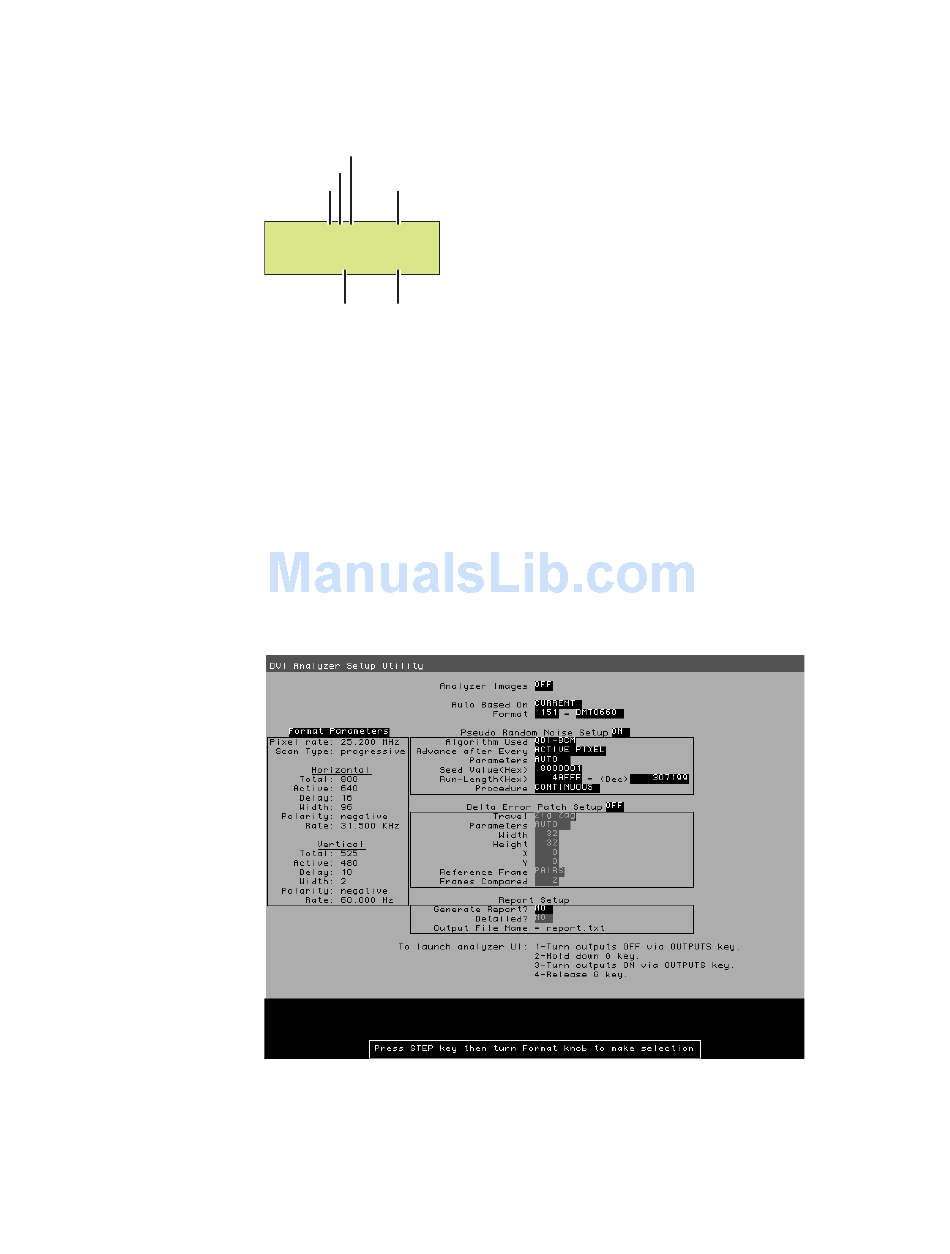

5. Release the Step, G, and B keys to enable status display on the generator (see
example below).
Color space
Color depth
Video type Format name
H31 D8C=DMT0659
V60 0=SMPTE133
Image version Image name
The format status on the LCD will indicate whether the unit is outputting HDMI or DVI
signal protocol from the Tx connector. An "H" in the format status (H8C in the example
above) indicates HDMI output; a "D" in the format status indicates DVI output.
Note: With the compliant Hot-plug Formats mode active and a hot-plug detected, the
generator automatically selects the appropriate TMDS output signal protocol (HDMI or
DVI) for the attached display (via EDID read).
To configure the analyzer for internal measurements:
1. Connect a digital display with the DVI or HDMI transmitter on the generator.
2. Select the Analzyer image.
The Analyzer Setup Utility appears on the connected display.
3. Press and release the Step key.
The Step key illuminates and the Analyzer Images field is highlighted.
