Pixel repetition factor
(image version)
3
4
5
6
7
8
9
10
To test an HDMI display using HDMI pixel repetition:
1. Connect an HDMI display to the Tx connector on the generator.
2. If necessary, set up the generator for HDMI output.
• See "Setting up the generator for HDMI
up the generator for HDMI operation.
3. Using the Format knob, select the HDMI gaming format you want to test.
Note: Gaming formats on the generator have the characters "4x" in their names (such
as "480i4x29" or "576i4x25"). For a listing of all HDMI formats, see the table on page
149.
4. Using the Image knob, select the PixelRep image.

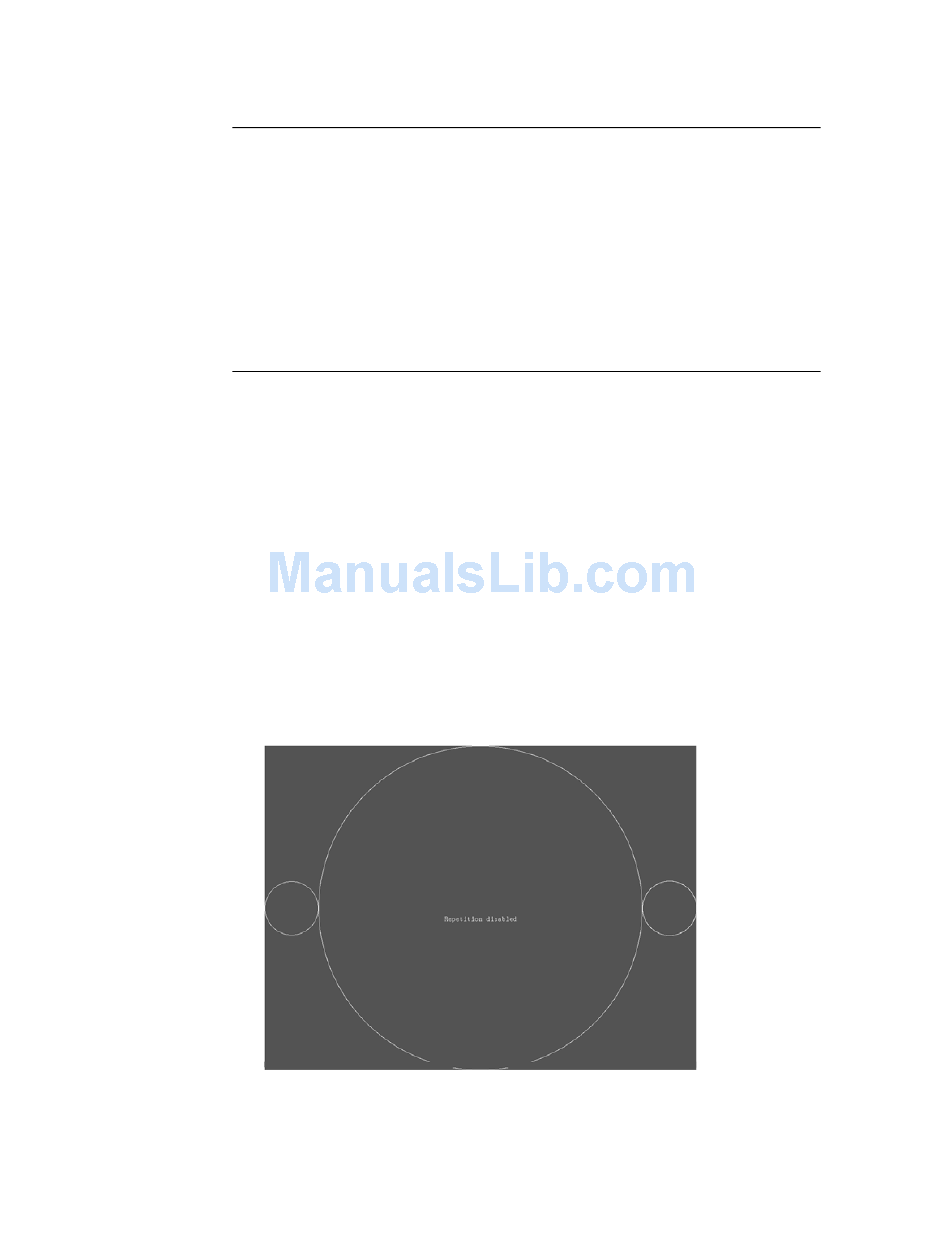

The PixelRep image appears on the connected HDMI display (as shown below).
5. Press and release the Step key.
The Step key illuminates.
Horizontal resolution
853 pixels/line
640 pixels/line
512 pixels/line
427 pixels/line
366 pixels/line
320 pixels/line
284 pixels/line
256 pixels/line
operation" on page 147 for steps on setting
