802BT/802R Video Test Generator User Guide
To test an HDMI display's ability to support AFD:
1. Connect an HDMI display to the Tx connector on the generator.
2. If necessary, set up the generator for HDMI output. See
HDMI operation" on page 147.
3. Using the Format knob, select an appropriate video signal format. See the table on
page 149 for a listing of HDMI formats.
4. Using the Image knob, select the AFDtest image.

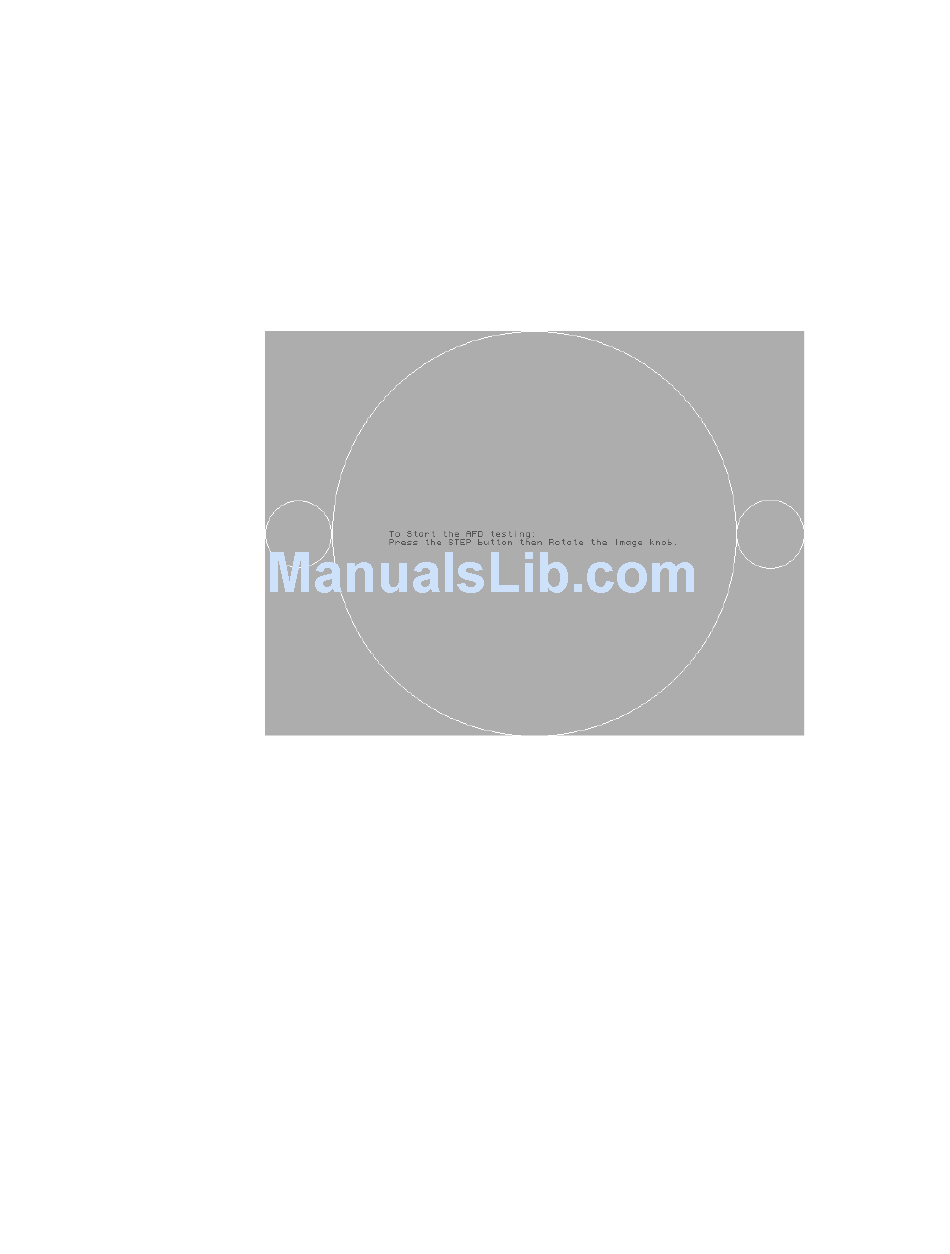

The AFDtest image appears on the connected HDMI display (as shown below).
5. Press the Step key.
The Step key illuminates, and the following image appears.
6. Using the Image knob, select an AFD scenario by selecting the appropriate image
version number (1-12).
Note: The image version number corresponds with the AFD case (or code). See the
table on page 162 for a listing of the image numbers that correspond with each AFD
case.
"Setting up the generator for
