Getting started

Chapter 8 Analyzing Digital Sources and Cables

The HDMI and DVI Analyzer options provide the 802 video test generator with the ability to

test and verify the quality of an HDMI or DVI video signal, respectively. Having both a

transmitter and receiver, the 802 generator with the Analyzer feature can be used to:

View timing of an HDMI/DVI video signal. Connect an HDMI/DVI source to the

HDMI/DVI Rx connector to measure and analyze the timing parameters of the signal.

Generate pseudo-random noise test pattern. Connect an HDMI/DVI host to the

HDMI/DVI Tx connector to receive pseudo-random noise for testing purposes.

Analyze pixel data at different frequencies. Examine the quality of HDMI/DVI pixel

transmission (including source, cables and distribution systems) for data errors and

flickering pixels.

View InfoFrame packets from an HDMI signal. Display and validate InfoFrame

packets transmitted from an HDMI source

This chapter provides procedures for testing with the analyzer through the front panel and

through the command line. Front panel instructions are provided initially for each test. For

procedures using the command line refer to

interface" on page 130.

With the HDMI analyzer option, you can externally monitor the video and/or audio content

of an incoming HDMI signal. This feature lets you view and hear HDMI content that is

received at the HDMI Rx connector while analysis and testing functions are performed by

the analyzer.

"Controlling analyzer using command-line

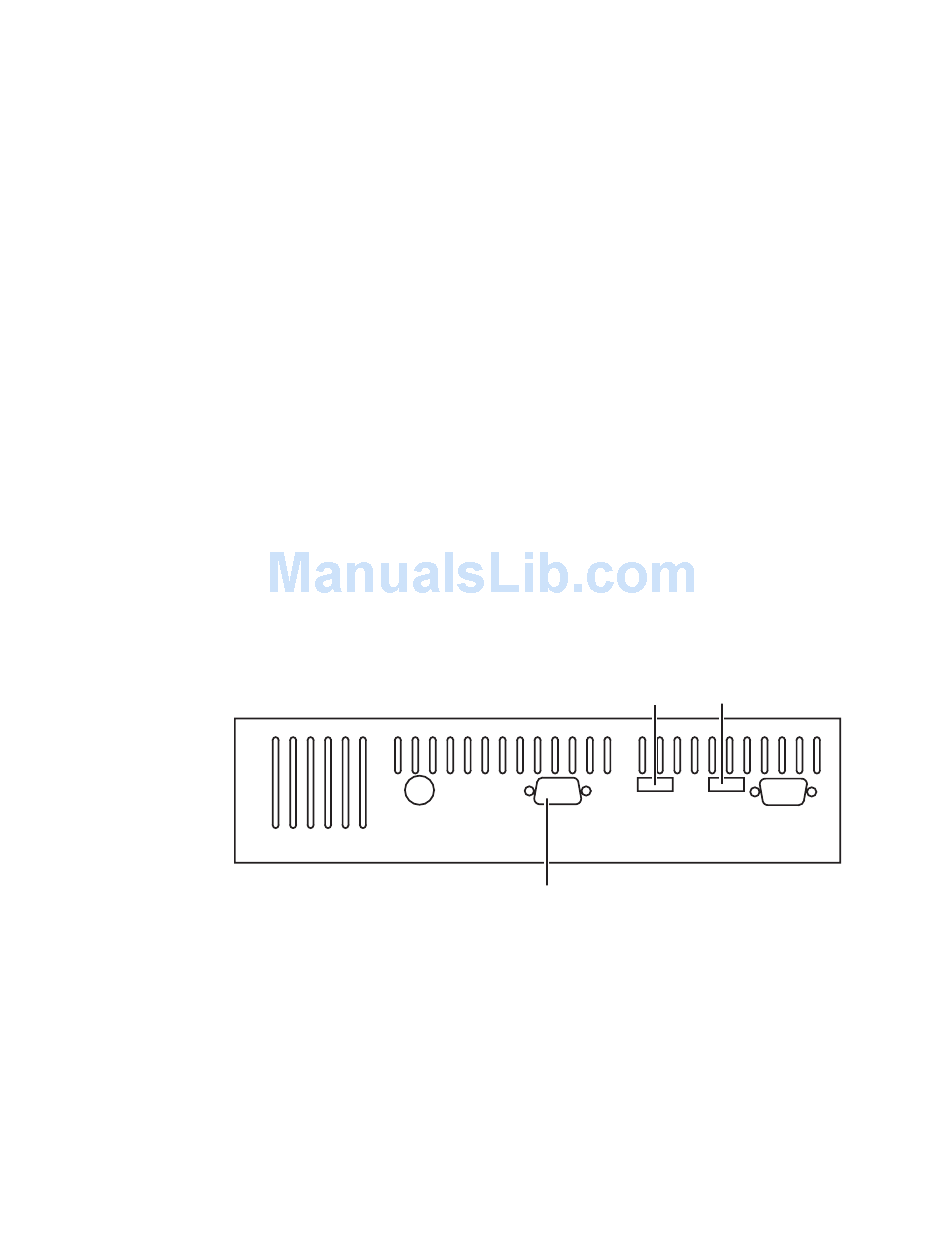

HDMI receiver

Audio/Video connector

HDMI transmitter
