802BT/802R Video Test Generator User Guide
4. Using the Image knob, select the Master image.

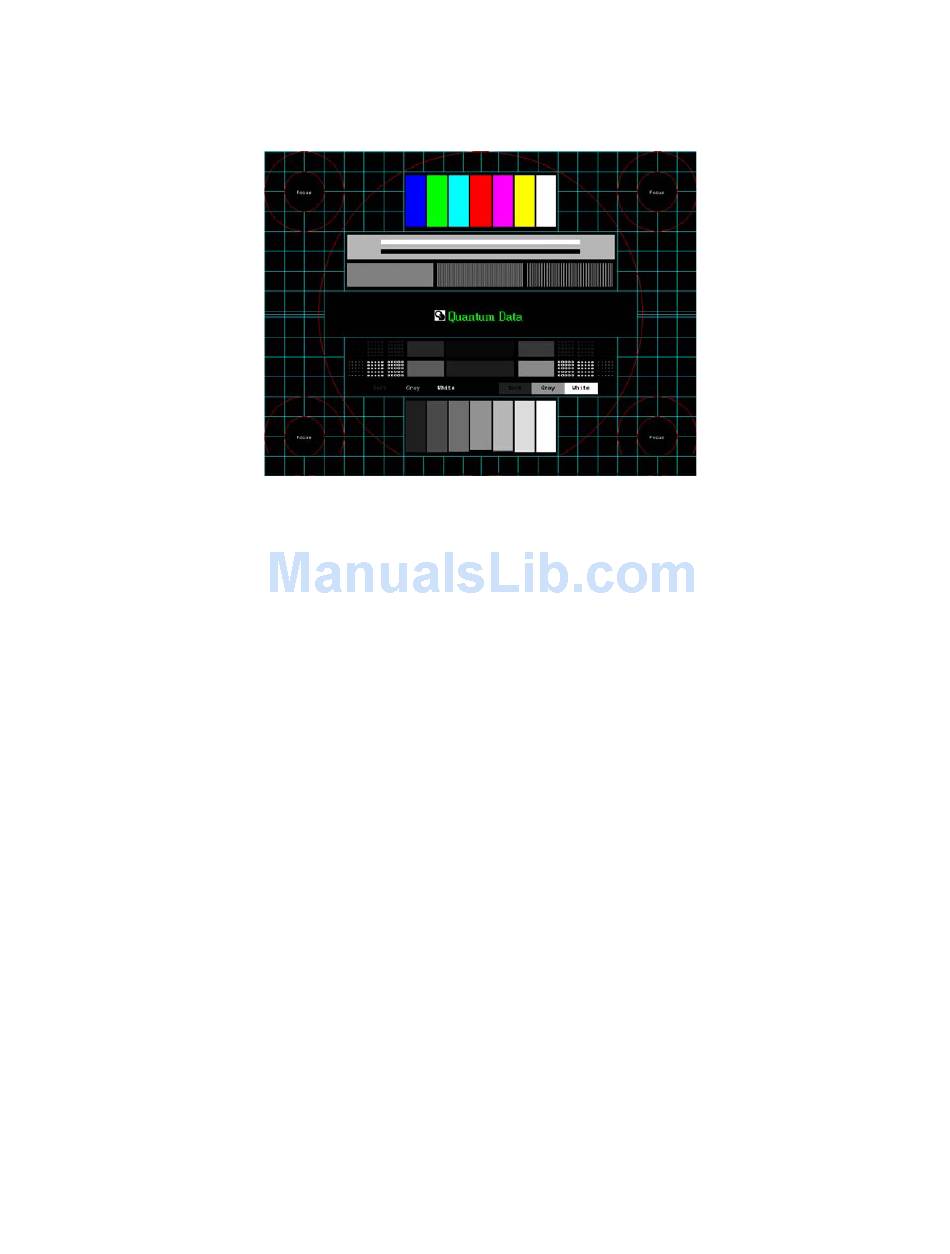

The Master image appears on the connected HDMI display (as shown below).
5. To verify proper handling of the selected HDMI video format, check for the following in
the image on the HDMI display:
•
scrambled raster
•
jitter
•
centering
•
scaling anomalies
•
resolution patches (for clarity)
•
sparkling or missing pixels
151
