Quantum Data 802BT User Manual page 618

Audio LR, AudioLRf, AudioRAT, Audio_L, Audio_Lf, Audio_R, Audio_Rf
Description
BarBlack
Description
BLU_EM, GRN_EM, RED_EM, WHT_EM, MEME1111, MEMESony, MESony_B,
MESony_G, and MESony_R
Description
608 Appendix B Image Reference
Used to configure HDMI audio output signal. The AudioLR is shown below. For more
information, see "Testing HDMI

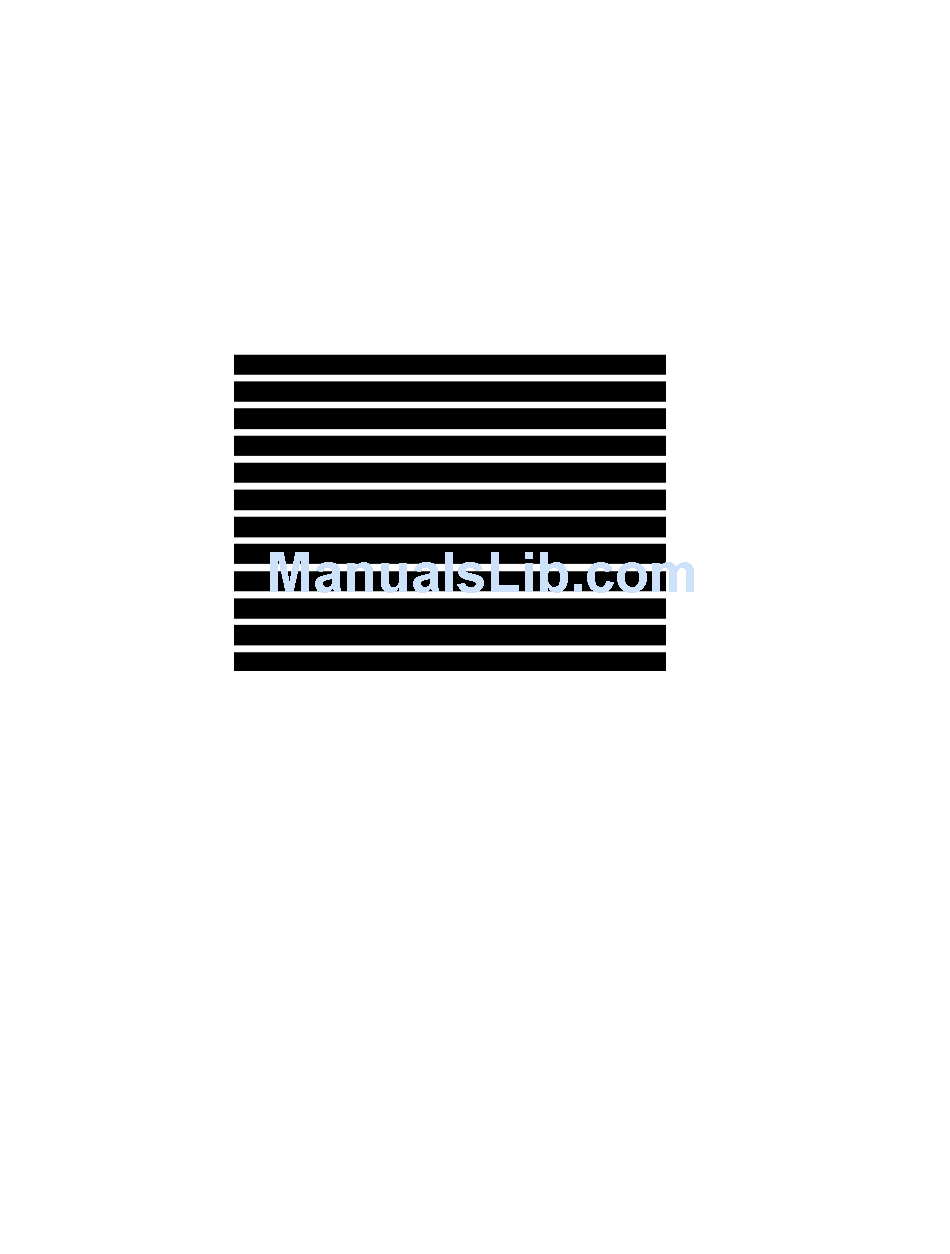

Special test image developed per customer specifications.
A secondary version shows reverse (black lines on white background).
In the primary version, the screen is filled with blue (BLU and B), green (GRN and G), red
(R), or white (WHT, MEME1111, MEMEPlus, and MEMESony) EM character blocks on a
black background. Only the white character has a secondary version. It is drawn with black
characters on a white background.
audio" on page 155.
