DVI analyzer connections

802BT/802R Video Test Generator User Guide
To monitor HDMI input:

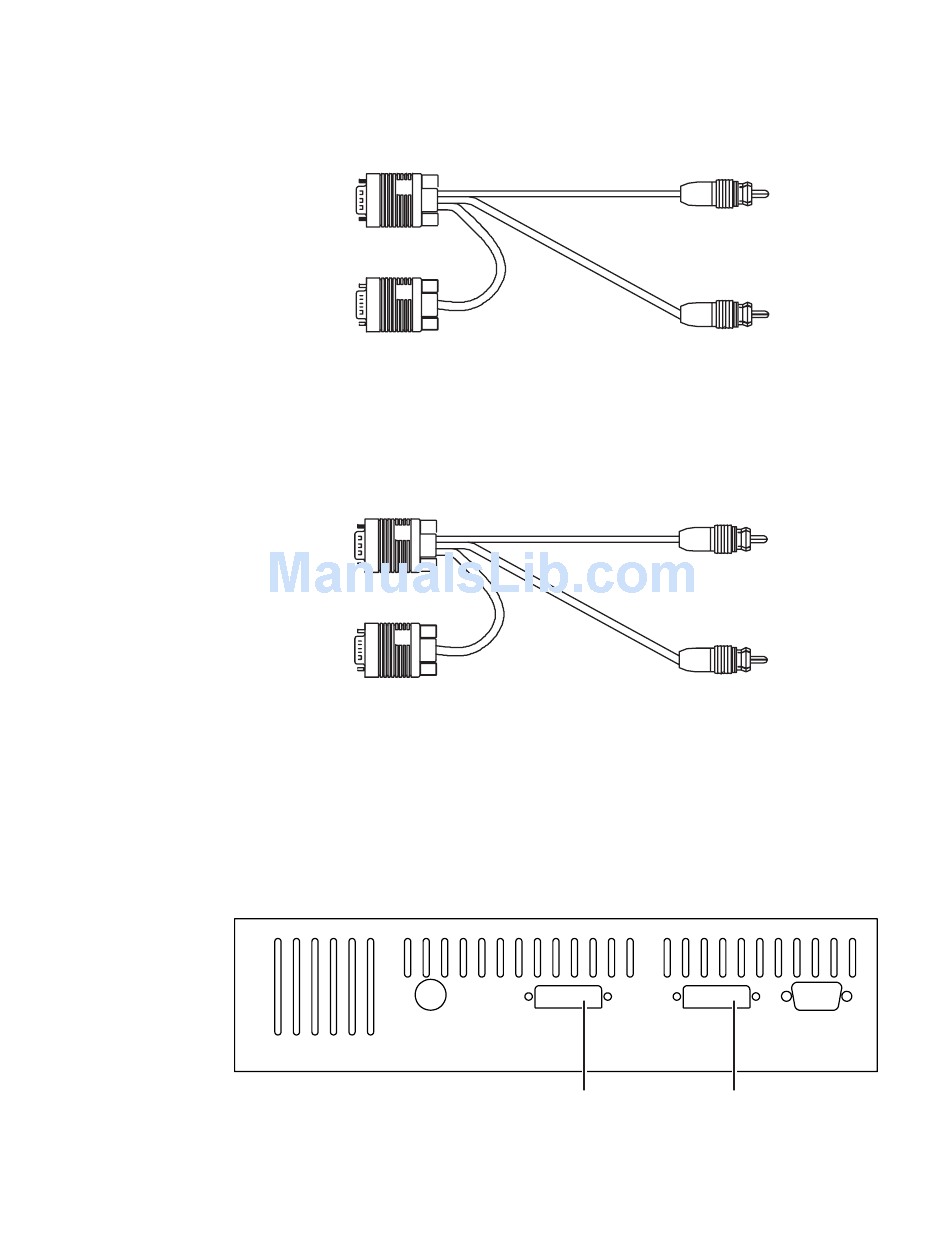

• Use the VGA-to-RCA cable (part 30-00148) to connect the AV connector with a YPbPr
display, and the audio connections, as shown below.
To AV
connector
To VGA-to
RCA cable
A VGA-to-RCA (3) cable is available from Quantum Data (part 99-00503), which
requires a female-to-female HD15 adapter, which is also available from Quantum Data
(part 09-00251).
• Use the VGA-to-RCA cable (part 30-00148) to connect the AV connector with an
analog VGA display, and the audio connections as shown below.
To AV
connector
To analog
display
The 802 generator with the DVI analyzer option is equipped with two digital DVI
connectors. In addition to a DVI Tx (output) connector that emulates a DVI transmit device,
a DVI Rx (input) connector is provided that allows a high-quality DVI display to be
emulated.
SS Tx
Transmitter
To audio source
Red
To audio player
White
To audio source
Red
To audio player
White
Rx VGA
Receiver
