Appendix B Image Reference

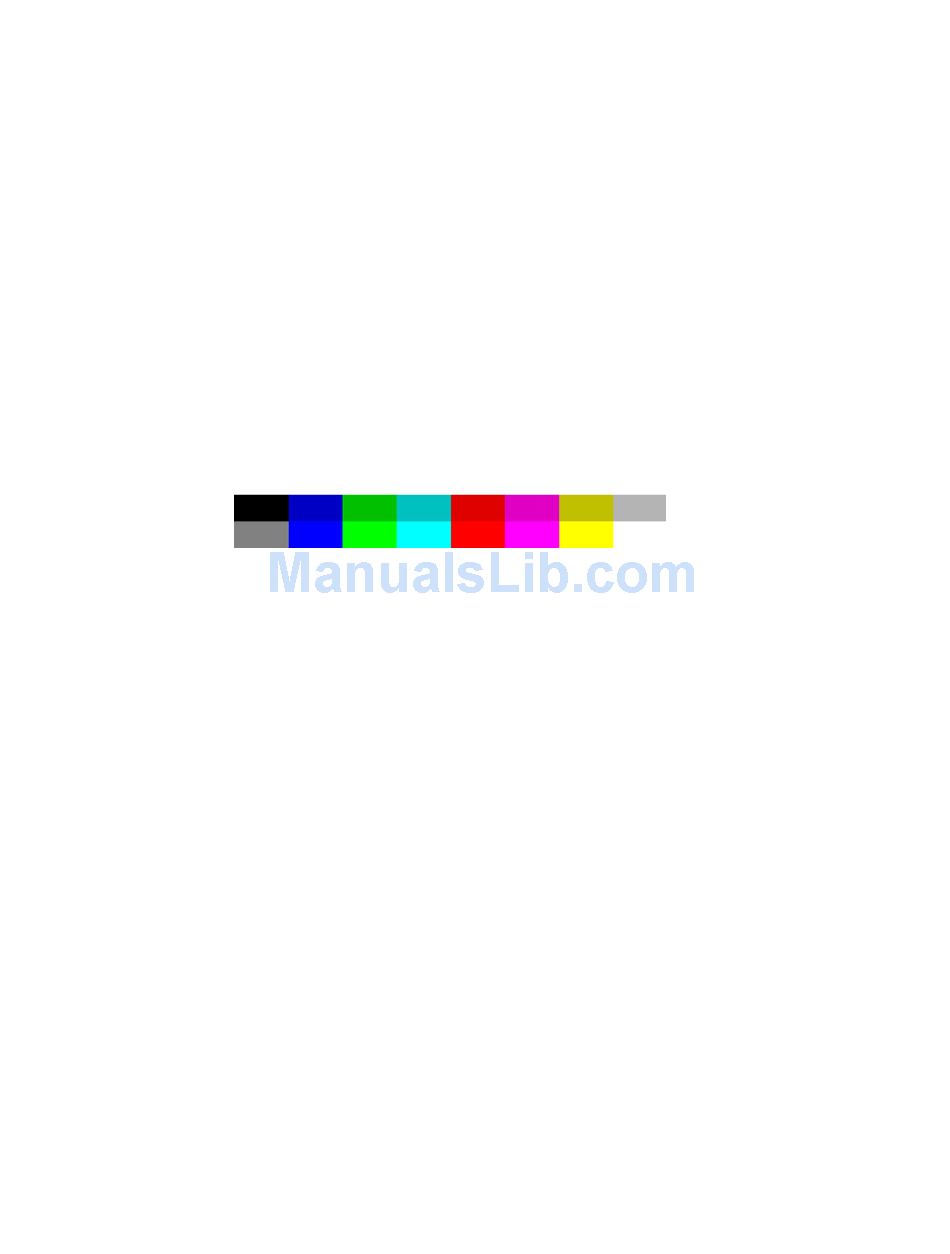

Special test image developed per customer specifications. In the primary version, a mostly
white field is displayed with two rows of color bars at the bottom. A secondary version
displays a black field with the two rows of color bars at the bottom.
Used to test HDMI content mapping using different EIA/CEA-861-B formats. There are 10
different versions of this image. For more information, see
Description
(AFD)" on page 162.
Used to configure the DVI and HDMI analyzer. For more information, see Chapter 8,
"Analyzing Digital Sources and
Cables."
"Testing with Active Format
