LGLCDTVB, LGLCDTVG, LGLCDTVR, LGLCDTVW
Description
LGRamp
Description
802BT/802R Video Test Generator User Guide
Special test image developed per customer specifications. Each image has three versions.

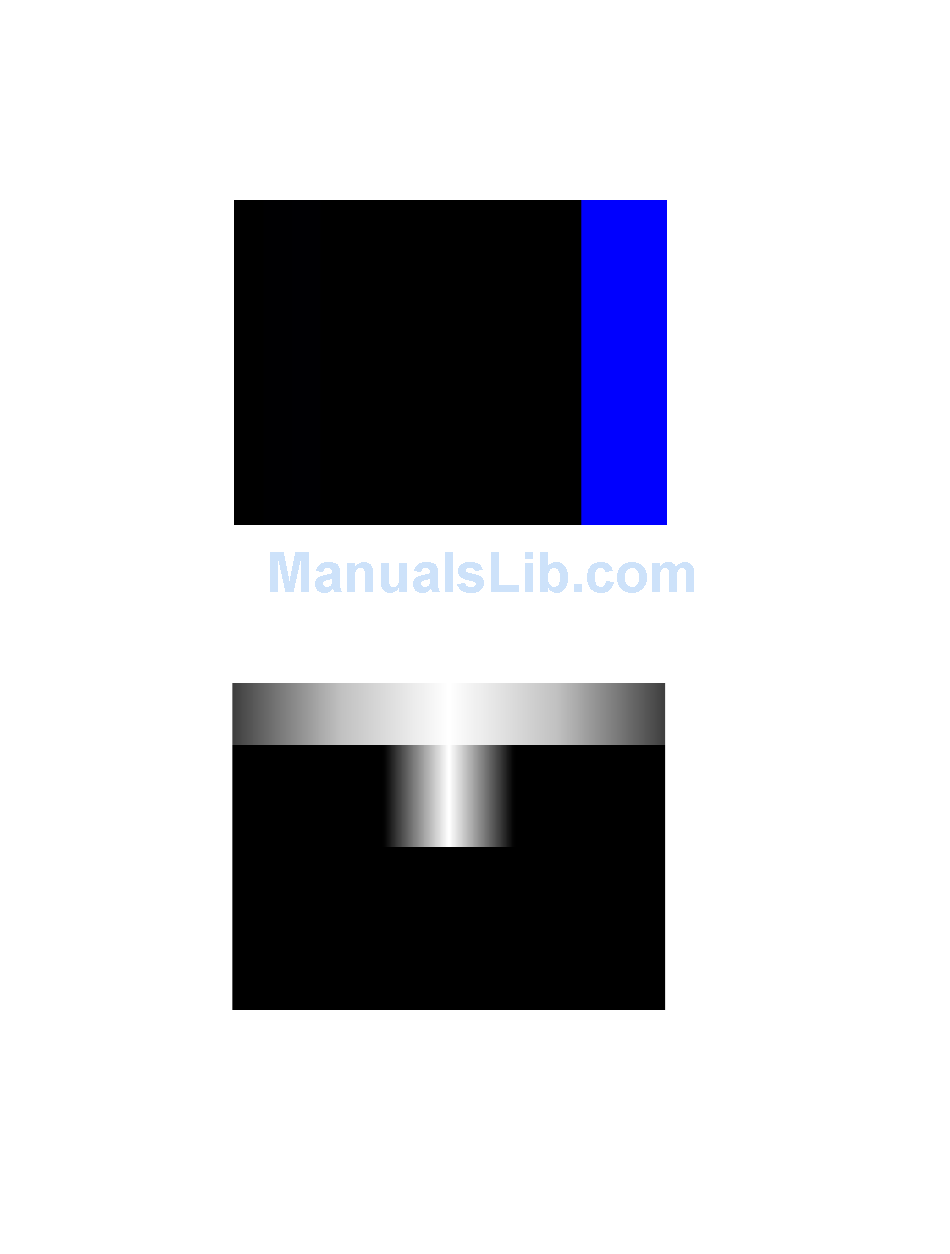

The primary version of the LGLCDTVB image is shown below.
Special test image developed per customer specifications. The image provides a
grayscale of two objects. The secondary version of the LGRamp image is shown below.
657
