Quantum Data 881E Specification Sheet

V i D e O t e s t i n s t r u M e n t s
introducing the latest video test instrument from Quantum Data, the
881e/882e. the HDMi interface supports the latest HDMi 1.3 standard,
with up to 36-bit/pixel (12-bit/component) Deep Color mode x.v.Color wide
gamut color and high bit audio formats. the 882e can be equipped with
the analyzer functionality for testing HDMi 1.3 source devices.

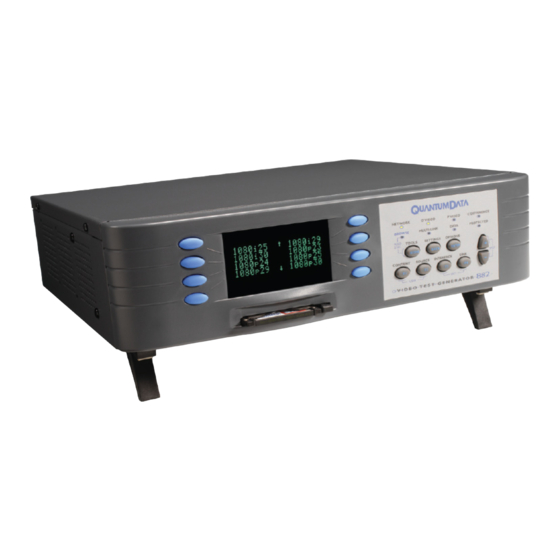

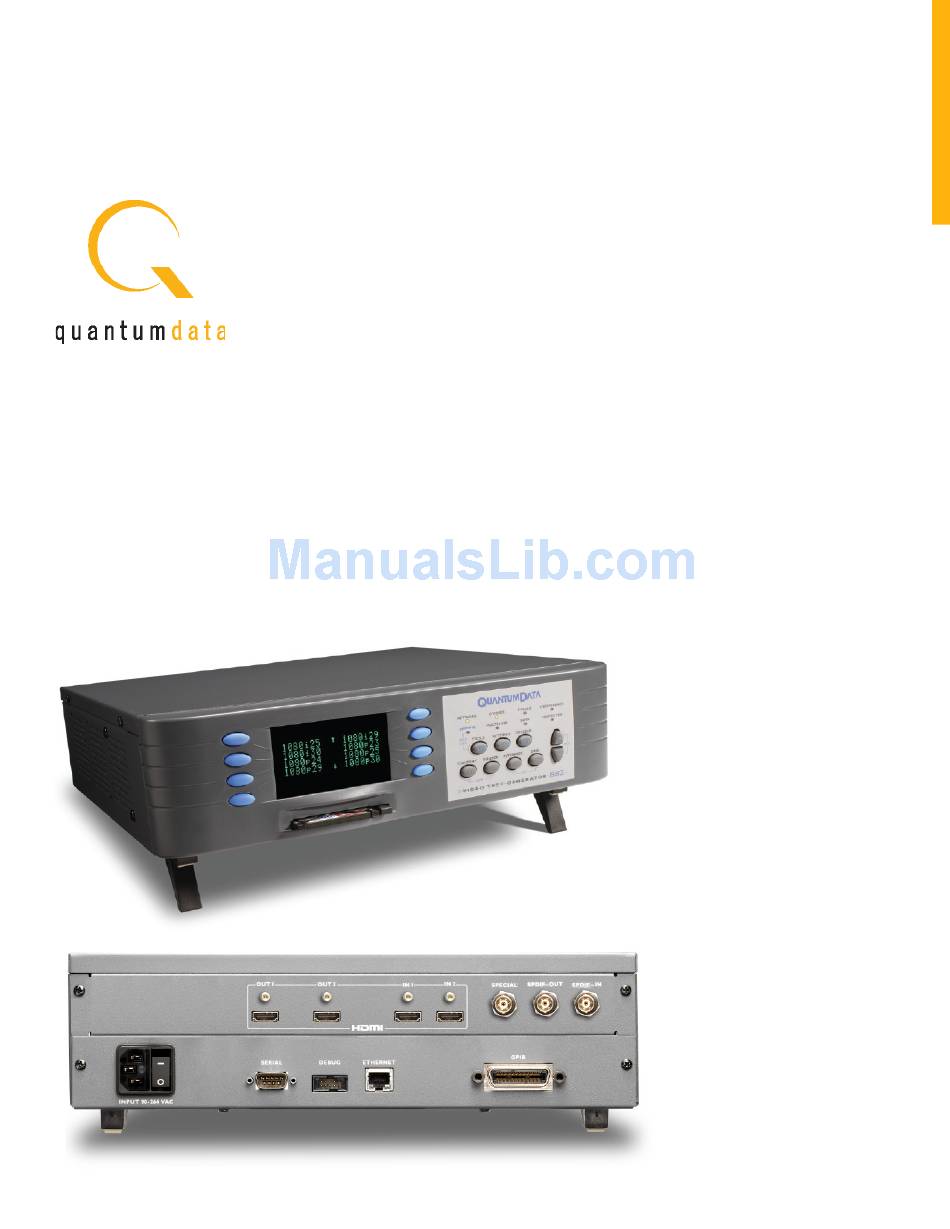

Note: 882EA shown in photo.
K e y f e a t u r e s + b e n e f i t s
HDMI 1.3 Deep Color™
Up to 36-bit/pixel (12-bit/component) Deep
Color at 1080p; TMDS link up to 2.25 GB/s.
x.v.Color
Supports wide gamut color generation with
test images and metadata.
High Bit Rate Audio
Generates Dolby
compressed audio format.
Image Control Tool (882E)
Web-based Image Control Tool for fine tuning Deep
Color images.
central administration/network control
Update and configure all networked instruments from
a single computer. Fully control instrument from any
network location with web browser or Telnet client.
HDMI + DVI Analyzer (882E with analyzer)
Single link analyzer (up to 150 MHz) for
measuring source timing & pixel errors and emulated
EDIDs. Include formatted reports.
HDCP including compliance test
Production keys included with HDMI and DVI signals.
Runs HDCP compliance test (optional with 882EA).
graphics SDK
Create complex patterns based on your
specifications using C++ software development kit.
analog video (optional, not available
with 882E with analyzer)
Up to 250 MHz.
CEC
Interactive Troubleshooting Environment (ITE) for CEC
development (optional with 882E and 882EA). Test
Management Environment (TME) for CEC compliance
(optional with 882EA).
Auxiliary Channel Analyzer (ACA)
(882E/EA only)
Monitor DDC, HDCP, CEC and EDID transactions
comprehensive timing + patterns
Includes extensive library of standard timings and
patterns. Add your own custom timings and patterns.
local pattern storage
Store multiple custom images (.bmp, .jpg
and .png) images in instrument.
easy to use
Access powerful features easily using intuitive user
interface.
DUT-based setup
Specify device under test to automatically
set up instrument.
multiple configurations
Save and restore different instrument configurations
for different users or applications.
881E/882E HDMI
formats Plus & TrueHD lossless
®
