TVBar100 & TVBar_75 (TV formats only)
Description
Test
702 Appendix B Image Reference
luminence. There is a series of 11 small boxes of increasing luminence left to right with the
luminence identified in text. The lower left quarter of the image is 28.5% luminence and
the lower right is magenta at 44.3 IRE.

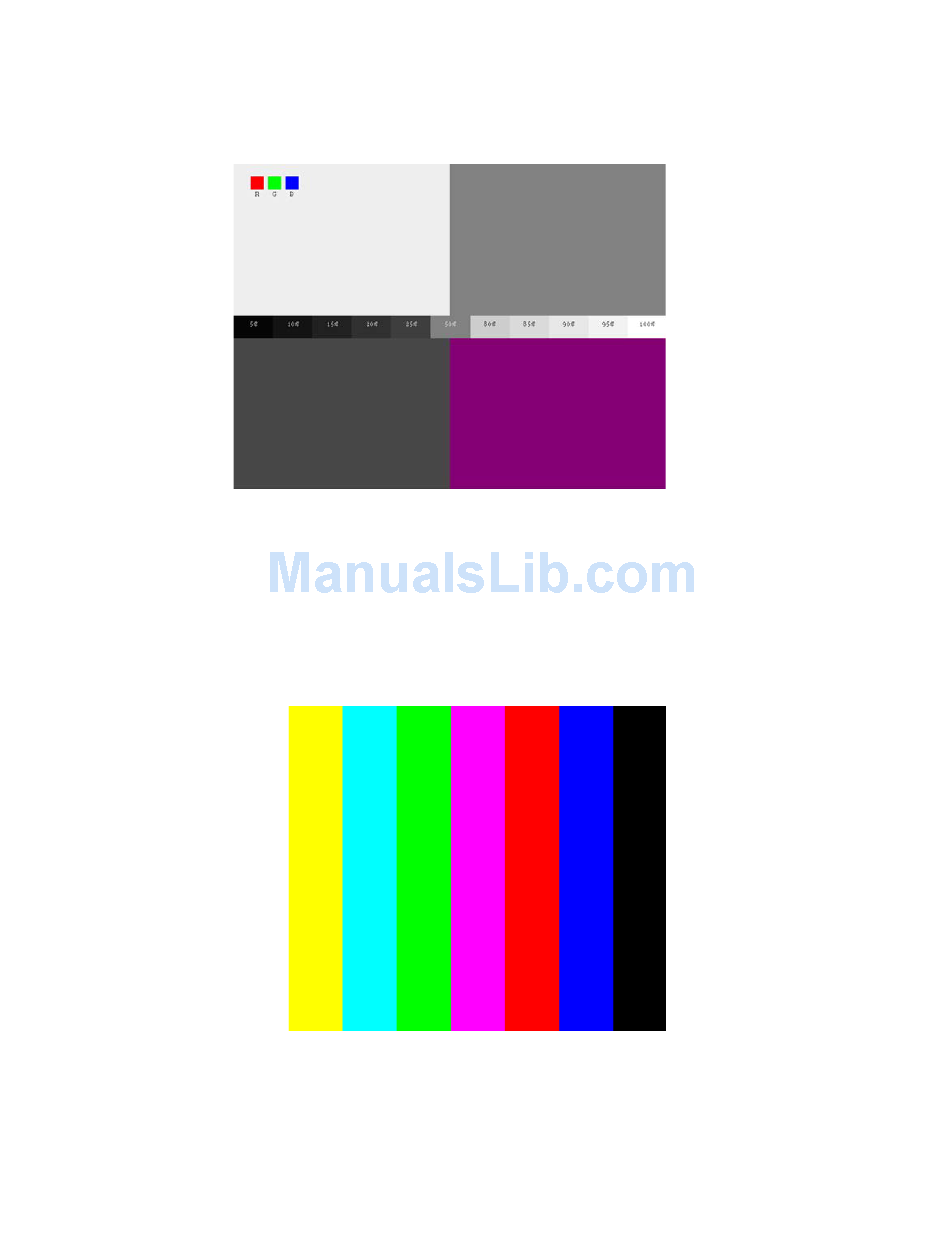

The image consists of seven vertical bars that fill the entire active video area. The color
and order of the bars is shown in the figure below. The TVBar100 image has a peak video
level of 100 IRE and the TVBar_75 image has a peak video level of 75 IRE.
The TVBar100 image is shown below.
Color video performance
