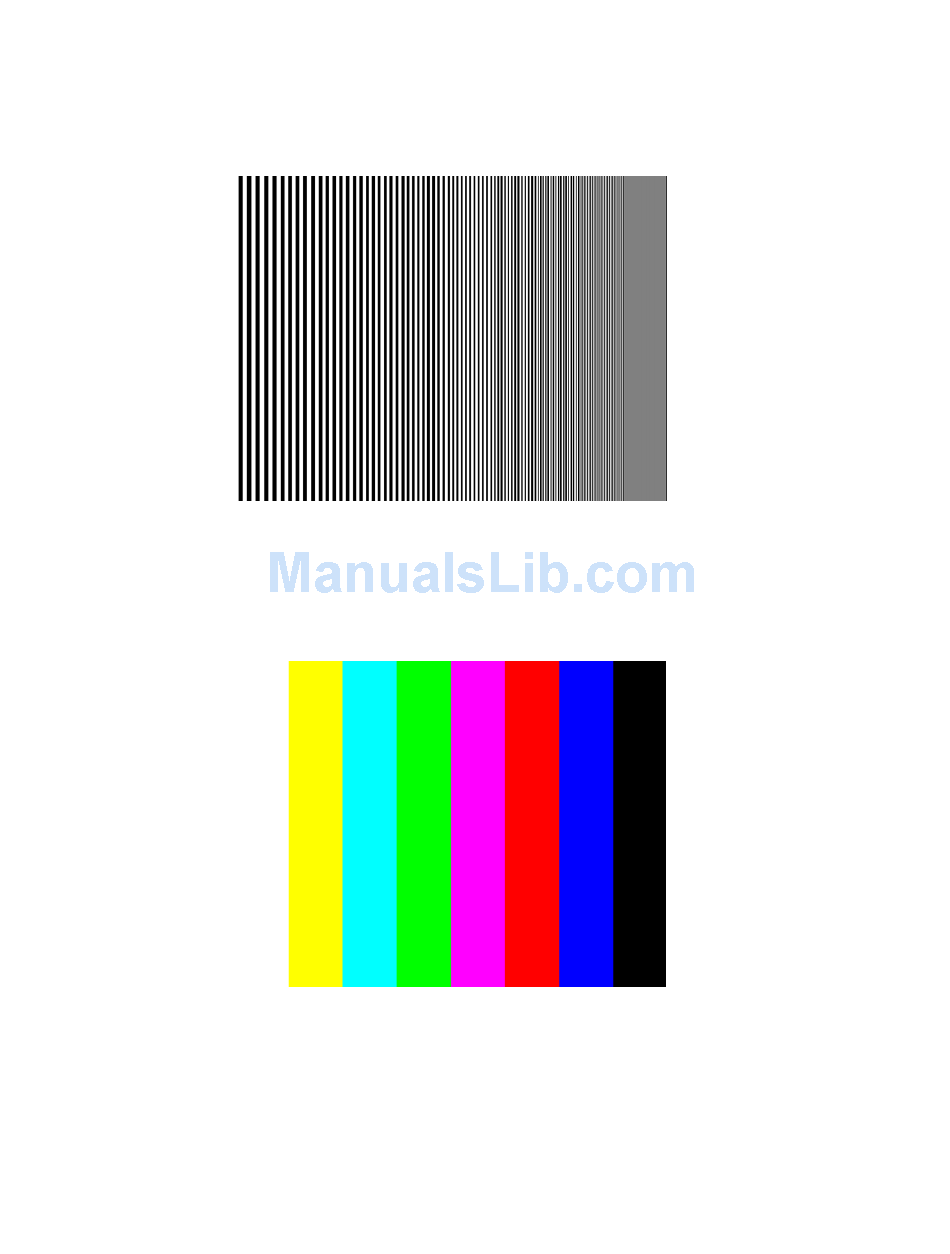

MulBurst
Description
Orion
Description
Outline0, Outline1, Outline2, Outline3
802BT/802R Video Test Generator User Guide
This image provides a color bar that rotates (shifts) the bars to the right on an incremental
basis.
The color bars are shifted to the right at 3 second intervals. After pressing the Step key,
turn the Image knob to adjust the interval between 3, 10, 30 and 60 seconds.
