Ethernet Interface Operation
CDM-760 Advanced High-Speed Trunking Modem
7.4.4.2.2

Admin | SNMP

The Administrator must use this page to manage the CDM-760 SNMP (Simple Network
Management Protocol) settings.
SNMP
•
Use the Simple Network Management drop-down list to select Enabled or Disabled.
• Enter a Read Community string. This string can be any combination of characters and a
length of 0 to 20 characters. The factory default SNMP Read Community string is public.
• Enter a Write Community string. This string can be any combination of characters and a
length of 0 to 20 characters. The factory default SNMP Write Community string is private.
•
Enter an SNMP Contact, Name, and Location. Each string can be any combination of
characters and a length of 0 to 20 characters.
• Use the Enable Authentication Trap drop-down list to select Enabled or Disabled.
• Enter the Trap IP 1 and Trap IP 2 addresses, in the form XXX.XXX.XXX.XXX, for the computer
that is to receive the traps generated by the CDM-760.
•
Use the Trap Version drop-down list to select SNMPv1 or SNMPv2.
•
Enter a Trap Community String. This string can be any combination of characters and a
length of 0 to 20 characters. The factory default SNMP Write Community string is comtech.
Click [Submit Admin] to save.

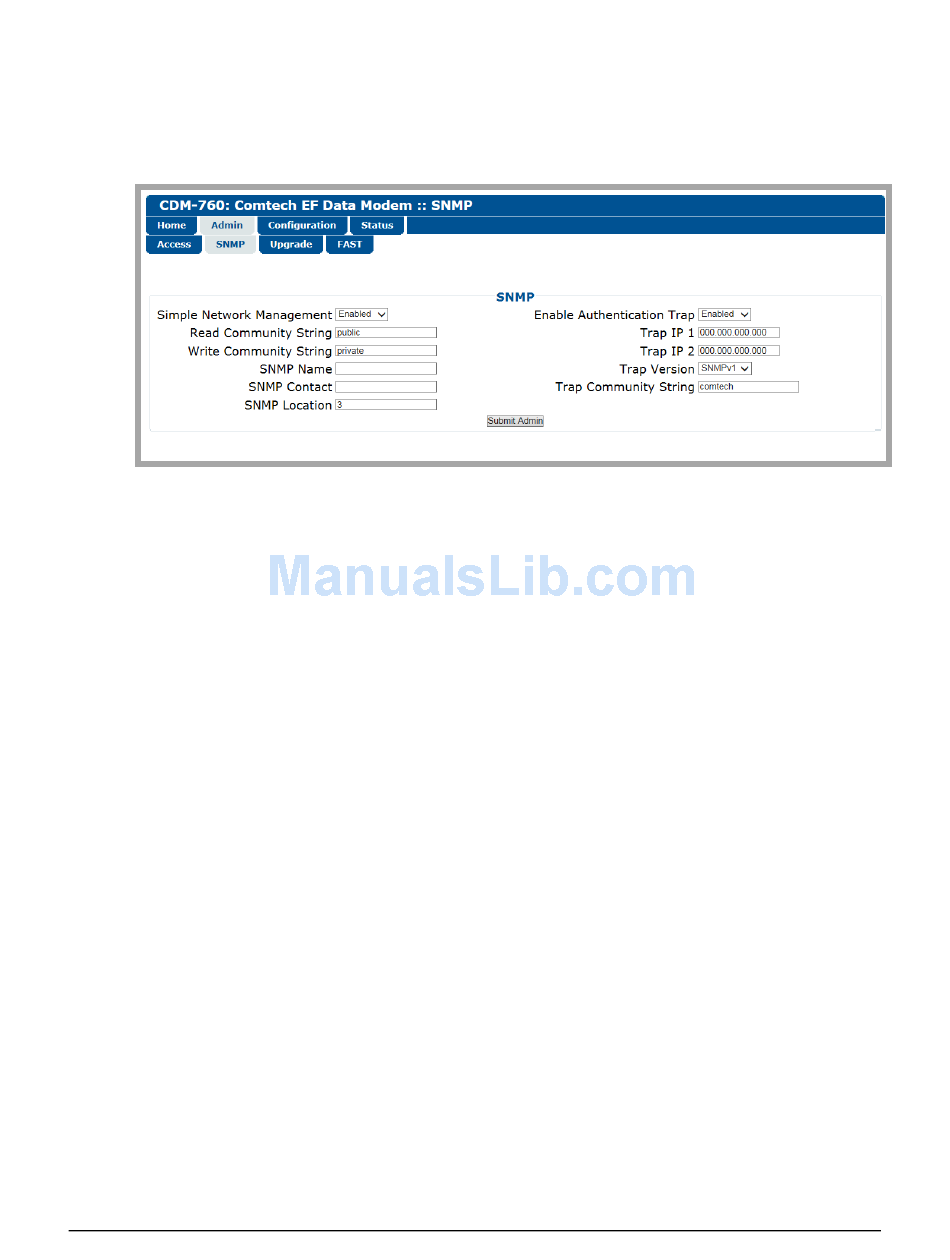

Figure 7-8. Admin | SNMP Page
