Updating Firmware
CDM-760 Advanced High-Speed Trunking Modem
4.2
Get Started: Prepare for the Firmware Download
4.2.1
Required User-supplied Items
You will need a Microsoft Windows-based PC equipped with available serial and Ethernet ports,
a compatible Web browser (e.g., Internet Explorer), and a terminal emulator program (e.g., Tera
Term or HyperTerminal).

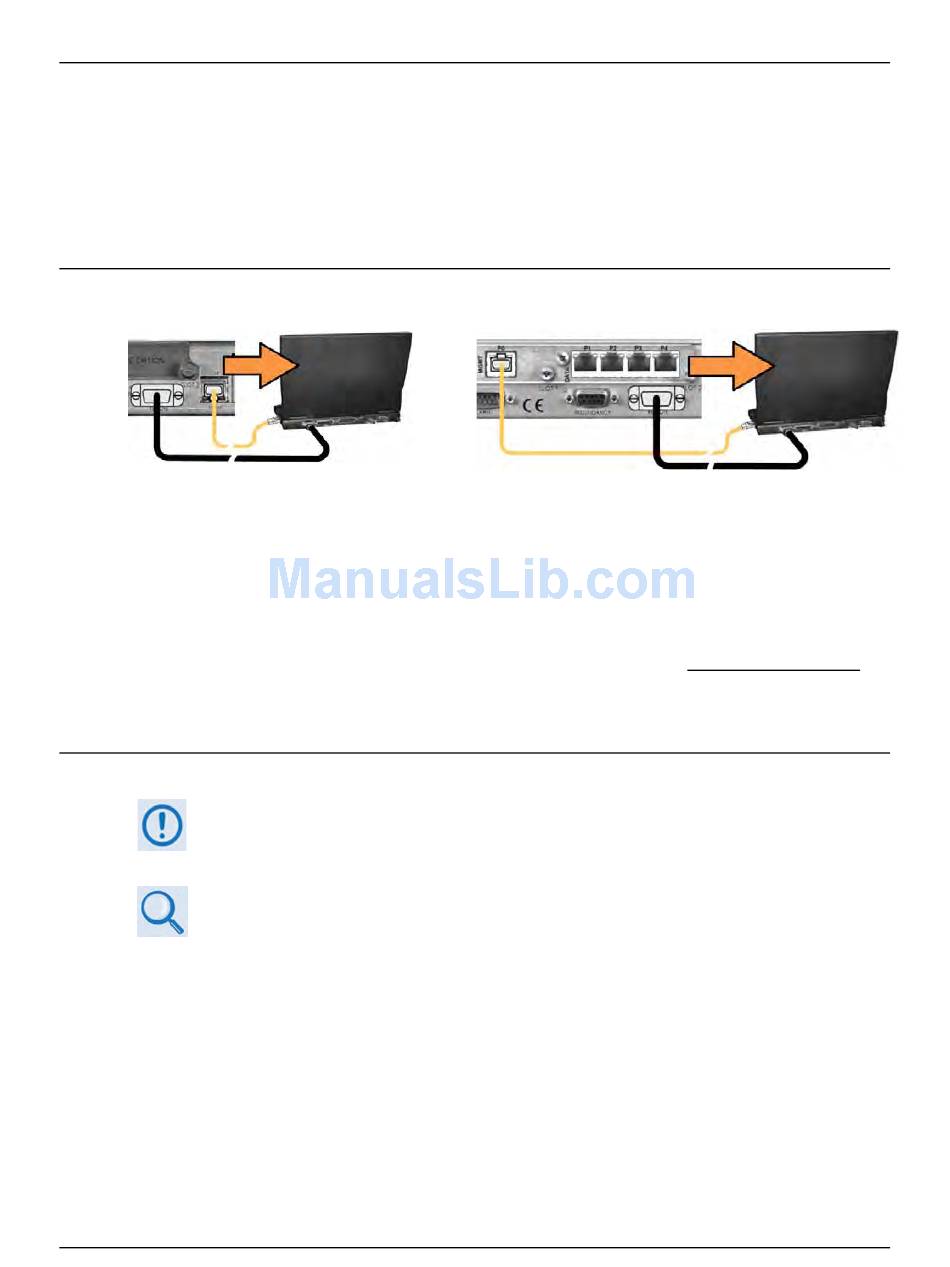

4.2.1.1 CDM-760 to PC Connections
For the SERIAL interface, use a 9-pin serial cable to connect the J3 | REMOTE port to the User PC
serial port.
For the ETHERNET interface, use a CAT5e Ethernet cable to connect the CDM-760 to the User PC
Ethernet port:
•
Use an Ethernet hub, switch, or direct cable connection to connect the CDM-760 rear
panel J4 | MGMT 10/100/1000 Fast Ethernet port to an Ethernet port on the User PC.
•
Alternately, when the optional High-Speed Packet Processor is installed and enabled,
use an Ethernet hub, switch, or direct cable connection to connect the Packet
Processor's P0 | MGMT RJ-45 M&C port to an Ethernet port on the User PC.
4.2.1.2 Configure the Terminal Emulator Program
Be sure your terminal emulator settings match the settings displayed on the
CDM-760 Front Panel SELECT: Configuration → Remote → Remote Control: Serial or
Ser+Ethernet screens.
Read your terminal emulator program user guide or HELP feature for operating and
configuration instructions.
On the User PC – Open the terminal emulator program, and then configure the program's serial
port communication and terminal display operation:
•
Baud Rate = 38400 bps
•
Data Bits = 8
•
Stop bits = 1
•
Parity = NO
•
Local Echo = ON
•
Port Flow Control = NONE
•
Display New Line Rx/Tx = CR
4–3
Revision 4
MN-CDM760
