Ethernet Interface Operation
CDM-760 Advanced High-Speed Trunking Modem
7.4.4.4.6.6

Status | Traffic Statistics | WAN

Use this page to review the activity on the CDM-760 between various FPGAs and the Packet
Processor. These item are used primarily for debugging internal modem routing and traffic flow
issues.
Clear Statistics
• Click [Clear] to clear/reset the WAN statistics buffers.
• Click [Refresh] to update the page with the latest available statistics.
WAN Counters
Item
WAN Tx Frames (packets)
WAN Tx Frames (packets)

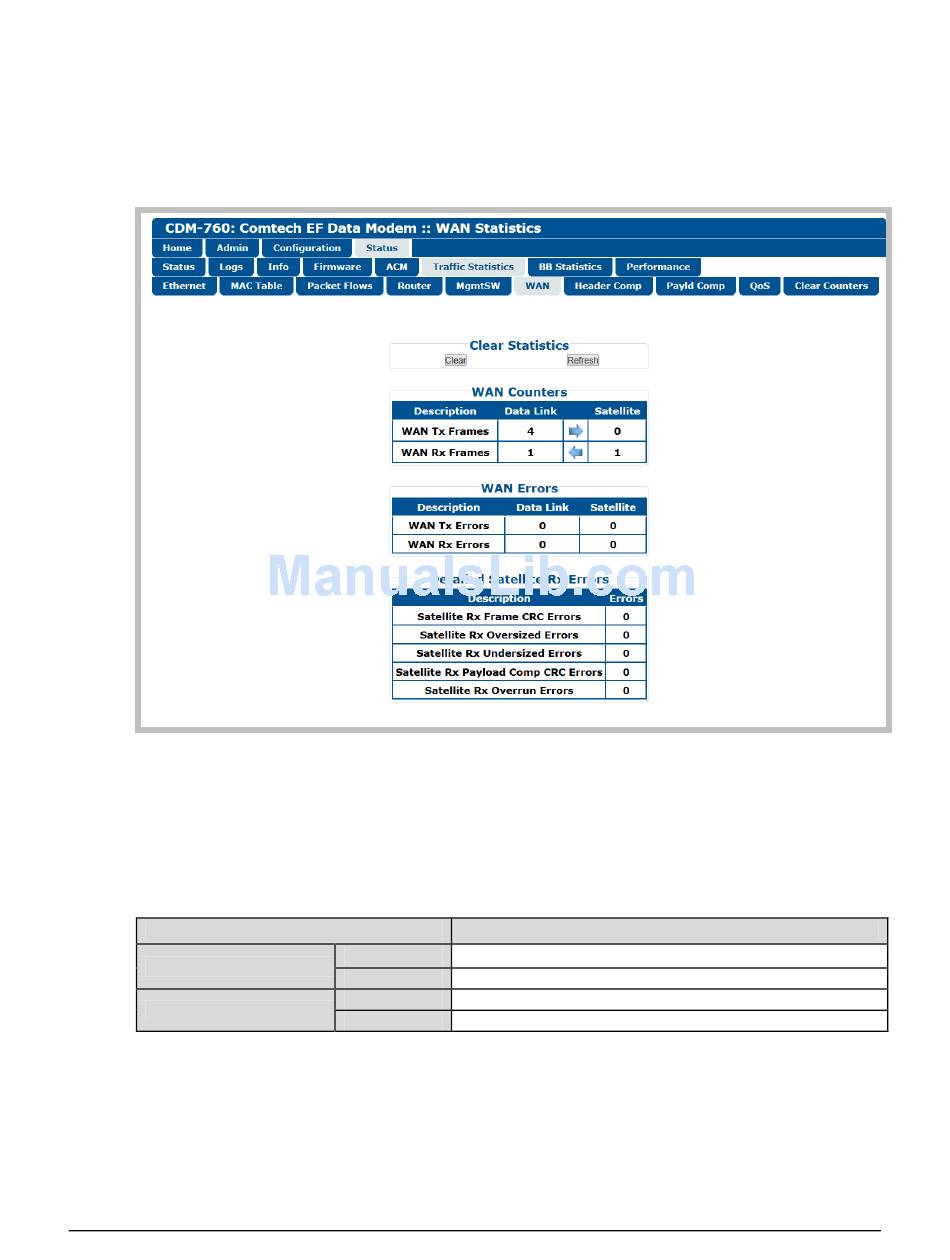

Figure 7-40. Status | Traffic Statistics | WAN Page
Description
Packets from Packet Processor to Packet Processor FPGA.
Data Link
Satellite Packets from Packet Processor FPGA to framer FPGA.
Data Link Packets from Packet Processor FPGA to Packet Processor.
Satellite Packets from framer FPGA to Packet Processor FPGA.
