Appendix L
CDM-760 Advanced High-Speed Trunking Modem
In both approaches, the training procedure is essentially the same. The training procedure starts
by initializing the predistorter to be a pass-through system, i.e. signal S* equals signal S. Then,
the downlink signal S' is time-aligned with the uplink signal such that the difference, created by
the satellite channel, can be monitored. Next, based on minimizing the difference signal an
adaptive inverse nonlinear system is trained by adapting complex-valued predistorter
coefficients. The predistorter in training is positioned following the satellite channel, forming a
so call 'post-inverse' system. Finally, the trained coefficients are relayed internally to the
predistorter.

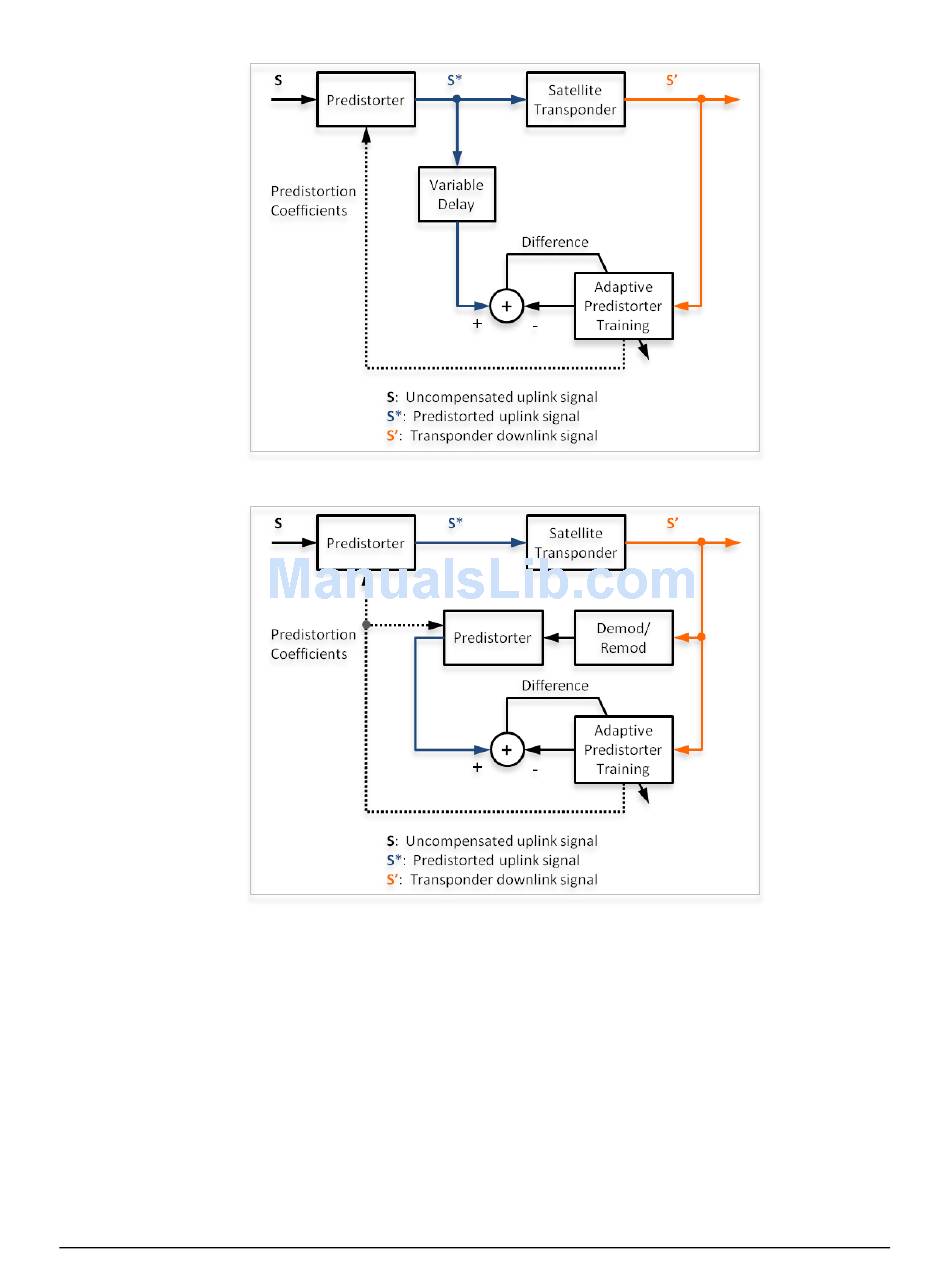

Figure L-5. Indirect Learning – Local Approach
Figure L-6. Indirect Learning – Remote Approach
