CDM-760 Advanced High-Speed Trunking Modem
7.4.4.4.6.5
Status | Traffic Statistics | MgmtSW (Managed Switch)
Use this page to review the overall packet count transmitted and received by the LAN (Managed
Switch DATA ports P1 through P4) and the WAN (P0 | MGMT).
Clear Statistics
•
Click [Clear] to clear/reset the Managed Switch statistics buffers.
•
Click [Refresh] to update the page with the latest available statistics.
Managed Switch Counters
Item
Received Packets
Transmitted Packets
LAN
Receive Errors
Transmit Errors
Received Packets
Transmitted Packets
WAN
Receive Errors
Transmit Errors

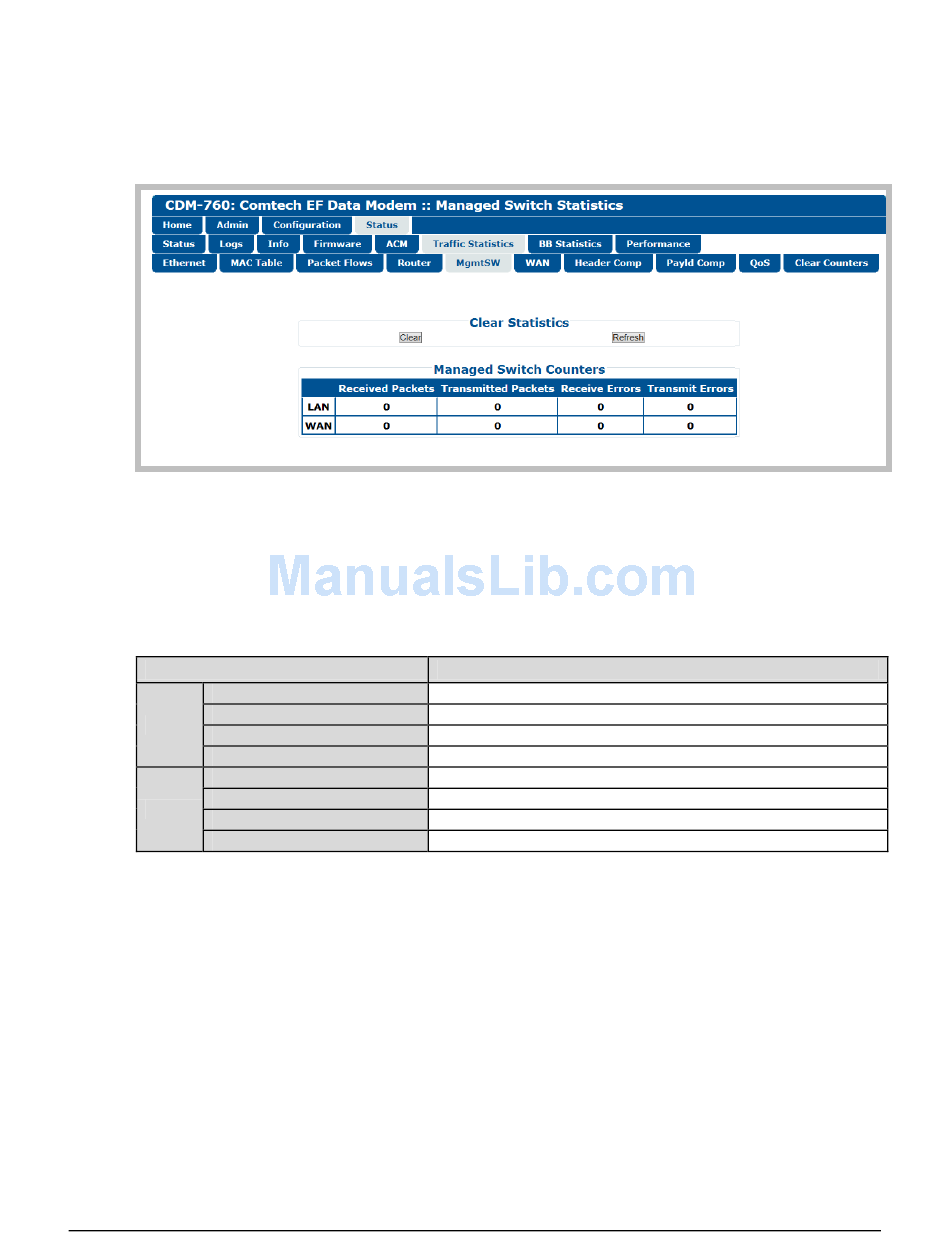

Figure 7-39. Status | Traffic Statistics | MgmtSW Page
Description
Total number of packets from the LAN to ports (P1 – P4).
Total number of packets from ports (P1 – P4) to the LAN.
Total number of packets received on ports (P1 – P4) in error.
Total number of packets sent on (P1 – P4) in error.
Total number of packets received from the WAN.
Total number of packets transmitted to the WAN.
Total number of packets sent over the WAN in error.
Total number of packets sent over the WAN in error.
7–62
Revision 4
MN-CDM760
