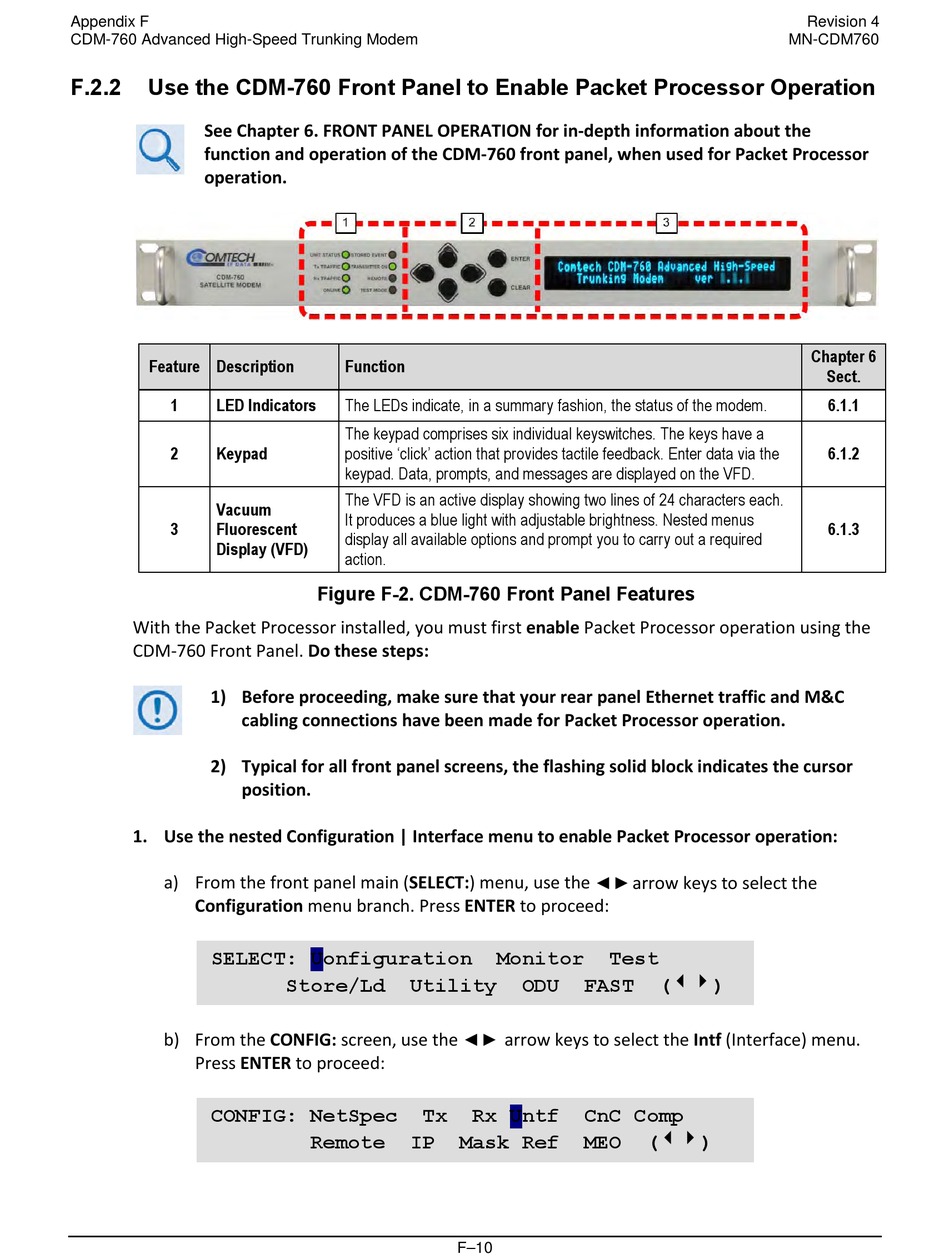

Use The Cdm-760 Front Panel To Enable Packet Processor Operation - Comtech EF Data CDM-760 Installation And Operation Manual

Appendix F
CDM-760 Advanced High-Speed Trunking Modem
F.2.2

Use the CDM-760 Front Panel to Enable Packet Processor Operation

See Chapter 6. FRONT PANEL OPERATION for in-depth information about the
function and operation of the CDM-760 front panel, when used for Packet Processor
operation.
Feature Description
1 LED Indicators
2 Keypad
Vacuum
3 Fluorescent
Display (VFD)
With the Packet Processor installed, you must first enable Packet Processor operation using the
CDM-760 Front Panel. Do these steps:
1) Before proceeding, make sure that your rear panel Ethernet traffic and M&C
cabling connections have been made for Packet Processor operation.
2) Typical for all front panel screens, the flashing solid block indicates the cursor
position.
1. Use the nested Configuration | Interface menu to enable Packet Processor operation:
a) From the front panel main (SELECT:) menu, use the
Configuration menu branch. Press ENTER to proceed:
SELECT: Uonfiguration
b) From the CONFIG: screen, use the
Press ENTER to proceed:
CONFIG: NetSpec
Function
The LEDs indicate, in a summary fashion, the status of the modem.
The keypad comprises six individual keyswitches. The keys have a
positive 'click' action that provides tactile feedback. Enter data via the
keypad. Data, prompts, and messages are displayed on the VFD.
The VFD is an active display showing two lines of 24 characters each.
It produces a blue light with adjustable brightness. Nested menus
display all available options and prompt you to carry out a required
action.
Figure F-2. CDM-760 Front Panel Features
Store/Ld Utility
◄ ►
Tx
Remote IP Mask Ref
F–10
◄ ► arrow keys to select the
Monitor Test
ODU FAST
arrow keys to select the Intf (Interface) menu.
Rx Untf CnC Comp
MEO ()
Revision 4
MN-CDM760
Chapter 6
Sect.
6.1.1
6.1.2
6.1.3
()
