Ethernet Interface Operation
CDM-760 Advanced High-Speed Trunking Modem
7.4.4.2.3
Admin | Upgrade
Beginning with Firmware Version 1.4.1, the Administrator may use this page to manage the
CDM-760 Firmware Upgrade process.
Firmware Upgrade
Do the steps displayed in the Firmware Upgrade section of this page to transfer the extracted
firmware update image ZIP file (available from
Product Support) from the User PC to the modem's Flash memory.
Note that Steps 6 through 8 prompt you to use the Firmware Image Config section of this page
to finalize the process.
Firmware Image Config
•
ReFLASH Status – The messages that display here guide you through the file's PC-to-modem
transfer process.
•
Active Image – This read-only item displays the active firmware image that is loaded upon
power-up/boot up of the unit. Note that the file transfer process overwrites the non-active
firmware image. In order to make that firmware upgrade as the active image load, you must
re-define the Next Reboot Image accordingly.
Next Reboot Image – This read-only item displays the active firmware image – 1 or 2 – that
•
is loaded upon power-up/boot up of the unit.
•
Click [Set Image 1] or [Set Image 2] to specify which firmware image is loaded upon power-
up (bootup) of the unit.
•
Click [Reboot Modem] to reboot the CDM-760. You will need to re-enter your user
credentials to resume use of the HTTP Interface.

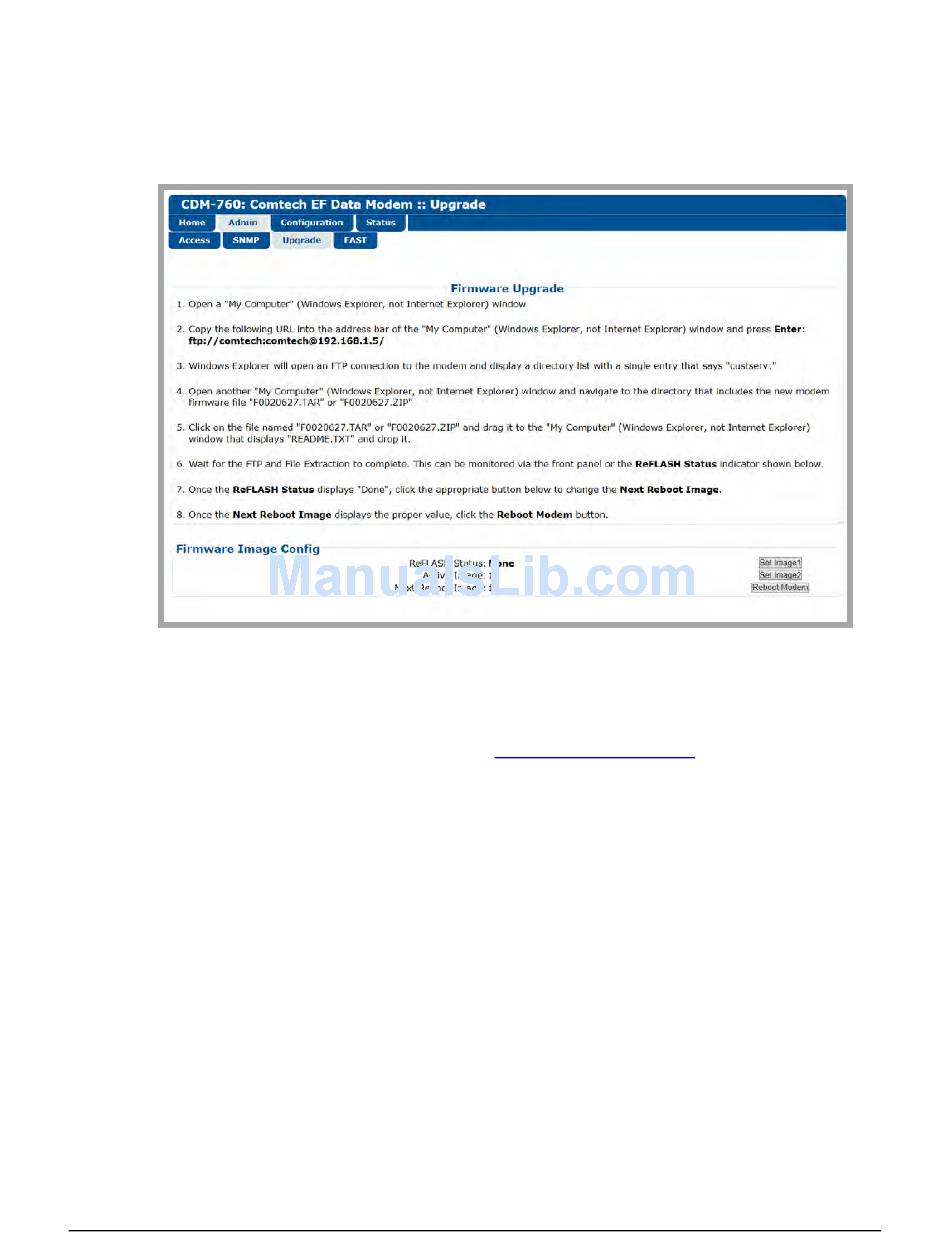

Figure 7-9. Admin | Upgrade Page
www.comtechefdata.com
7–16
Revision 4
MN-CDM760
