Appendix H
CDM-760 Advanced High-Speed Trunking Modem

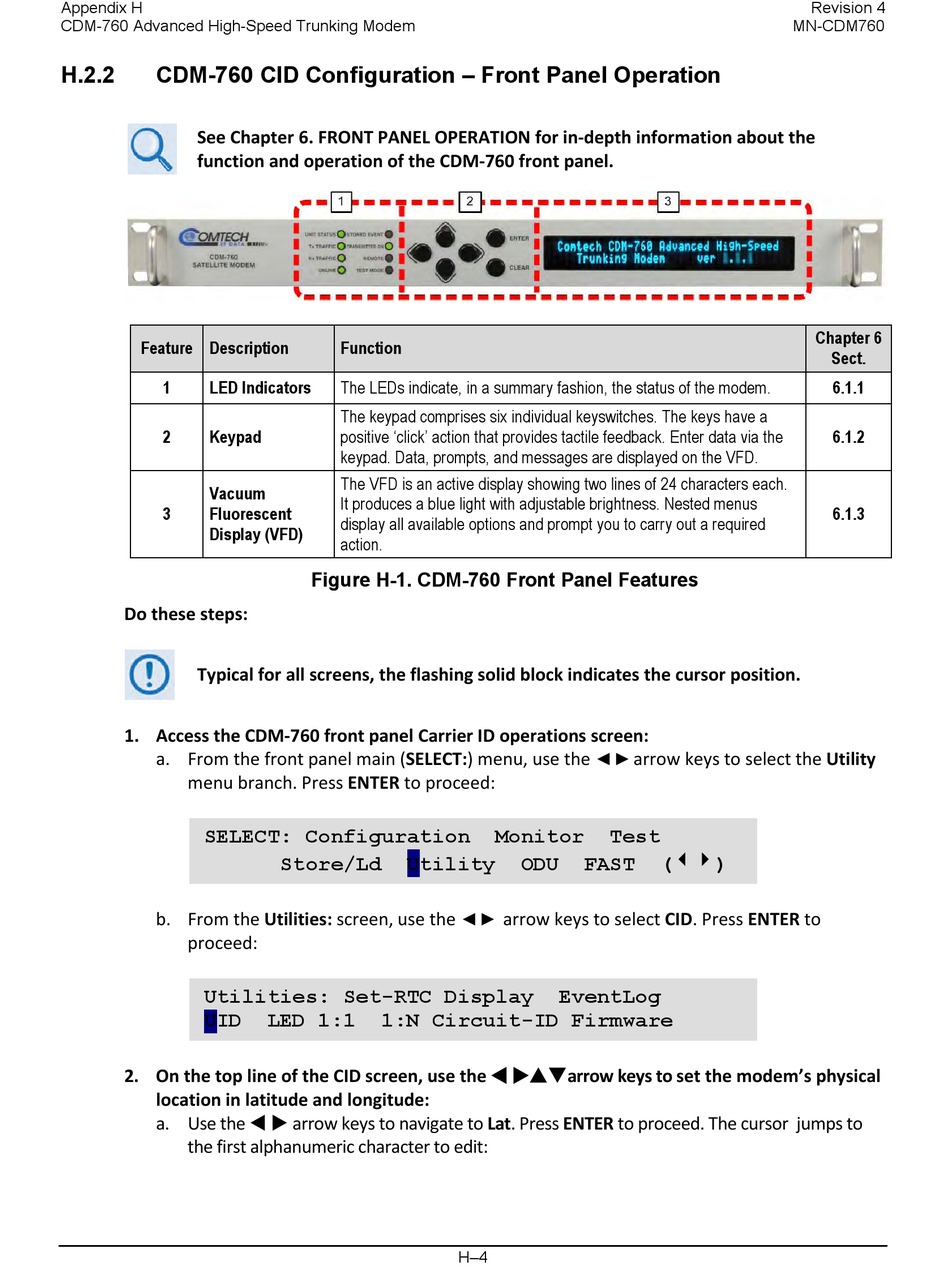

H.2.2 CDM-760 CID Configuration – Front Panel Operation
See Chapter 6. FRONT PANEL OPERATION for in-depth information about the
function and operation of the CDM-760 front panel.
Feature Description
1 LED Indicators
2 Keypad
Vacuum
3 Fluorescent
Display (VFD)
Do these steps:
Typical for all screens, the flashing solid block indicates the cursor position.
1. Access the CDM-760 front panel Carrier ID operations screen:
a. From the front panel main (SELECT:) menu, use the
menu branch. Press ENTER to proceed:
SELECT: Configuration
b. From the Utilities: screen, use the
proceed:
Utilities: Set-RTC Display
UID
2. On the top line of the CID screen, use the  arrow keys to set the modem's physical
location in latitude and longitude:
a. Use the   arrow keys to navigate to Lat. Press ENTER to proceed. The cursor jumps to
the first alphanumeric character to edit:
Function
The LEDs indicate, in a summary fashion, the status of the modem.
The keypad comprises six individual keyswitches. The keys have a
positive 'click' action that provides tactile feedback. Enter data via the
keypad. Data, prompts, and messages are displayed on the VFD.
The VFD is an active display showing two lines of 24 characters each.
It produces a blue light with adjustable brightness. Nested menus
display all available options and prompt you to carry out a required
action.
Figure H-1. CDM-760 Front Panel Features
Store/Ld Utility
LED 1:1 1:N Circuit-ID Firmware
◄ ► arrow keys to select the Utility
Monitor Test
ODU FAST
◄ ► arrow keys to select CID. Press ENTER to
EventLog
H–4
Revision 4
MN-CDM760
Chapter 6
Sect.
6.1.1
6.1.2
6.1.3
()
