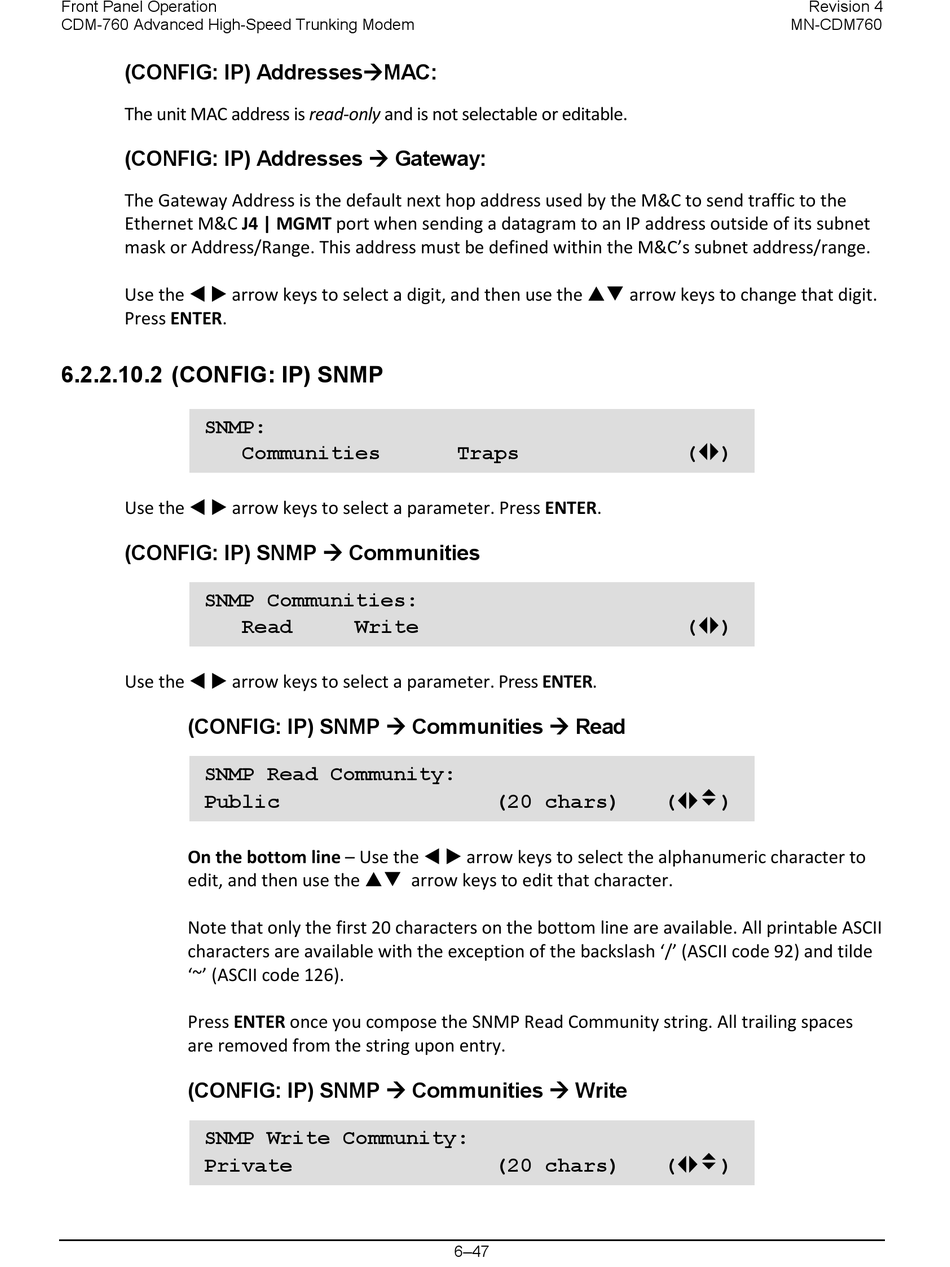

Config: Ip) Snmp - Comtech EF Data CDM-760 Installation And Operation Manual

Front Panel Operation
CDM-760 Advanced High-Speed Trunking Modem
(CONFIG: IP) AddressesMAC:
The unit MAC address is read-only and is not selectable or editable.
(CONFIG: IP) Addresses  Gateway:
The Gateway Address is the default next hop address used by the M&C to send traffic to the
Ethernet M&C J4 | MGMT port when sending a datagram to an IP address outside of its subnet
mask or Address/Range. This address must be defined within the M&C's subnet address/range.
Use the   arrow keys to select a digit, and then use the  arrow keys to change that digit.
Press ENTER.

6.2.2.10.2 (CONFIG: IP) SNMP

SNMP:
Use the   arrow keys to select a parameter. Press ENTER.
(CONFIG: IP) SNMP  Communities
SNMP Communities:
Use the   arrow keys to select a parameter. Press ENTER.
(CONFIG: IP) SNMP  Communities  Read
SNMP Read Community:
Public
On the bottom line – Use the   arrow keys to select the alphanumeric character to
edit, and then use the  arrow keys to edit that character.
Note that only the first 20 characters on the bottom line are available. All printable ASCII
characters are available with the exception of the backslash '/' (ASCII code 92) and tilde
'~' (ASCII code 126).
Press ENTER once you compose the SNMP Read Community string. All trailing spaces
are removed from the string upon entry.
(CONFIG: IP) SNMP  Communities  Write
SNMP Write Community:
Private
Communities
Read Write
Traps
(20 chars)
(20 chars)
6–47
Revision 4
MN-CDM760
()
()
()
()
