CDM-750 Advanced High-Speed Trunking Modem
Ethernet-based Remote Product Management
6.5.4.2.2

Admin | SNMP

•
•
The Administrator must use this page to manage the CDM‐750 SNMP (Simple Network
Management Protocol) settings.
SNMP
•
Use the Simple Network Management drop‐down list to select Enabled or Disabled.
•
Enter a Read Community string. This string can be any combination of characters and a
length of 0 to 20 characters. The factory default SNMP Read Community string is public.
•
Enter a Write Community string. This string can be any combination of characters and a
length of 0 to 20 characters. The factory default SNMP Write Community string is private.
•
Enter an SNMP Contact, Name, and Location. Each string can be any combination of
characters and a length of 0 to 20 characters.
•
Use the Enable Authentication Trap drop‐down list to select Enabled or Disabled.
•
Enter the Trap IP 1 and Trap IP 2 addresses, in the form XXX.XXX.XXX.XXX, for the computer
that is to receive the traps generated by the CDM‐750.
•
Use the Trap Version drop‐down list to select SNMPv1 or SNMPv2.
•
Enter a Trap Community String. This string can be any combination of characters and a
length of 0 to 20 characters. The factory default SNMP Write Community string is comtech.
Click [Submit Admin] to save these settings.
Sect. 5.2.2.9.2 (CONFIG) IP Config: SNMP in Chapter 5. FRONT PANEL
OPERATION
Sect. 6.3 SNMP INTERFACE

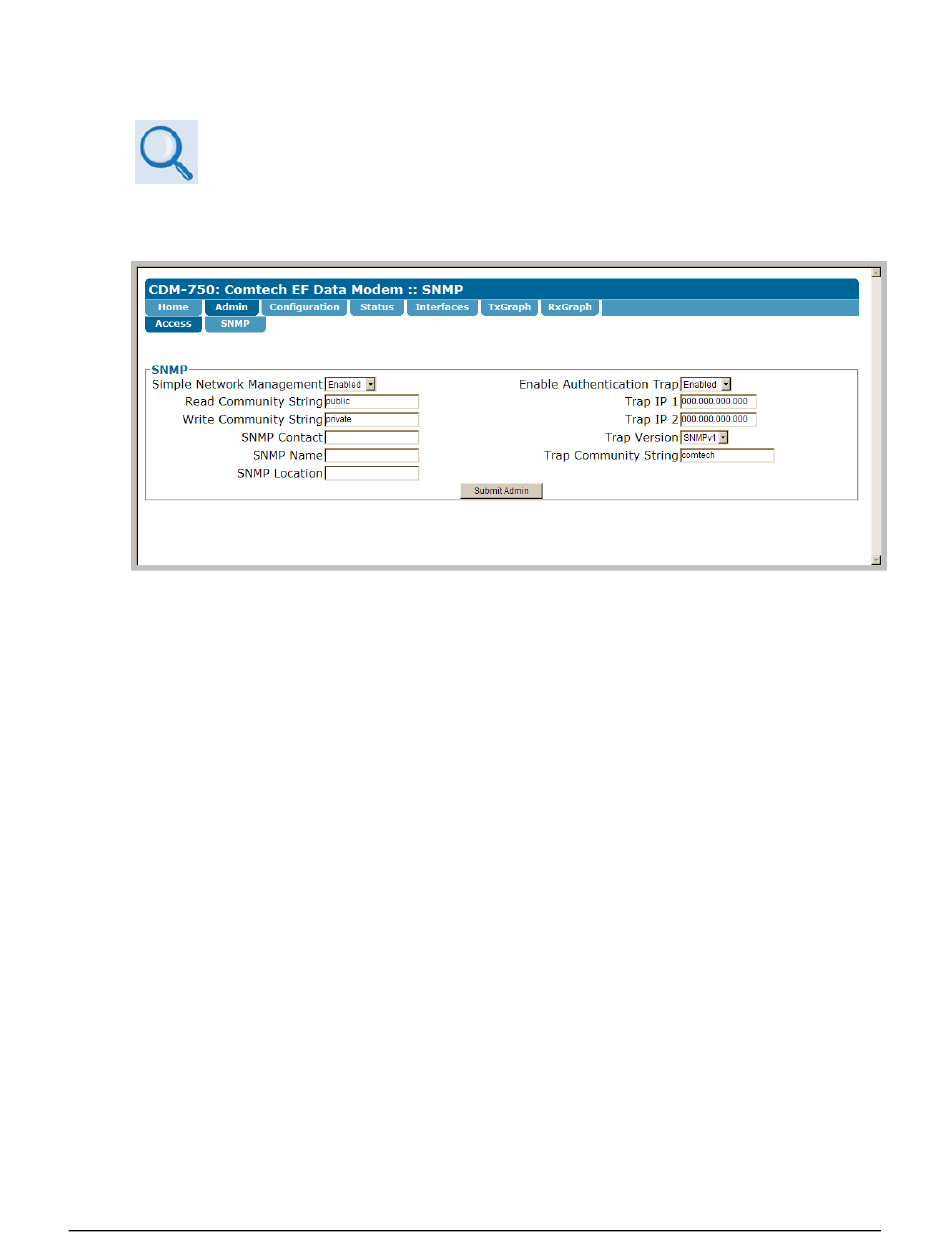

Figure 6-4. Admin | SNMP page
