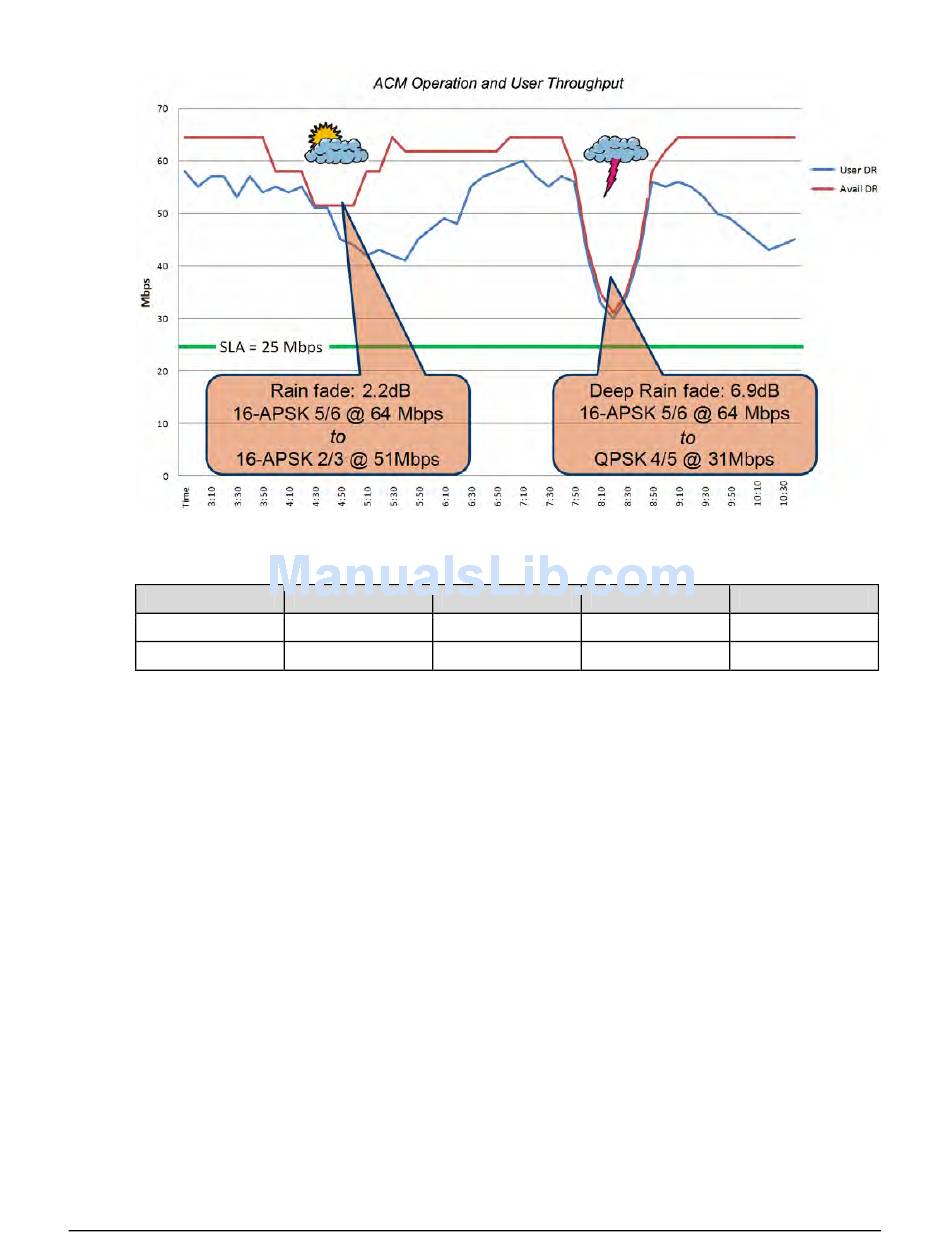

Figure G-2. User Throughput vs. Time and Fades

Table G-3. Turning Margin into Additional Capacity

Parameter SLA Clear 2.2dB Fade 6.9dB Fade
Data Rate 25 Mbps 64 Mbps 51 Mbps 31 Mbps
ModCod QPSK 3/5 16-APSK 5/6 16-APSK 2/3 QPSK 4/5
