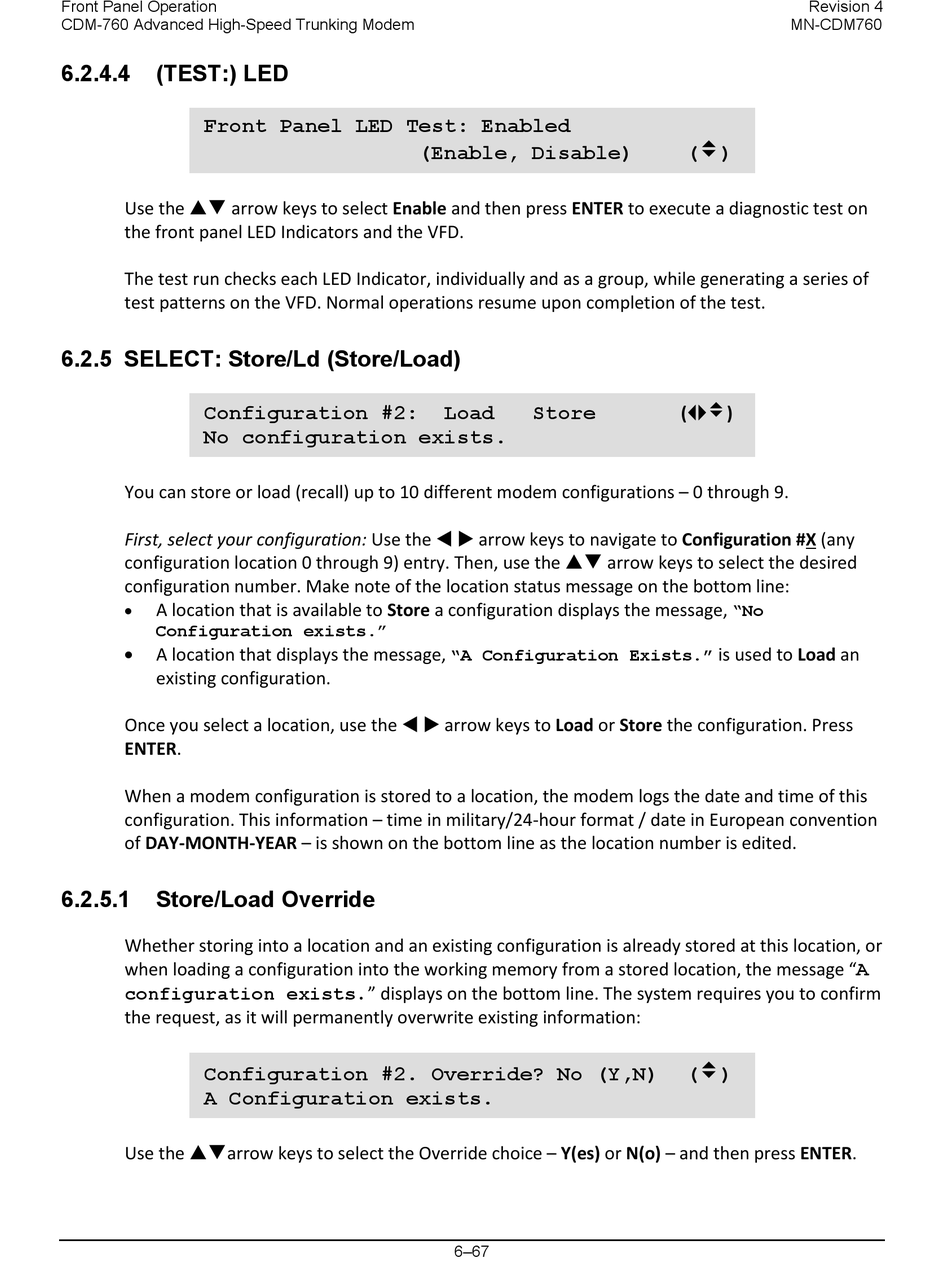

6.2.4.4

(TEST:) LED

Front Panel LED Test: Enabled
Use the  arrow keys to select Enable and then press ENTER to execute a diagnostic test on
the front panel LED Indicators and the VFD.
The test run checks each LED Indicator, individually and as a group, while generating a series of
test patterns on the VFD. Normal operations resume upon completion of the test.

6.2.5 SELECT: Store/Ld (Store/Load)

Configuration #2:
No configuration exists.
You can store or load (recall) up to 10 different modem configurations – 0 through 9.
First, select your configuration: Use the   arrow keys to navigate to Configuration #X (any
configuration location 0 through 9) entry. Then, use the  arrow keys to select the desired
configuration number. Make note of the location status message on the bottom line:
A location that is available to Store a configuration displays the message,
•
Configuration exists."
• A location that displays the message,
existing configuration.
Once you select a location, use the   arrow keys to Load or Store the configuration. Press
ENTER.
When a modem configuration is stored to a location, the modem logs the date and time of this
configuration. This information – time in military/24-hour format / date in European convention
of DAY-MONTH-YEAR – is shown on the bottom line as the location number is edited.
6.2.5.1

Store/Load Override

Whether storing into a location and an existing configuration is already stored at this location, or
when loading a configuration into the working memory from a stored location, the message "A
configuration exists." displays on the bottom line. The system requires you to confirm
the request, as it will permanently overwrite existing information:
Configuration #2. Override? No (Y,N)
A Configuration exists.
Use the arrow keys to select the Override choice – Y(es) or N(o) – and then press ENTER.
(Enable, Disable)
Load Store
"A Configuration Exists."
