Ethernet Interface Operation
CDM-760 Advanced High-Speed Trunking Modem
7.4.4.3.8

Configuration | Test

See Chapter 6. FRONT PANEL OPERATION for detailed information about the Bit
Error Rate Test (BERT) configuration and operation parameter controls provided on
this page:
Web Page Section
Unit
BERT Config
BERT Monitor
Unit
Use the drop-down list to select the desired Test Mode.
Click [Submit] to save.
BERT Config
Use the drop-down lists to turn the Tx BERT On or Off, and to set the desired test pattern (when
On).
Click [Submit] to save.
BERT Monitor
Click [Insert Error] or [Restart BERT] to alter the ongoing BERT.

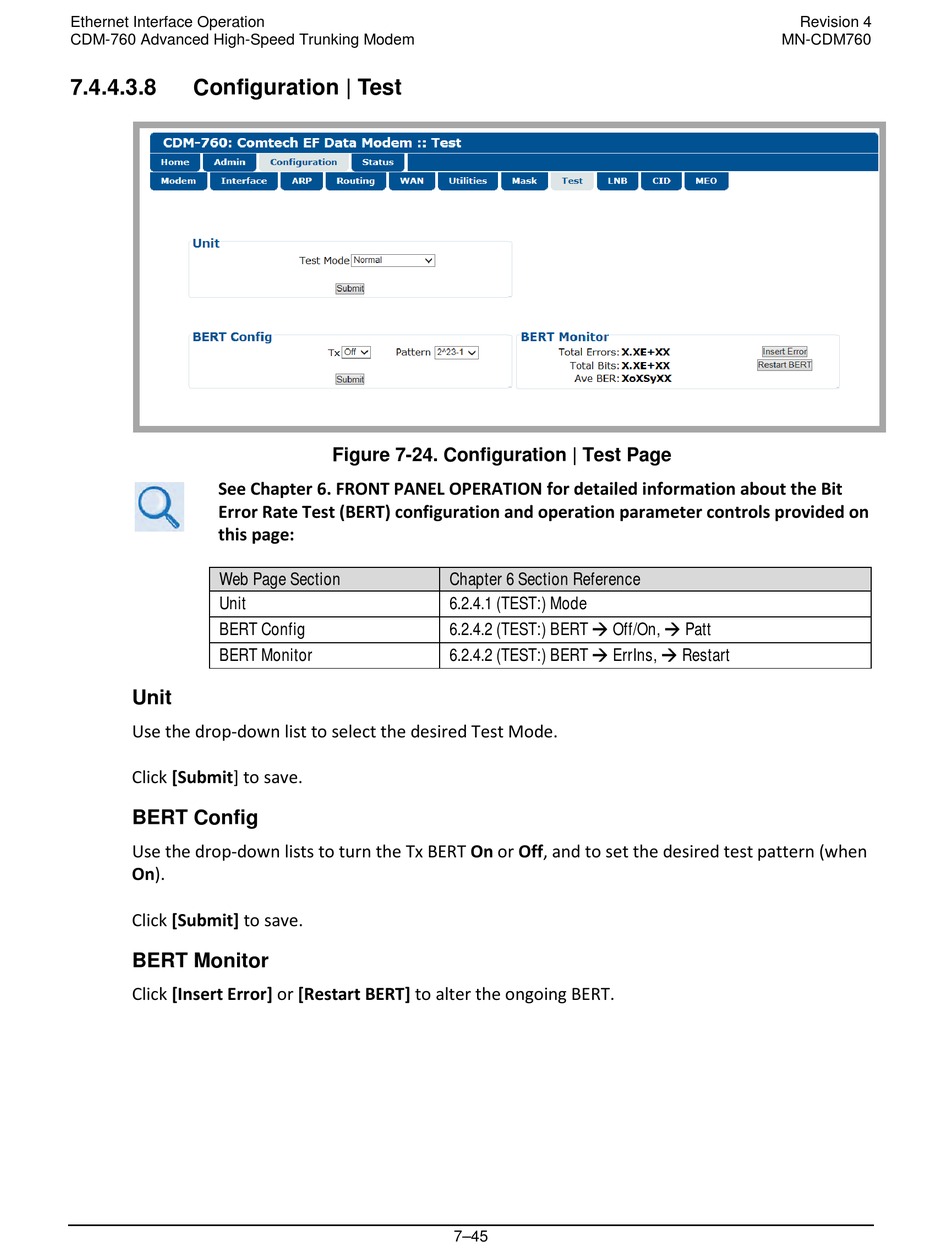

Figure 7-24. Configuration | Test Page
Chapter 6 Section Reference
6.2.4.1 (TEST:) Mode
6.2.4.2 (TEST:) BERT  Off/On,  Patt
6.2.4.2 (TEST:) BERT  ErrIns,  Restart
7–45
Revision 4
MN-CDM760
