Front Panel Operation
CDM-760 Advanced High-Speed Trunking Modem
(Monitor: Stats) IP  Clr (Clear Statistics Buffer)
Use the  arrow keys to select Y (Yes) to clear the IP statistics buffer. The default is N (No).
Press ENTER to clear the buffer, or press CLEAR to back out of the command and return to the
previous menu.

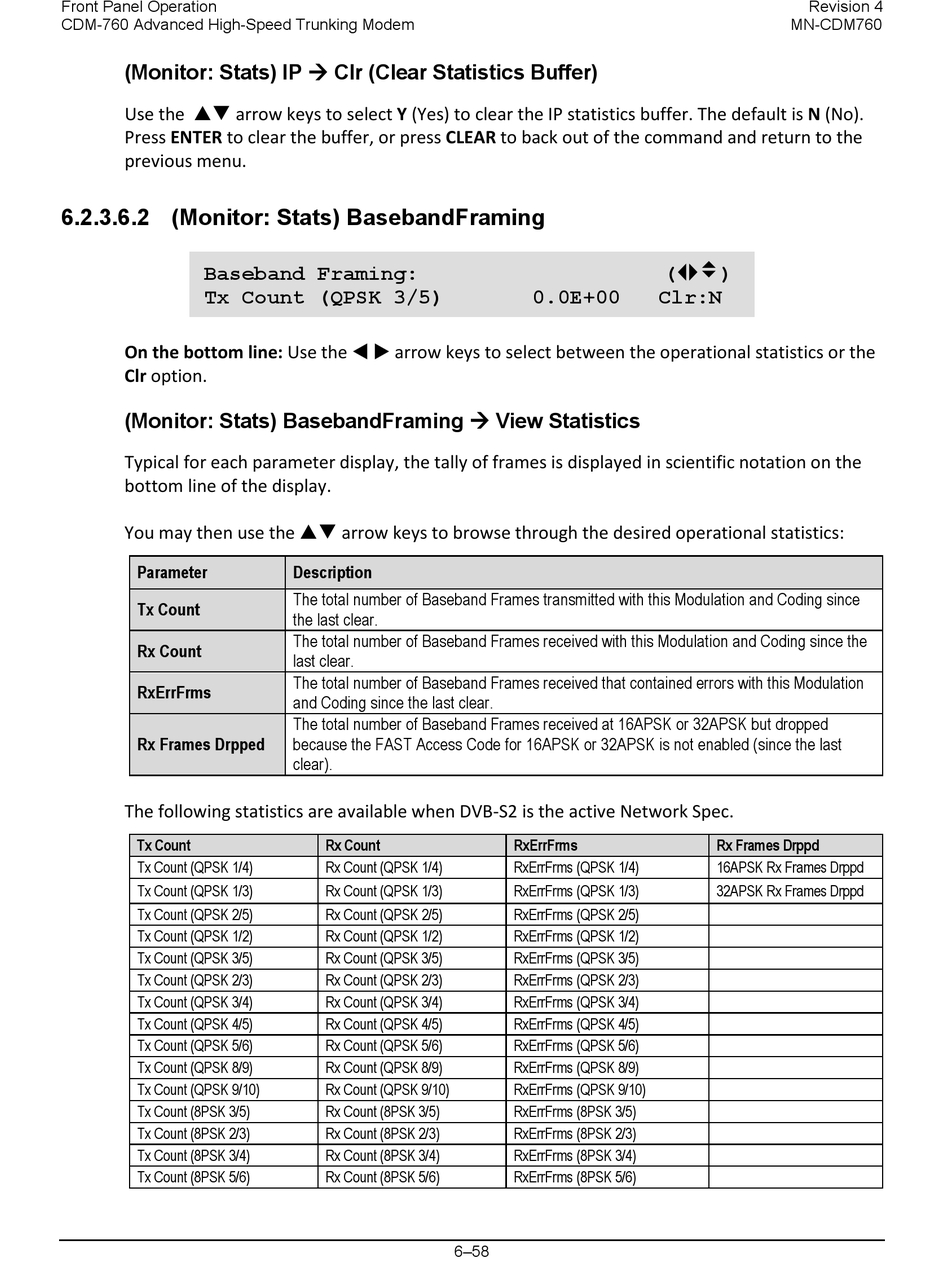

6.2.3.6.2 (Monitor: Stats) BasebandFraming

Baseband Framing:
Tx Count (QPSK 3/5)
On the bottom line: Use the   arrow keys to select between the operational statistics or the
Clr option.
(Monitor: Stats) BasebandFraming  View Statistics
Typical for each parameter display, the tally of frames is displayed in scientific notation on the
bottom line of the display.
You may then use the  arrow keys to browse through the desired operational statistics:
Parameter
Tx Count
Rx Count
RxErrFrms
Rx Frames Drpped
The following statistics are available when DVB-S2 is the active Network Spec.
Tx Count
Tx Count (QPSK 1/4)
Tx Count (QPSK 1/3)
Tx Count (QPSK 2/5)
Tx Count (QPSK 1/2)
Tx Count (QPSK 3/5)
Tx Count (QPSK 2/3)
Tx Count (QPSK 3/4)
Tx Count (QPSK 4/5)
Tx Count (QPSK 5/6)
Tx Count (QPSK 8/9)
Tx Count (QPSK 9/10)
Tx Count (8PSK 3/5)
Tx Count (8PSK 2/3)
Tx Count (8PSK 3/4)
Tx Count (8PSK 5/6)
Description
The total number of Baseband Frames transmitted with this Modulation and Coding since
the last clear.
The total number of Baseband Frames received with this Modulation and Coding since the
last clear.
The total number of Baseband Frames received that contained errors with this Modulation
and Coding since the last clear.
The total number of Baseband Frames received at 16APSK or 32APSK but dropped
because the FAST Access Code for 16APSK or 32APSK is not enabled (since the last
clear).
Rx Count
Rx Count (QPSK 1/4)
Rx Count (QPSK 1/3)
Rx Count (QPSK 2/5)
Rx Count (QPSK 1/2)
Rx Count (QPSK 3/5)
Rx Count (QPSK 2/3)
Rx Count (QPSK 3/4)
Rx Count (QPSK 4/5)
Rx Count (QPSK 5/6)
Rx Count (QPSK 8/9)
Rx Count (QPSK 9/10)
Rx Count (8PSK 3/5)
Rx Count (8PSK 2/3)
Rx Count (8PSK 3/4)
Rx Count (8PSK 5/6)
6–58
()
0.0E+00 Clr:N
RxErrFrms
RxErrFrms (QPSK 1/4)
RxErrFrms (QPSK 1/3)
RxErrFrms (QPSK 2/5)
RxErrFrms (QPSK 1/2)
RxErrFrms (QPSK 3/5)
RxErrFrms (QPSK 2/3)
RxErrFrms (QPSK 3/4)
RxErrFrms (QPSK 4/5)
RxErrFrms (QPSK 5/6)
RxErrFrms (QPSK 8/9)
RxErrFrms (QPSK 9/10)
RxErrFrms (8PSK 3/5)
RxErrFrms (8PSK 2/3)
RxErrFrms (8PSK 3/4)
RxErrFrms (8PSK 5/6)
Revision 4
MN-CDM760
Rx Frames Drppd
16APSK Rx Frames Drppd
32APSK Rx Frames Drppd
